Tektronix VM700A User Manual

Section 2 - Installation and Operation
2-2
VM700A Option 01 (NTSC) & Option 11 (PAL) User Manual
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
ÎÎÎÎ
CAUTION
TO AVOID
ELECTRICAL SHOCK,
POWER CORD
PROTECTIVE GROUND
MUST BE CONNECTED
TO EARTH GROUND
400 VA MAX
44 - 68 HZ
REPLACE
FUSE AS
SPECIFIED
ÎÎ
LINE
VOLTAGE
SETTING
FUSE
RATING
250V
115V
(90 - 132V)
230V
180 - 250V)
6A S
3A S
FUSE
1
0
O
N
OFF
LINE SELECTOR
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

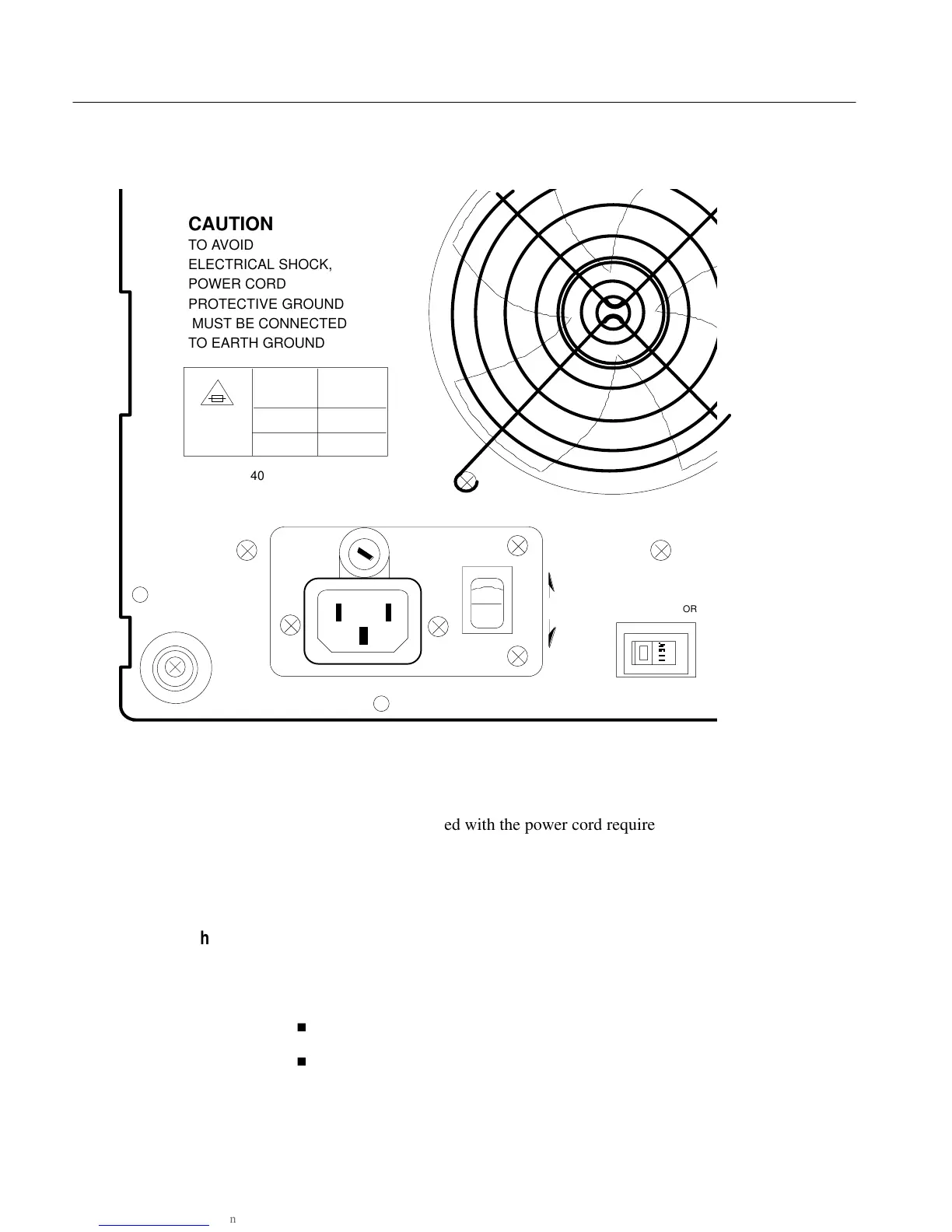

Figure 2-1: Rear-panel fuse, power connector, ON/OFF switch and Line Selector
Instruments are shipped with the power cord required for the country of
destination. Available power-cord option information is given in Section 1,
Introduction and Specification, of this manual. Contact your Tektronix represen-
tative or local Tektronix field office for additional power-cord information.
The VM700A is shipped from the factory with its touch screen fully calibrated.
Although it will seldom be necessary, the touch screen can easily be recalibrated.
To calibrate the touch screen:
H Switch off power to the VM700A at the front panel.
H Press and hold the Configure button and switch the power back on.
Calibrating the Touch
Screen
