Tektronix WFM6120 - Figure 2-1: Main Block Diagram

Tektronix WFM6120
95 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Theory of Operation

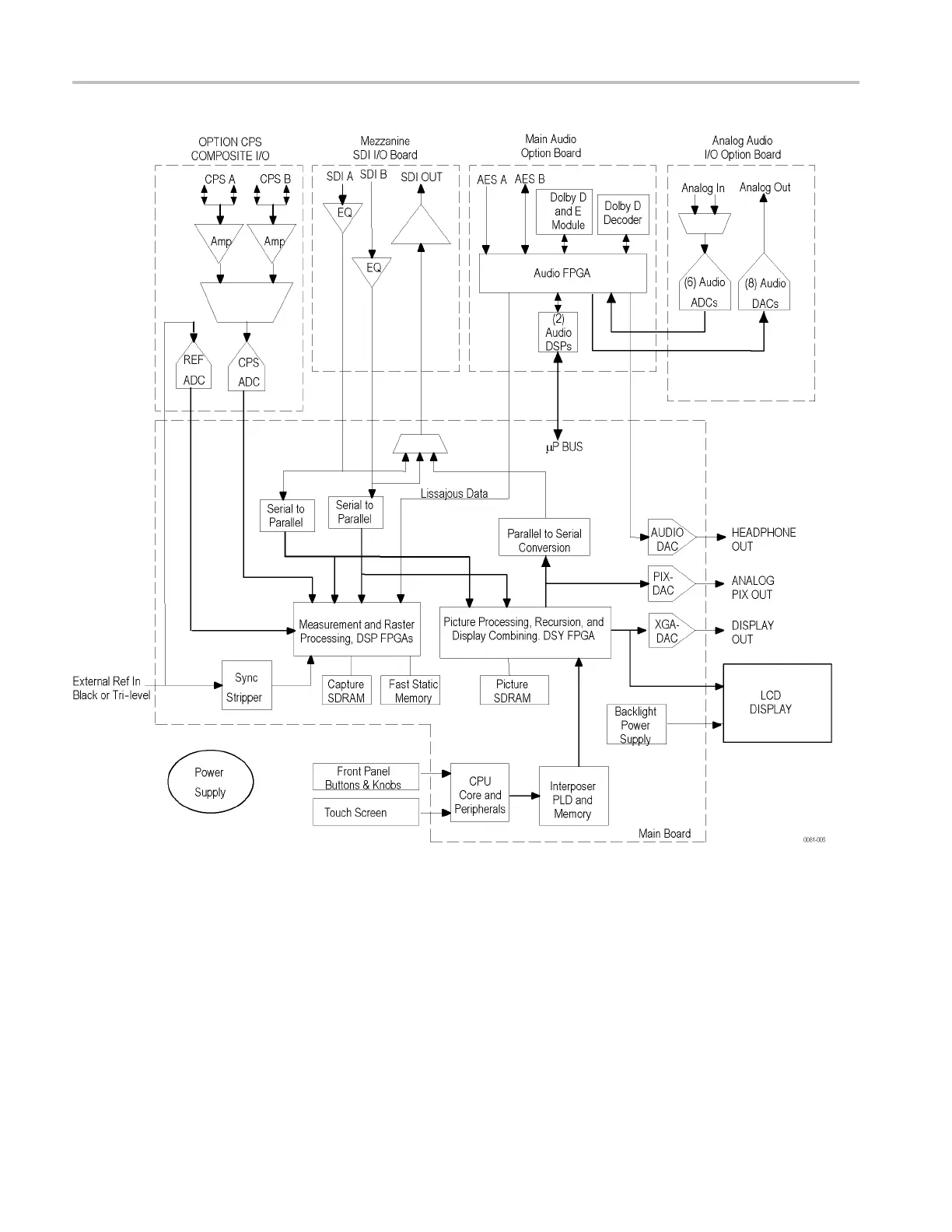

Figure 2-1: Main block diagram
2–2 WFM6120, WFM7020, and WFM7120 Waveform Monitors Service Manual
