Theory of Operat ion

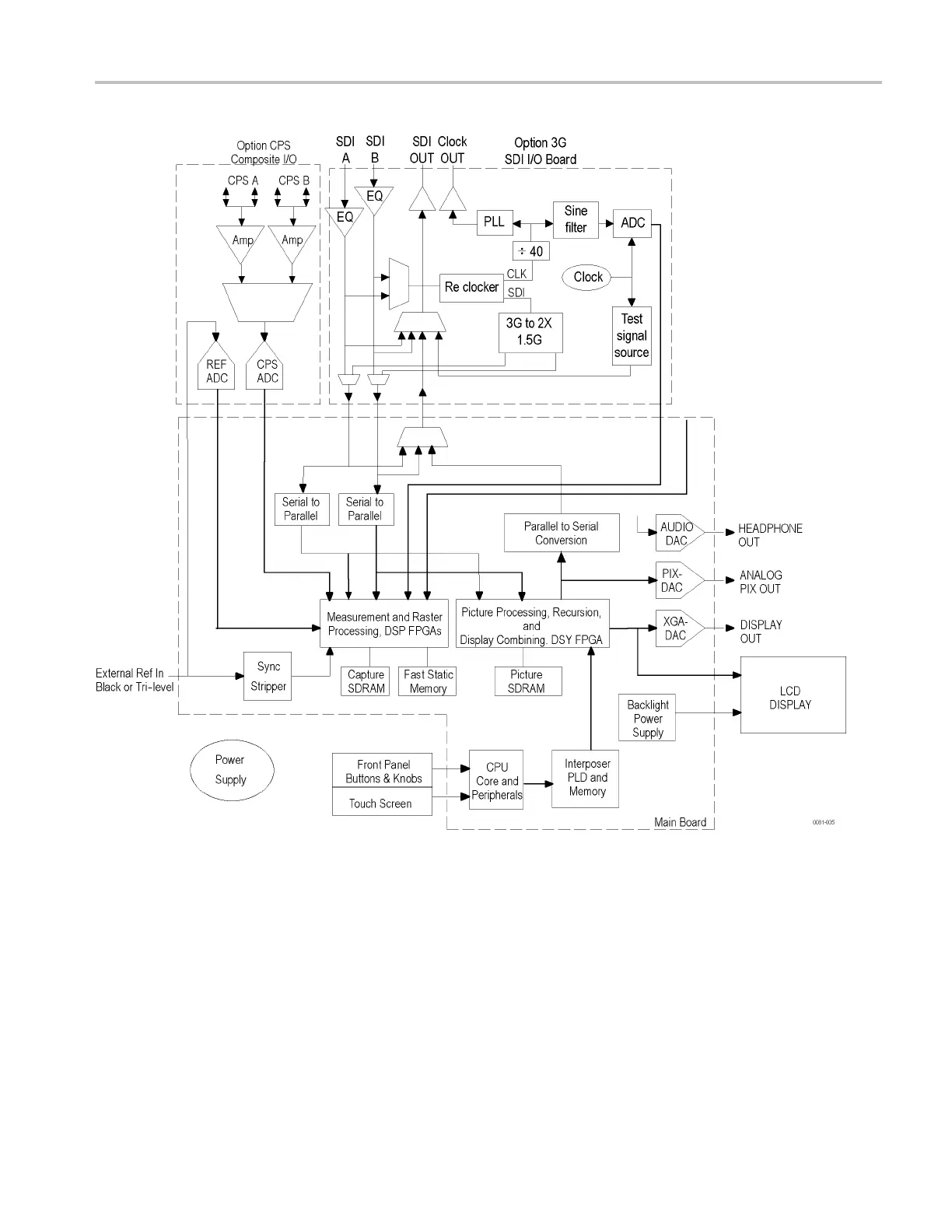

Figure 2-3: Option 3G/JIT block diagram
WFM6120, WFM7020, and WFM7120 Waveform Monitors Service Manual 2–9
