Tektronix WFM6120 Service Manual

Replaceable Parts
Table 5-5: Repl
aceable parts list (See Figure 5-5.)
Fig. &
index
number
Tektronix par
t
number
Serial no.
effective
Serial no.
discont’d Qty Name & description
5-5
ANALOG AUDIO BREAKOUT CABLE Note: Optional Accessory
-1 012-1658-00 1
CABLE ASSEMBLY; ANALOG/AUDIO BREAKOUT
-2 200-4804-00 1
COVER; SHIELD,ELEC CONN,37 POS DSUB,ZINC
-3 131-0422-00 1
CONN,DSUB; SLDR CUP/PNL,;MALE,STR,37 POS,0.112 CTR,0.186 H X
0.126 TAIL,0.125 DIA THRU MTG

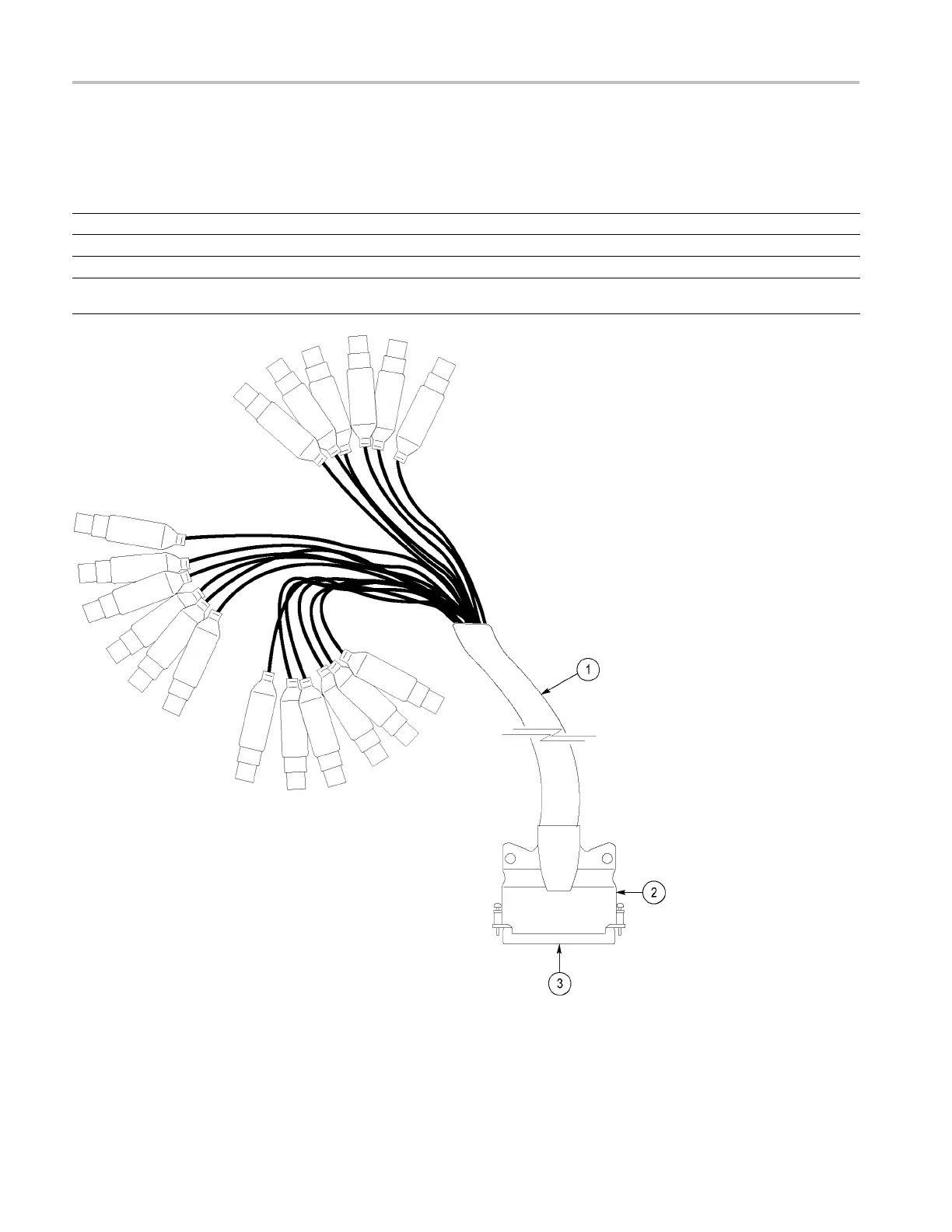

Figure 5-5: Analog audio breakout cable assembly
5–12 WFM6120, WFM7020, and WFM7120 Waveform Monitors Service Manual
