Replaceable Parts

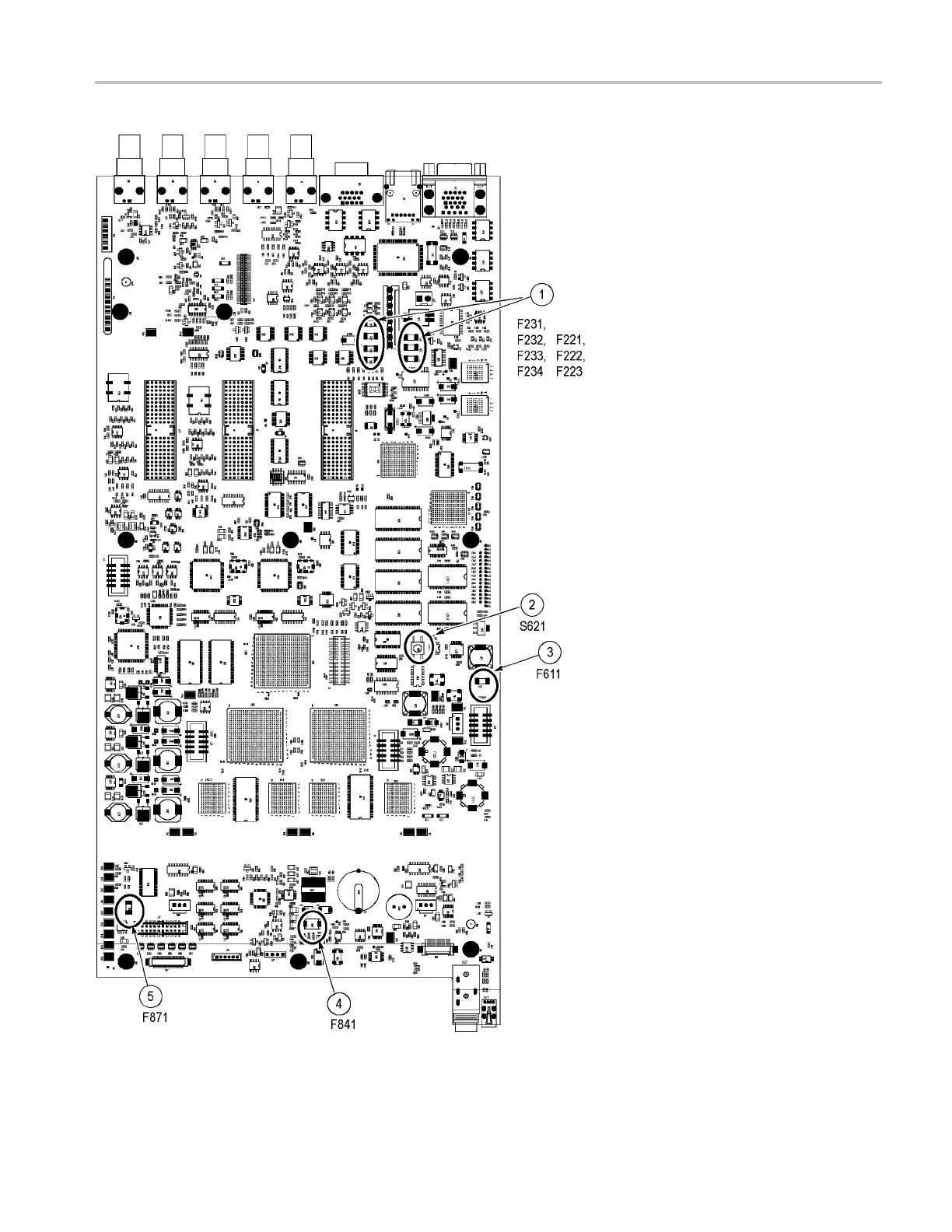

Figure 5-4: Main board replaceable components
WFM6120, WFM7020, and WFM7120 Waveform Monitors Service Manual 5–11
