17.3.1 Interfaces

In the WAN->Leased Line->Interfaces menu, a list of all is displayed. Automatic genera-

tion requires the corresponding ISDN interface to be configured.

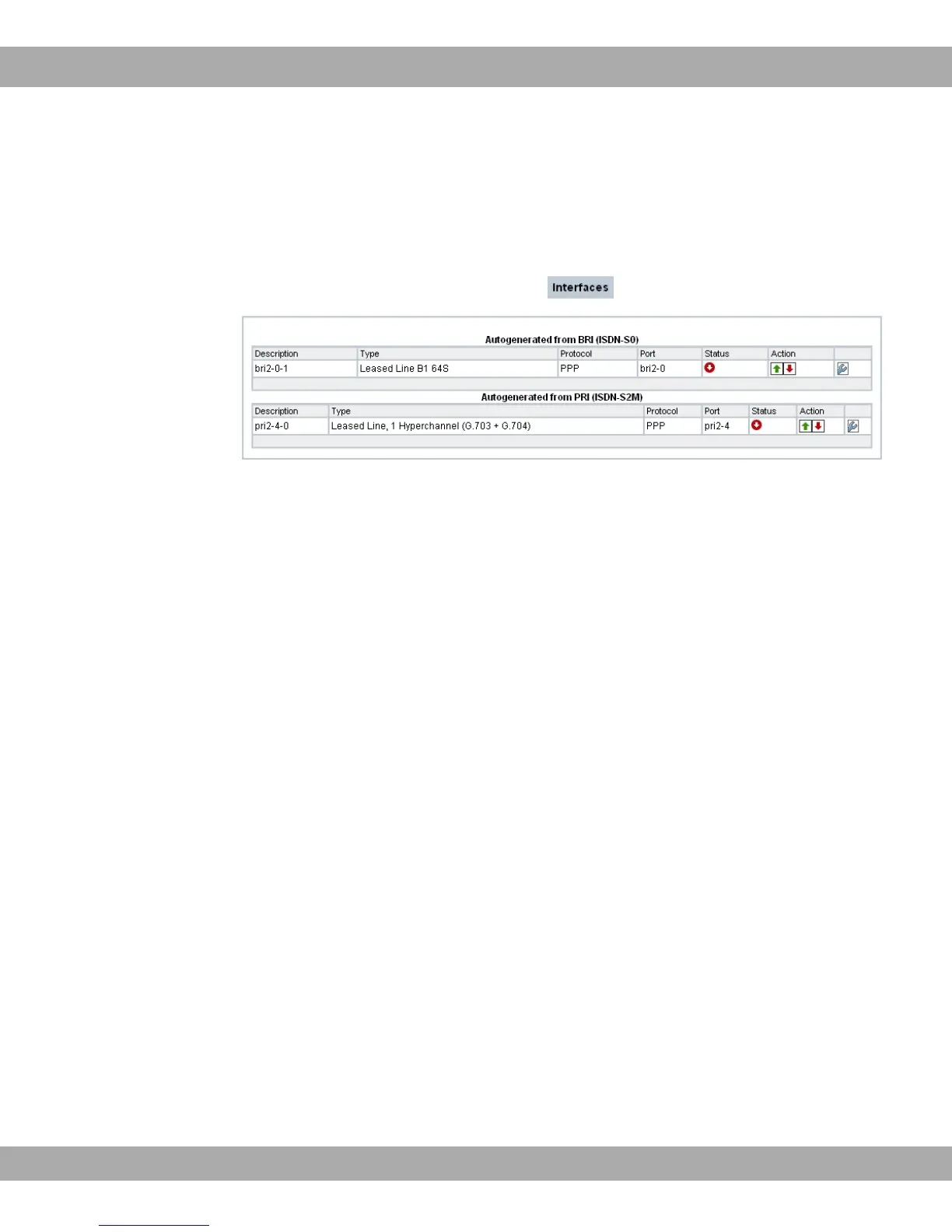

Fig. 125: WAN->Leased Line->Interfaces

17 WAN Teldat GmbH

316 bintec Rxxx2/RTxxx2
