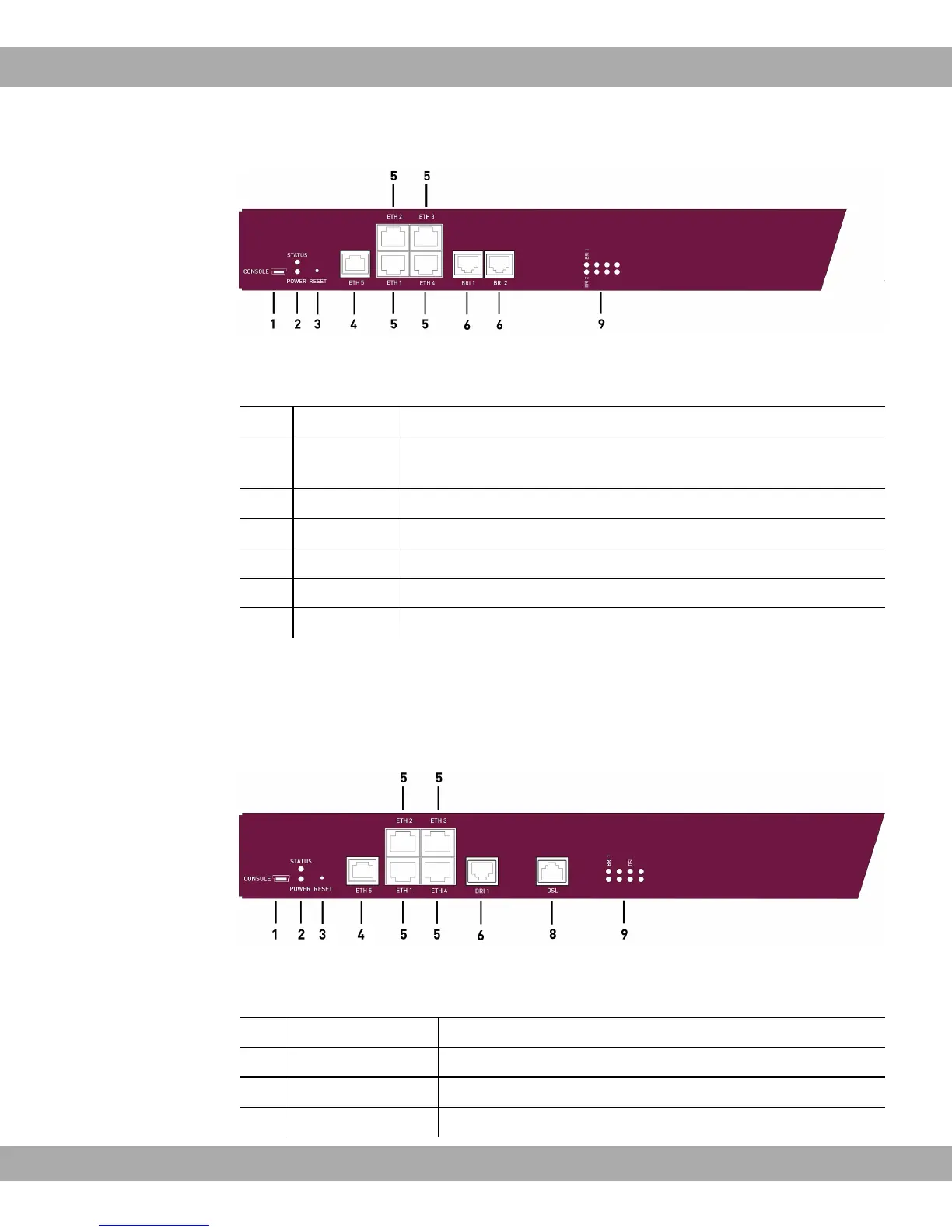

Fig. 6: Front of bintec RT1202
Front of bintec RT1202
1 CONSOLE Serial interface
2 POWER /
STATUS
LED display for power and status
3 RESET Reset button
4 ETH5 Ethernet interface
5 ETH1 - ETH4 10/100/1000 Base-T Ethernet interface
6 BRI1 - BRI2 ISDN BRI interface
9 LED LED display
bintec R3002, bintec R3502 and bintec 3802 have a 4-port Ethernet switch, a serial inter-
face, an ETH5 interface and an ISDN BRI interface as well as a DSL interface.
The connections are arranged as follows:
Fig. 7: Front of bintec R3002
Front of bintec R3002, bintec R3502, bintec R3802
1 CONSOLE Serial interface
2 POWER / STATUS LED display for power and status
3 RESET Reset button
4 ETH5 Ethernet interface
5 Technical data Teldat GmbH
26 bintec Rxxx2/RTxxx2
