TELEDYNE OLDHAM SIMTRONICS iTRANS 2 - Page 22

iTRANS 2
FIXED POINT SINGLE OR DUAL GAS MONITOR
WITH DUAL ANALOG OUTPUTS
USER MANUAL
16
77036429-EN
Revision 7.0

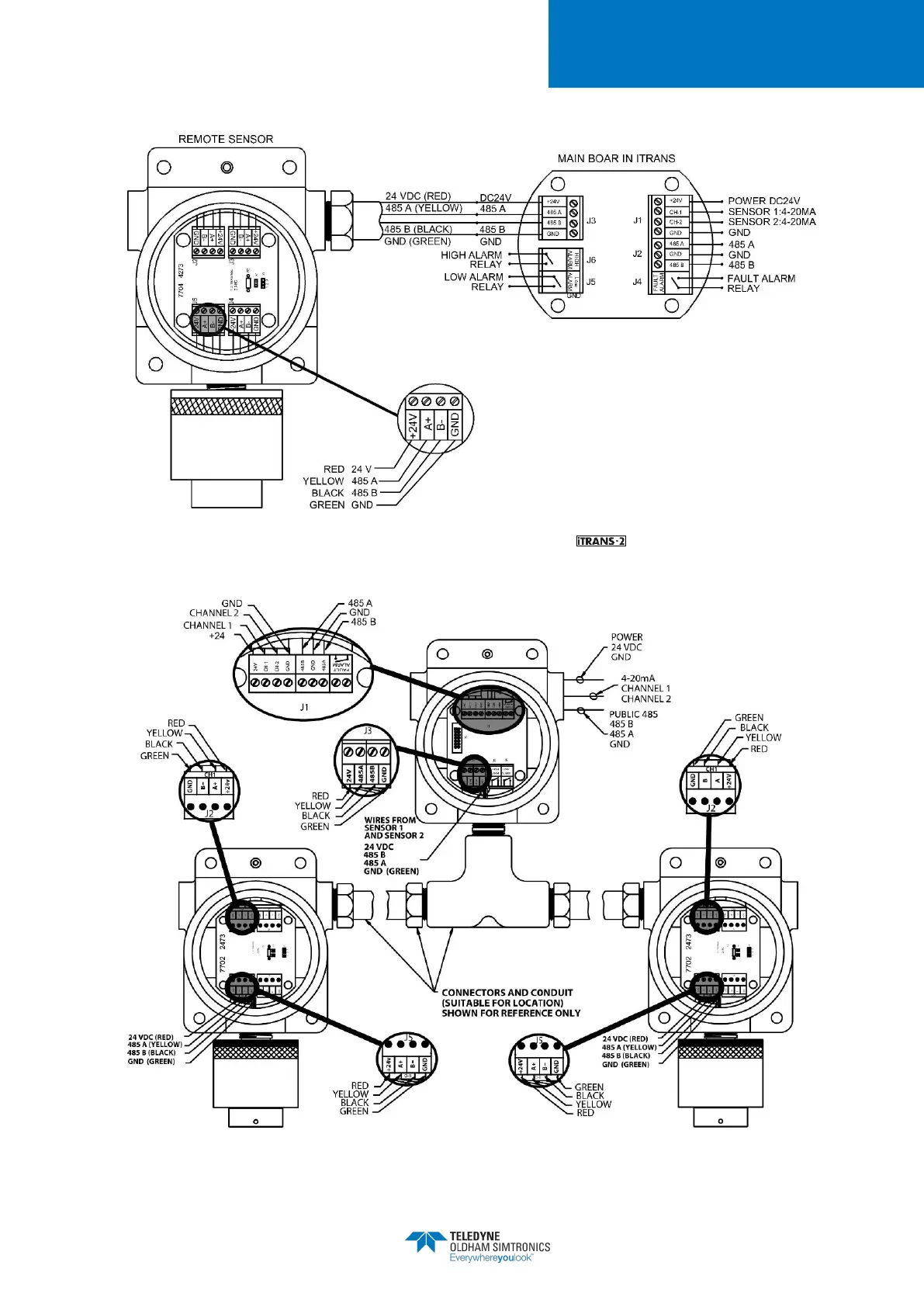

Figure 4-7 Wiring Remote Sensors Back to
Figure 4-8 Wiring Dual Remote Sensors
