TELEDYNE OLDHAM SIMTRONICS iTRANS 2 - A.2 HART Hardware Overview

iTRANS 2
FIXED POINT SINGLE OR DUAL GAS MONITOR
WITH DUAL ANALOG OUTPUTS
USER MANUAL
48
77036429-EN
Revision 7.0
Items
Description
Signal Outputs
Digital 4-20mA FSK HART (HCF Compliant )
Analog 4-20mA (linear analog)
Table A - 1 HART Supported Signals
A.2 Hardware Overview
For details please see 2.
IMPORTANT: In 2, the “Electronic Modules” section is replaced with the following section.
Electronics Modules
The electronics module of the gas monitor contains connectors and jumpers for wiring
and configuring the device. The electronics module for a main unit is shown in the figure.
The electronics module for a remote sensors unit is shown in the figure. The wiring details of
main unit electronics module are explained in “System Wiring” section of this appendix
and for the wiring details of remote sensors unit electronic module please see 4.

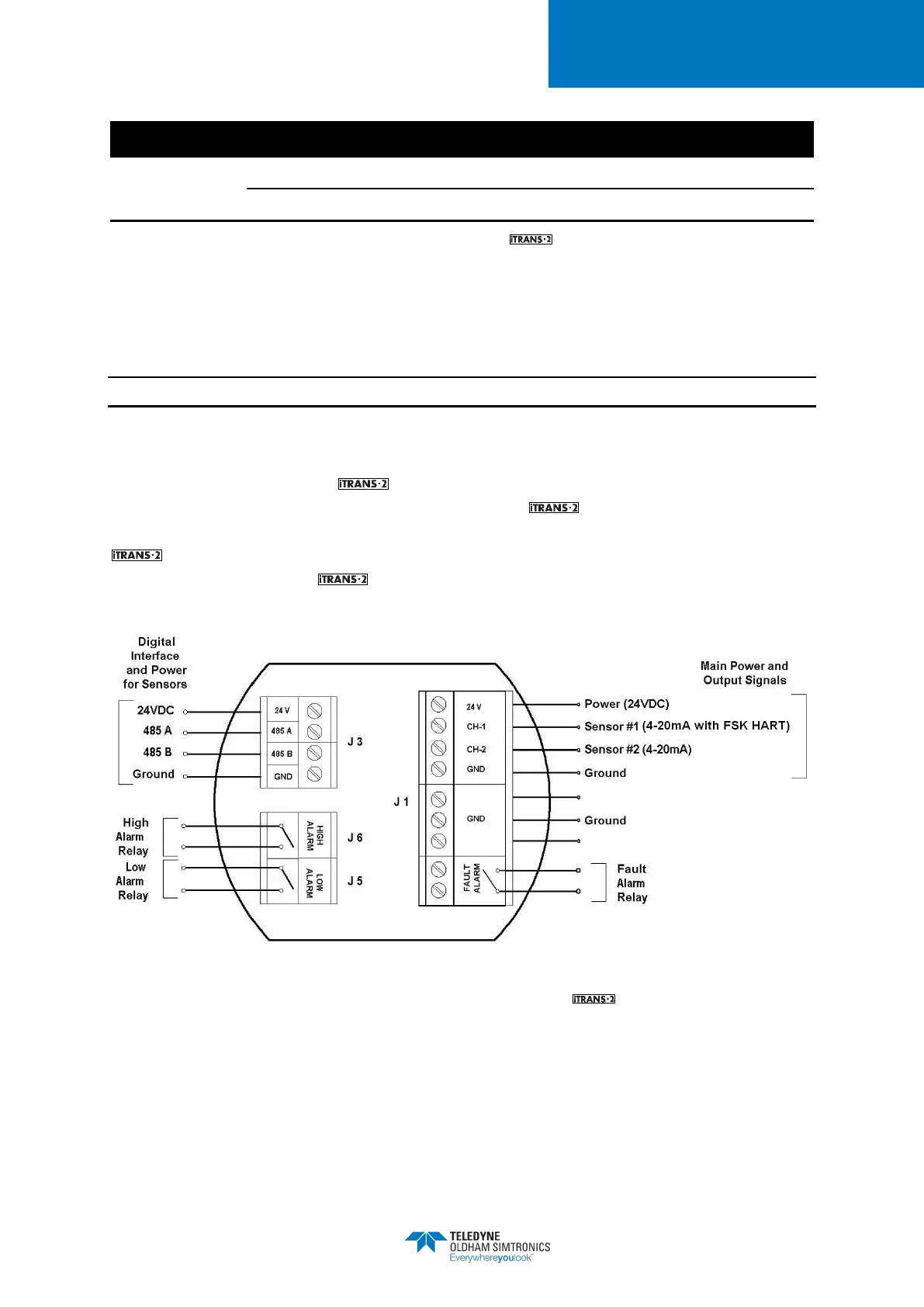

Figure A - 2 Electronics Module for HART Supported (Main Unit)
