Teledyne 500D - Drain Tube Installation and Wash Gland Connection

D Series Syringe Pumps
Section 2 Fluid System Connections and Accessories
2-6
CAUTION
The pressure in the wash gland and line should NEVER
exceed the system pressure or the wash pressure limit as
labeled on the pump. Units with a wash pressure limit label can
be damaged if the pressure is exceeded.
Note
If the primary pump seal fails, the pressure of the delivery fluid
will be exerted on the secondary (wash gland) seal. During
operation, the wash gland outlet should always be uncapped
and routed for either recirculation or drainage.
Detailed information about pumping salt solutions and brines is
available in technical bulletin TB04 Pumping Salt Solutions and
Brines.

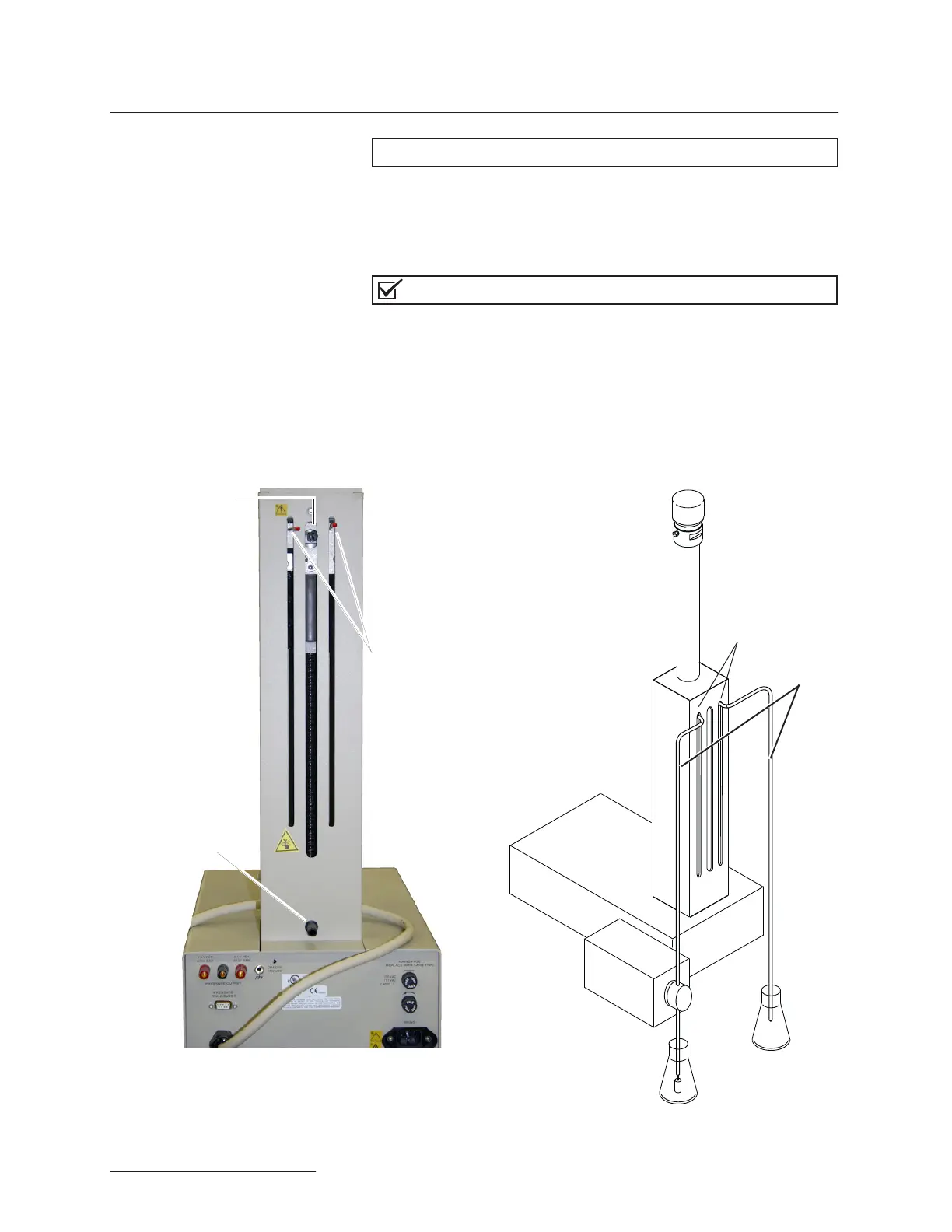

Figure 2-5 Drain tube installation and wash gland connection
Pump*
Inlet Fluid*
Outlet Fluid*
1/8” Wash Gland
* User-supplied
1/8” Tubing*
Drip tray outlet
Splash pan
outlet
Wash gland
tubes
Tubes
