UDB-9000 Universal Deck Box - UDB-9000-M (Portable) and UDB-9000-MR (Rack Mount) Configurations 1-5

1 Overview Operator Functions

Operator Functions

All of the UDB-9000 operator functions are provided on the front panel in both

the portable and rack mount configurations.

Operator Functions—Portable Configuration

The operator functions for the portable configuration of the UDB-9000 are

shown in Figure 1-2. They include the following:

OFF/ON switch: Rocker switch—turns the UDB-9000 on or off.

Touch screen

display: Displays data and enables operator input and

control; includes a built-in speaker that provides

audio outputs, including a beep when a touch

screen display control is touched or an error

occurs.

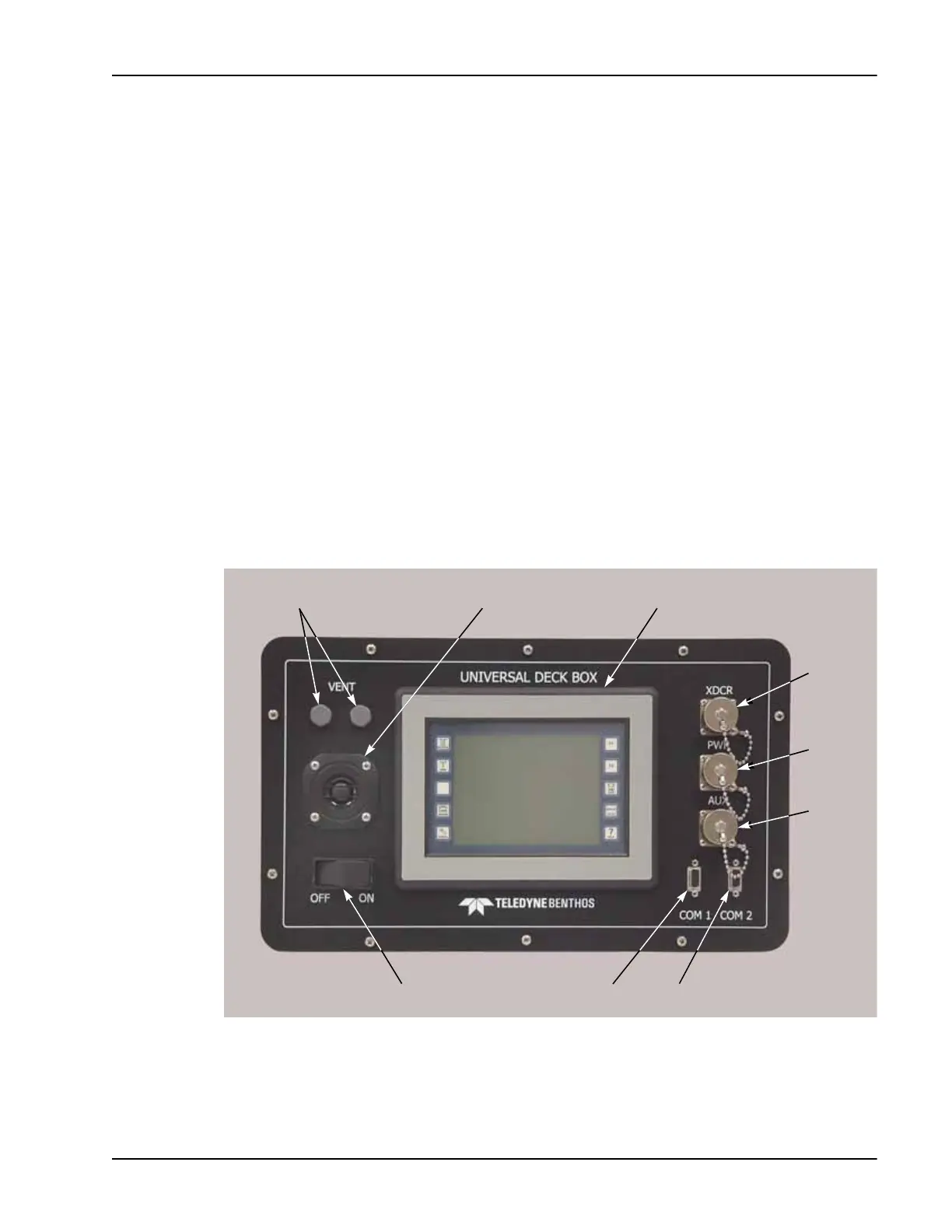

Figure 1-2 UDB-9000 Operator Functions and Connections—Portable

Configuration

SPEAKER TOUCH SCREEN DISPLAY

ON/OFF SWITCH

VENT

COM1 COM2

XDCR

PWR

AUX

PORTS
