4 Operation using the Touch Screen Display Touch Screen Display Overview
For Teledyne Benthos copyright and contact information, touch About. The
About pop-up opens as shown in Figure 4-4. And for system information,
touch System Info. The System Info pop-up opens which is also shown in
Figure 4-4. To close either of these pop-ups touch the X mark. To close the
Help screen, touch Exit.
Status and Control Bar
The Status and Control bar is shown in Figure 4-5. The Status and Control
bar includes controls which are used to set the address of the UDB-9000
modem function, the transmit power, and the time and date. In addition, the
headphone and speaker volumes can be adjusted or muted. These controls
are sometimes disabled, however, depending on the operating state of the
UDB-9000. The Status and Control bar also includes the screen name, a time
and date display, and status indicators which indicate the battery level,
whether the battery is charging or is fully charged, and whether the deck box
is being powered by internal batteries or by external AC or DC power.

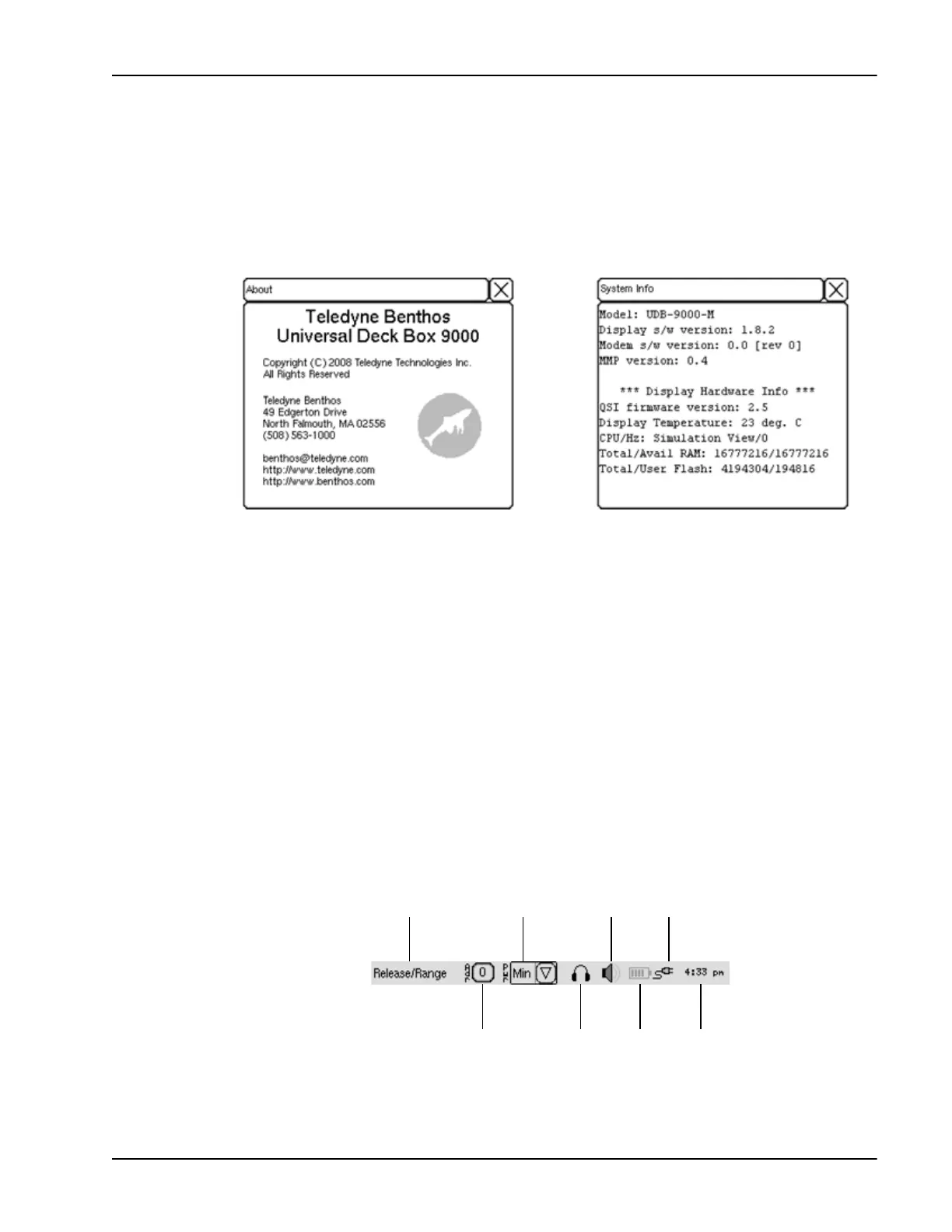

Figure 4-4 About and System Info Pop-ups
Figure 4-5 Status and Control Bar
Screen
name
Modem
Address
Transmit
Power
Speaker
control
Headphone
control
Battery
Level/Charge
External AC/DC
indicator
Power Source
Time and
Date display
control
control
indicator
