ADR-7000 / SAVER-7000 / GUARD-7
© 2017 – Telefire Fire & Gas Detectors Ltd Revision 0.98 October 2017
– Page 6 of 87 –

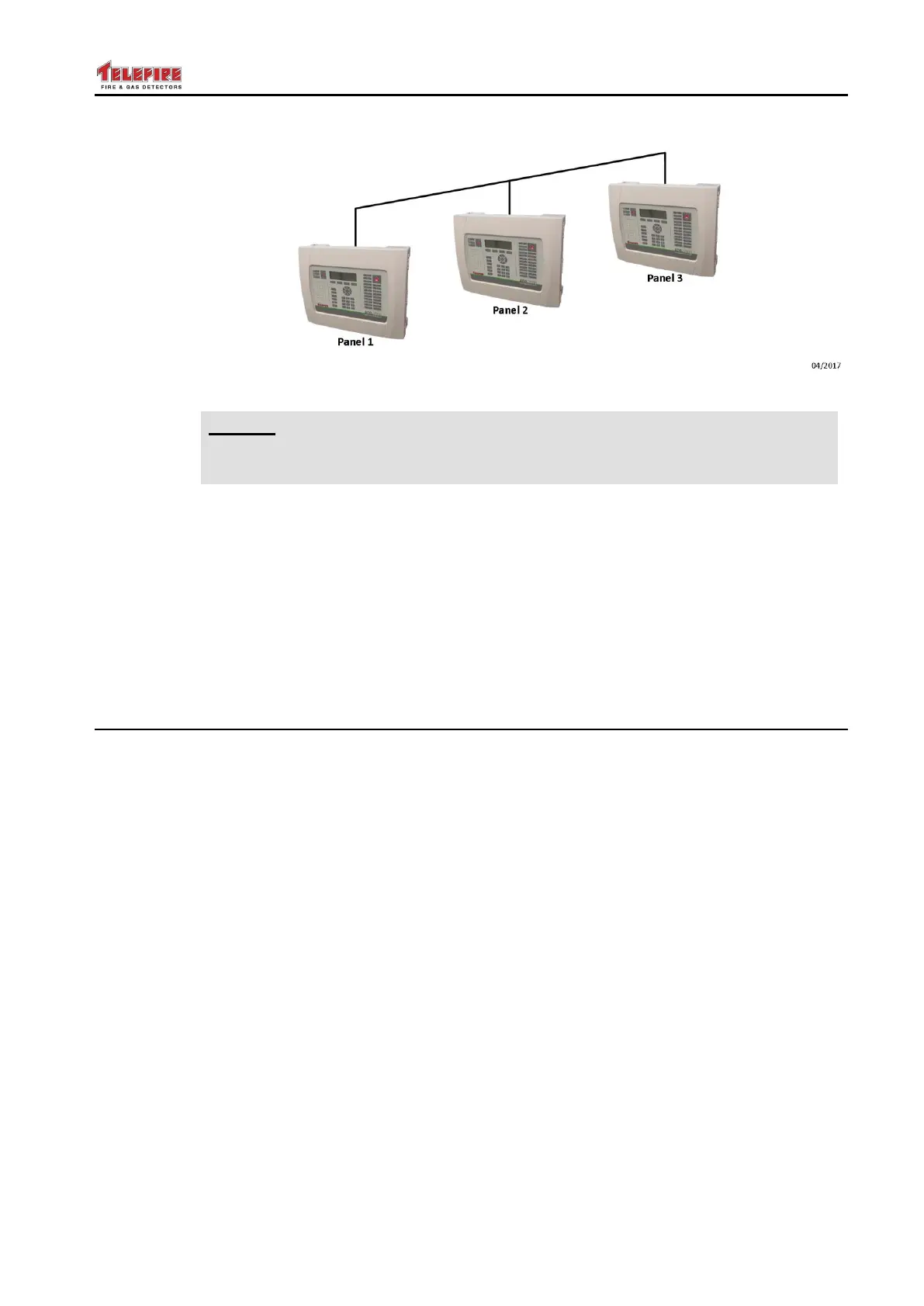

Figure 2 LON-7000 Networking communication module (ADR-7000 only)
Note
Ensure that all panels in a network have the same software version and all
LON-7000 modules are identical (both hardware and software).
2.6.1 Topology
An ADR-7000 LonWorks network can connect from 2 and up to as many as 32
ADR-7000 control panels in a peer-to-peer or Master-slave network. The physical
topology of the network may be bus (figure 8), ring (figure 9) or free (figure 10) topology.
Logical hierarchy may be peer-to-peer – where all messages are reported in all control
panels, master/slave – where slave messages are reported on master control panels, or
a combination of the two.
Ring topology requires LRW-102 Fiber Optic Repeaters.
Please refer to the LON-7000 technical manual for further details.
2.7 TCP/IP Module – NET-7000
The ADR-7000's internet-enabled features allow it to provide fire alarm control panel
monitoring over LAN, WAN, or Internet using a standard web browser or Telefire's
proprietary TCS-3040 software, and distribute alarm and trouble events via a built-in web
server, e-mail notification and SMS paging.
