ADR-7000 / SAVER-7000 / GUARD-7
© 2017 – Telefire Fire & Gas Detectors Ltd Revision 0.98 October 2017
– Page 61 of 87 –

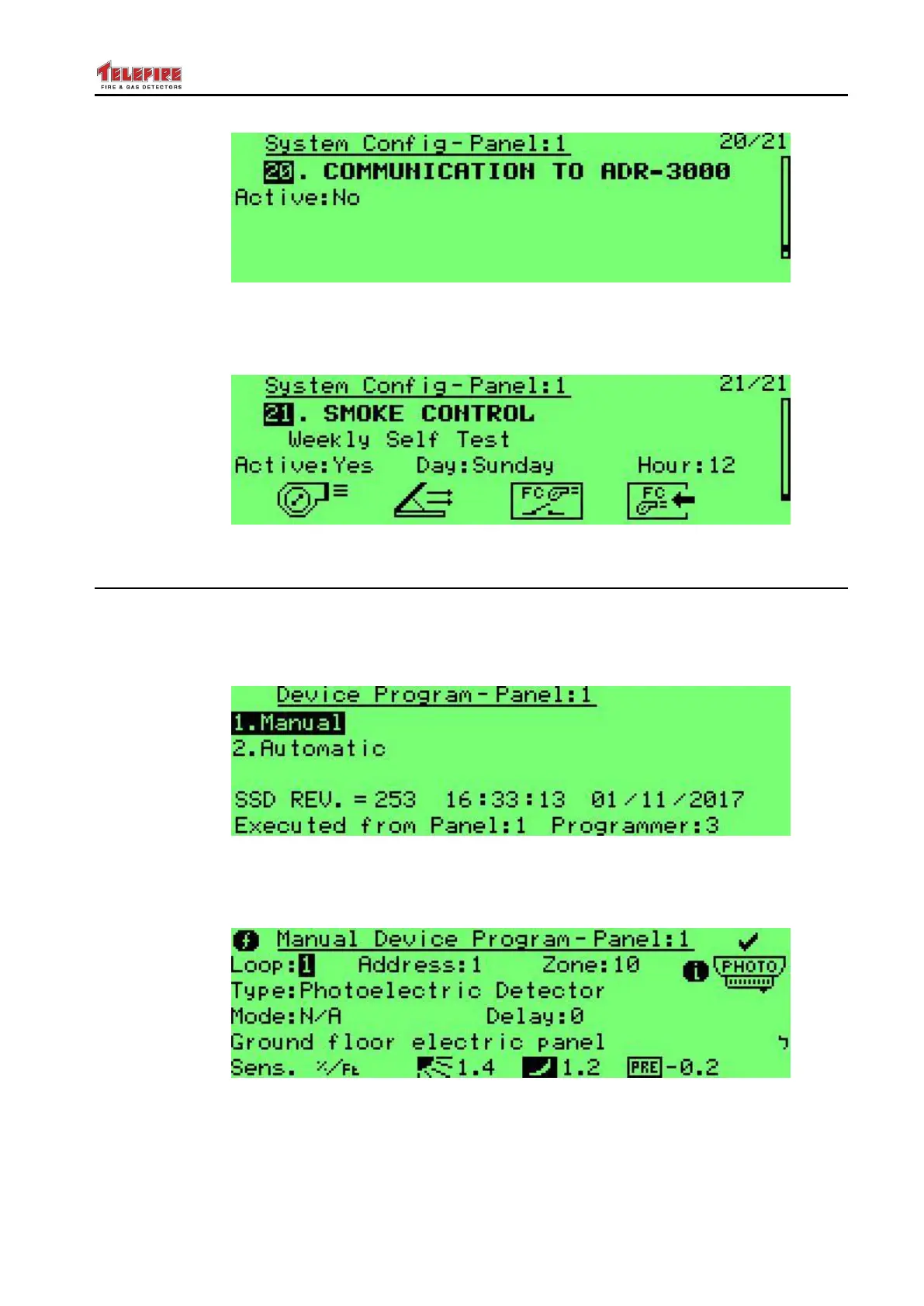

Screen 65 System configuration – communication with ADR-3000
8.9.21 Smoke Control
Allows to set the day and time of weekly Smoke Control system test.
Screen 66 System configuration – Smoke control test settings
8.10 Device Program
Select manual or automatic operation. Manual shall allow you to set parameters for a
specific address. Manual shall scan through each possible address at each SLC Line
Card. Each existing device shall be configured with the device's default setting, if it was
not previously configured.
Screen 67 Device programming – main screen
8.10.1 Manual Device Programming
This option allows you to set device parameters manually.
Screen 68 System configuration – manual device program
Loop: loop number (1 – 8)
Address: device address (1 – 127)
Zone: Logical Zone (1 – 511) of the device
