MA365 Rev. A2 41
Tellabs
®
6325 Edge Node 3 Reference Information

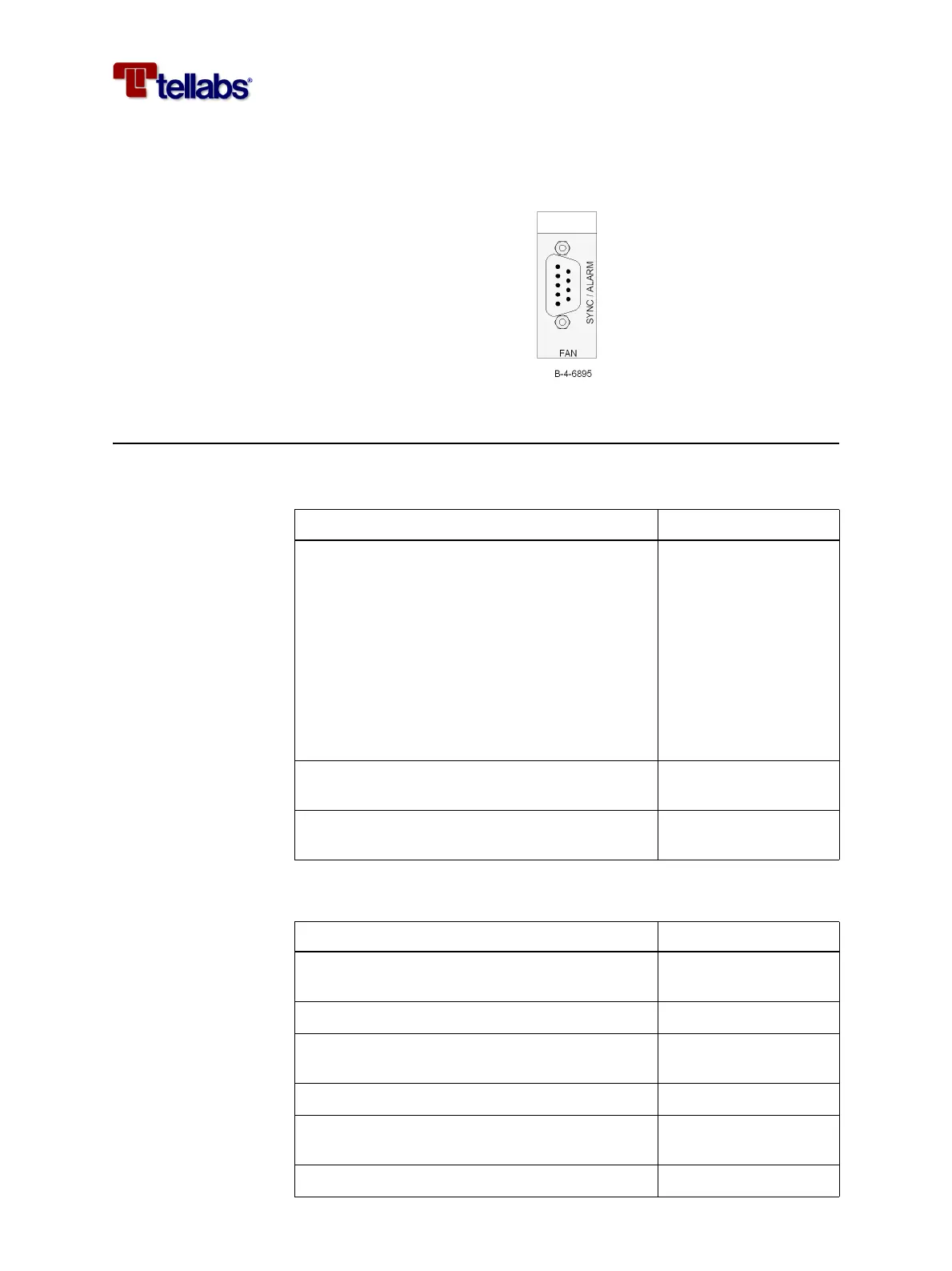

Fan module The figure shows the front of the fan module with the synchronization and
alarm connector.
3.2 Logistics
Subrack items The following subrack items are available for the Tellabs 6325 node.
Modules The following modules are available for the Tellabs 6325 node.
Description Item number
SC2 subrack. The following items are delivered
with the subrack:
Adaptation brackets NS-0296 for 19 inch rack
Adaptation brackets NS-0297 for ETSI rack
Cover plate for slot 6
Extraction tool kit TOOL-H031 (includes mod-
ule reset tool)
M4 x 8 screw and washer to attach ground
wire
UC3560
Cover plate for empty slot 2, 4 or 5 (position for
traffic module)
NS-0292
Cover plate for empty slot 8 (position for PS-DC
module)
NS-0295
Description Item number
SIMX16 (SDH optical I/F module & cross-con-
nect)
CM3568
SIMX4 (SDH optical I/F module & cross-connect) CM3567
SPIMX (SDH optical I/F and PDH I/F module &
cross-connect)
CM3563
PIM1, 21 x 2 Mbit/s (E1) tributary, 120 Ohm CM3566
CMCC, Central management and communica-
tions control module
CM3564
PS-DC module CM3561
