6325 Edge Node 3 Reference Information
3 Reference Information
Overview The reference information includes information about item numbers, func-
tional description and specifications of the Tellabs 6325 node.
• ‘3.1 Front Layout’ on page 39
• ‘3.2 Logistics’ on page 41
• ‘3.3 LEDs, Switch and Connectors’ on page 45
• ‘3.4 Functional Description’ on page 48
• ‘3.5 Specifications’ on page 51
3.1 Front Layout

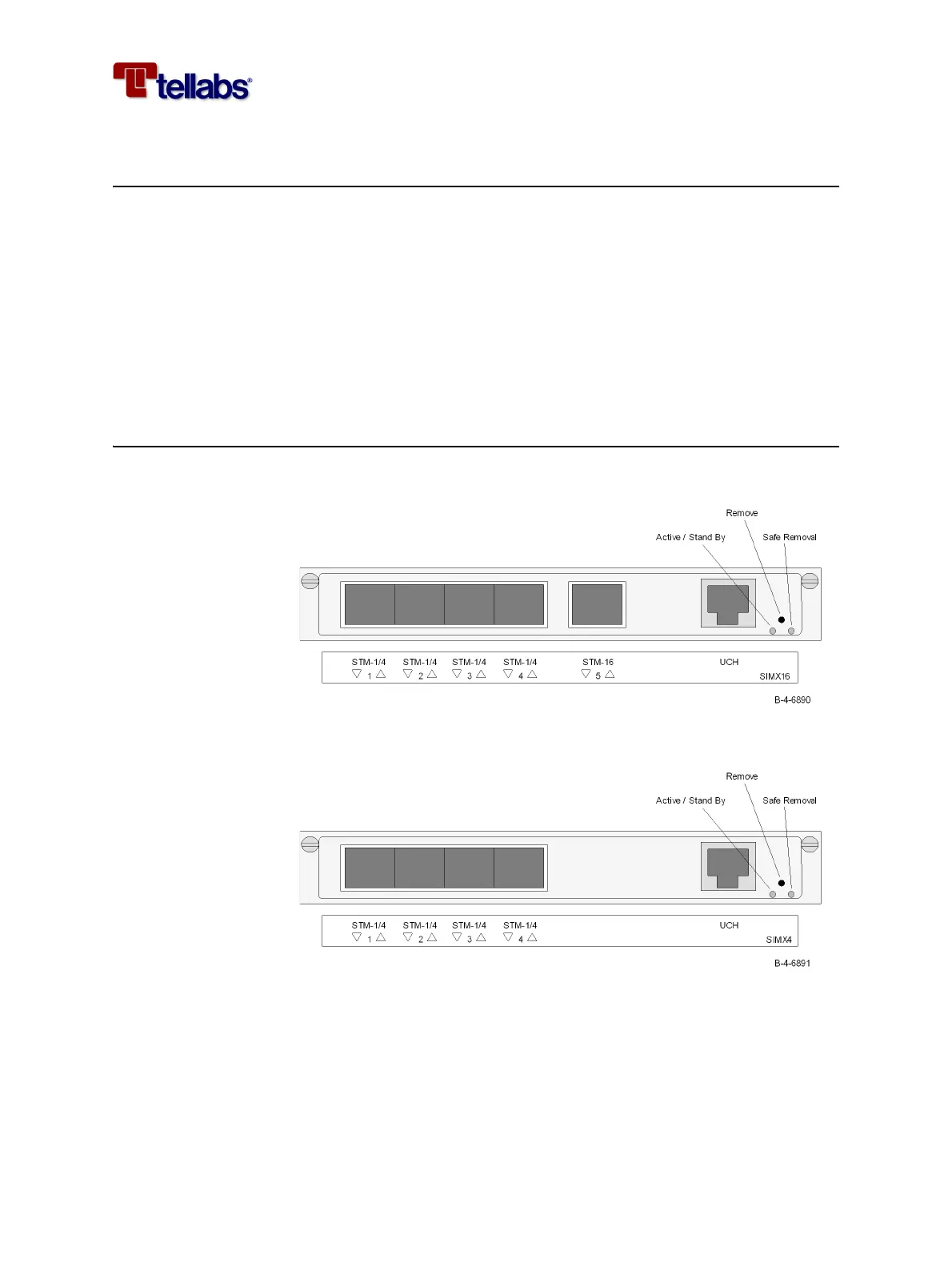

SIMX16 module The figure shows the front of the SIMX16 module.
SIMX4 module The figure shows the front of the SIMX4 module.
