K-Test (two faulted wires)
To begin the K-Test:
1. Move the rotary knob to the RFL position.
2. Connect leads:
• Red lead: Connects to one faulted wire (Fault 1).
• Black lead: Connects to the other faulted wire
(Fault 2).
• Green lead: Connects to a third wire in common
with the two faults (usually the cable shield or
ground).
Unlike the RFL test method with non-faulted strap
wires, start the K-Test without a strap in place at
the far end.
3. Press F1 Next and the test set will measure the
two fault values.

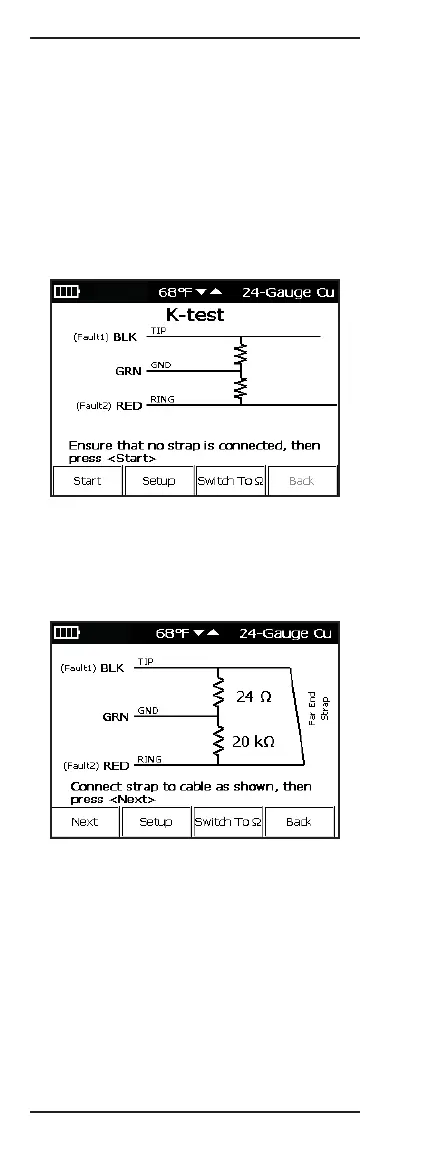

Fault Check: The graphic displayed shows a two
fault configuration. The test set’s connections are
shown on the left side and the strap is on the right.
The resistance of the two faults is displayed.
“B Fault” is displayed if the fault is crossed to
battery.
