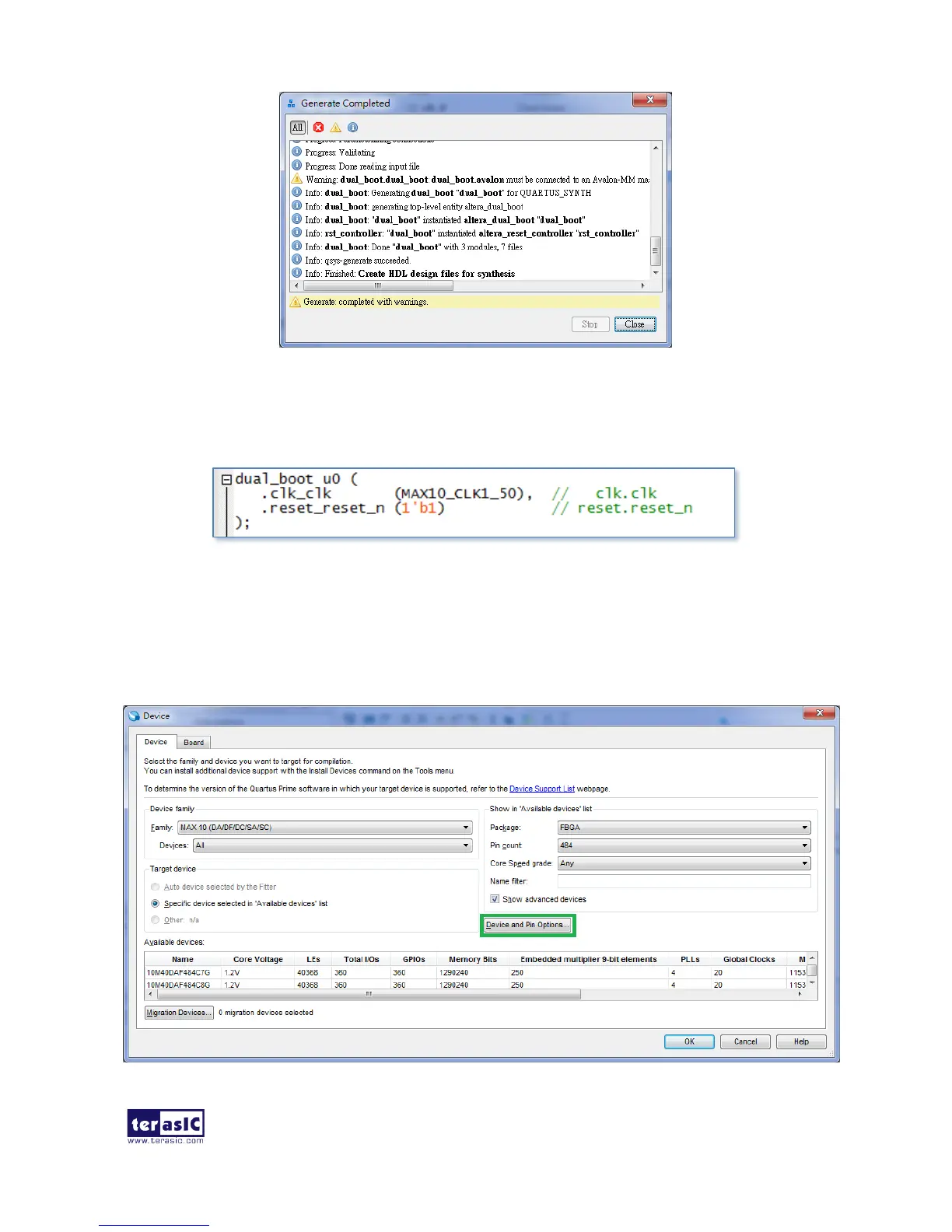

Figure 6-9 Generate completed.
5. Click Close and Finish to return to the window and add the dual_boot qsys into the top file as
shown in Figure 6-10, and add the dual_boot.qip file to the project and save.
Figure 6-10 Add the dual_boot module in top file.
Secondly, the project needs to be set before the compilation. After adding dual_boot IP successfully,
please set the project mode as Internal Configuration mode, detail steps are as follows:
1. Choose Assignments > Device to open Device windows shown in Figure 6-11.
Figure 6-11 Open Device window…
