Now, you can set the BOOT_SEL by JP5, you will find if you open JP5 (BOOT_SEL = 0), the Led
Breathe functions would show. Power down the board, insert the jumper to JP5 (BOOT_SEL = 1),
then Power on, you would find the Gsensor functions show.

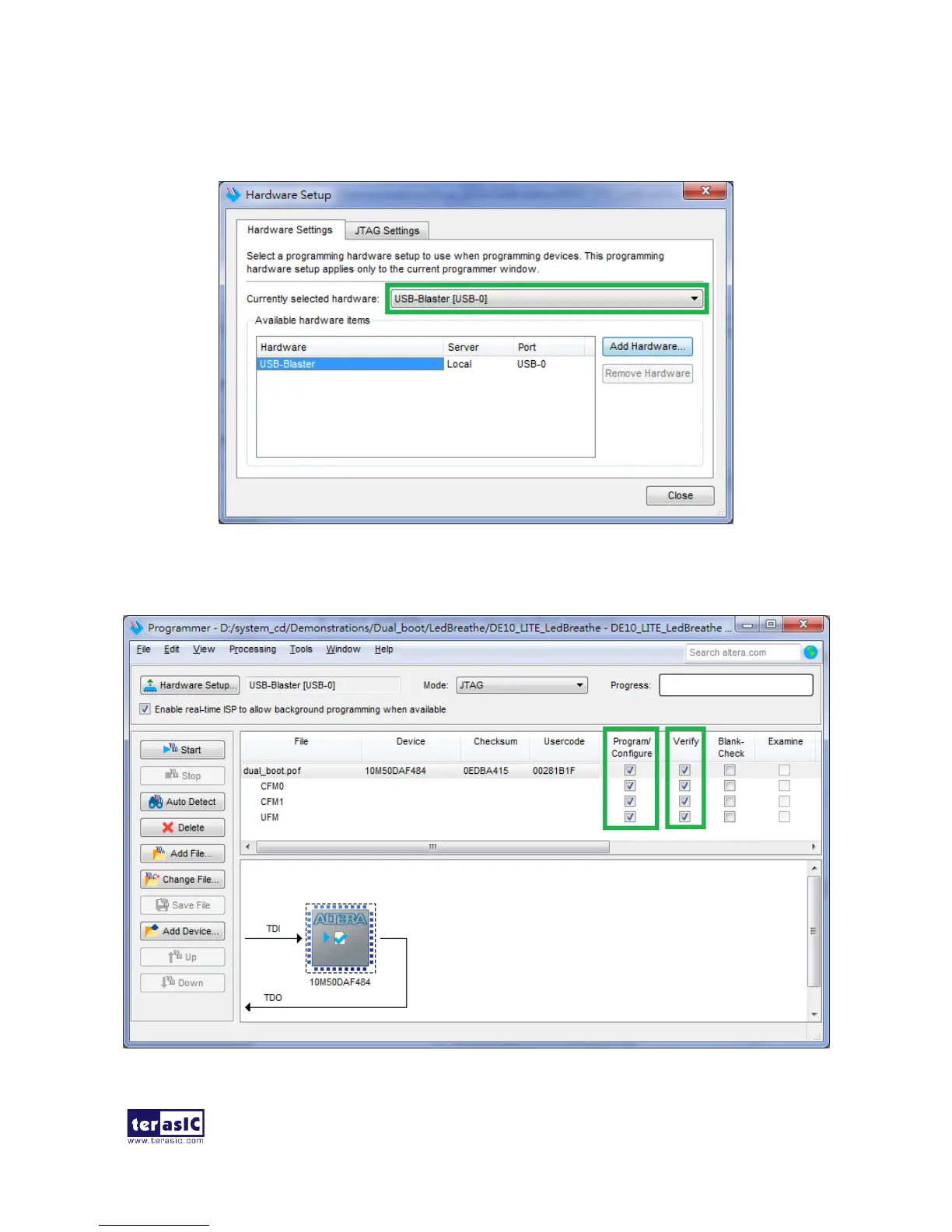

Figure 6-16 Hardware setup window
Figure 6-17 Programmer window with dual_boot.pof file
