TM SERIES
-XX
472797 - 1/15 Terex South Dakota, Inc. TM Series

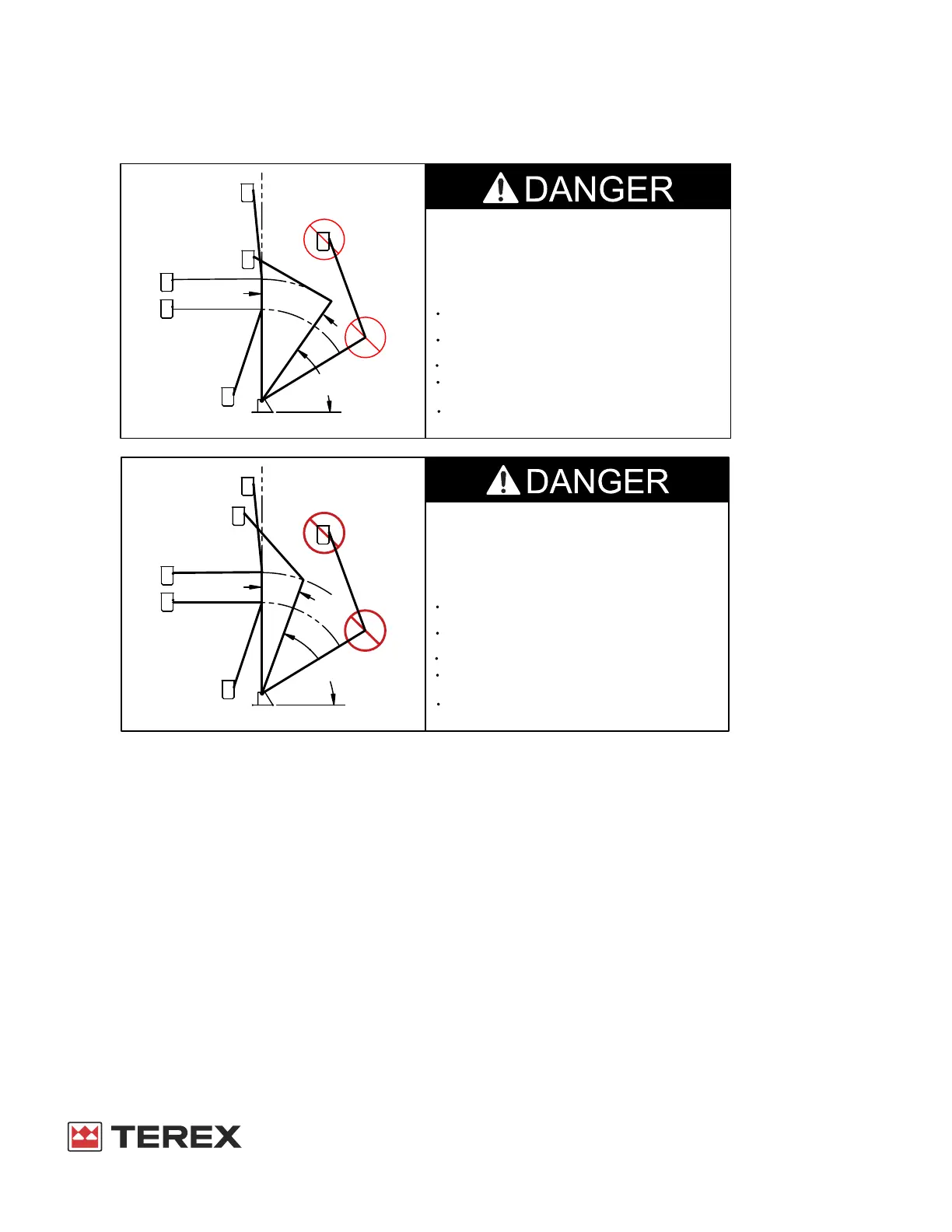

SAFETY RELATED DECALS
18.
OVERTURNING HAZARD
May result from operating outside the
All outriggers must be properly set before
Truck must be level before operation
proper platform & boom positions or
Platfrom must remain opposite lower boom
hinge pin from lower boom.
Lower boom can only extend when lower boom
is above 55 degree angle.
Upper boom can be extended at any time.
operation of the booms.
improper outrigger setup or truck position
of the booms.
DEATH OR SERIOUS INJURY
475373
55°
Extension
Allowed
Platform NOT
allowed on
this side of
center line
Platform allowed
on this side of
Center line of
Rotation
Extension not
allowed below 55°
OVERTURNING HAZARD
May result from operating outside the
All outriggers must be properly set before
Truck must be level before operation
proper platform & boom positions or
Platfrom must remain opposite lower boom
hinge pin from lower boom.
Lower boom can only extend when lower boom
is above 70 degree angle.
Upper boom can be extended at any time.
operation of the booms.
improper outrigger setup or truck position
of the booms.
DEATH OR SERIOUS INJURY
488127
70°
Extension
Allowed
Platform NOT
allowed on
this side of
center line
Platform allowed
on this side of
Center line of
Rotation
Extension not
allowed below 70°
