Terex HI-RANGER TM Series User Manual

TM SERIES
1-17
TM Series Terex South Dakota, Inc. 472797 - 1/15

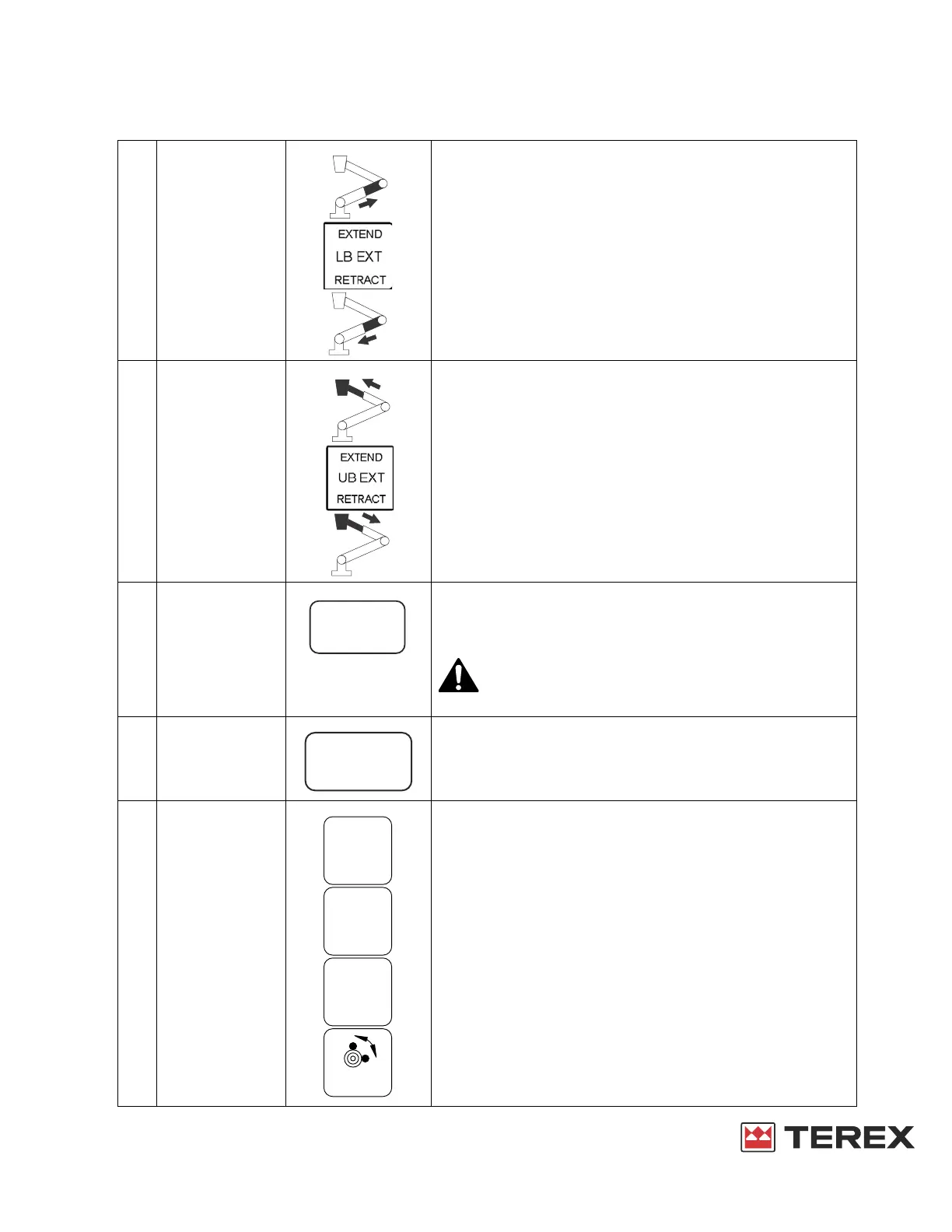

OPERATION GUIDELINES
7. Lower Boom
Extend
Push lever forward to “EXTEND” out lower boom.
Pull lever back to “RETRACT” in lower boom.
8. Upper Boom
Extend
Push lever forward to “EXTEND” out upper boom.
Pull lever back to “RETRACT” in upper boom.
9. Engine Stop/Start
(Optional)
Push and hold to start engine.
Release when engine starts.
Push and release to stop engine.
Can also be used to stop the Aerial Device in an
emergency.
10. Two-Speed
Throttle
(Optional)
With engine running, the throttle is activated.
Push and release to increase engine RPM.
Push and release to return to engine idle.
11. Manual Let Down The Manual Let Down system works by gravity only. It can
not raise a boom or level. See “MANUAL LET DOWN
SYSTEM” in Operator’s Manual for operating instructions.
ENGINE
PUSH/RELEASE
STOP/START
437033
THROTTLE
PUSH/RELEASE
TWO SPEED
431560B
LOWER
BOOM
BOOM
UPPER
EXTEND
LOWER
ROTATE
Let
Down
Off
(Run)
IN- OFF (Run)
OUT-LetDown
IN- OFF (Run)
OUT-LetDown
IN- OFF (Run)
OUT-LetDown
