Safety
2-14

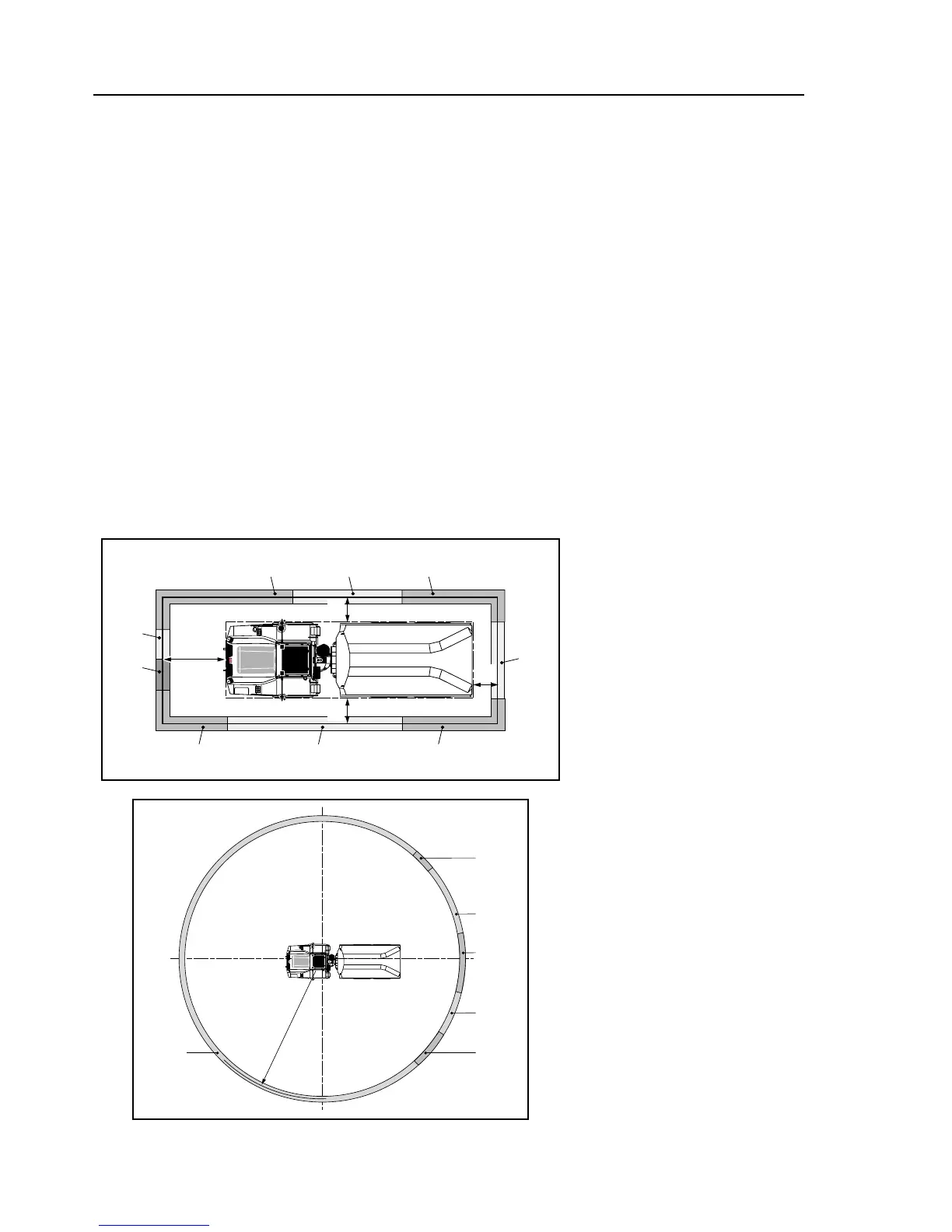

When all the mirrors have been fitted, the machine has a total of four
mirrors, designated A to D respectively, and positioned generally as
illustrated. The area surrounding the machine is to be considered as two
distinct fields of view, illustrated below as areas 1 to 9 in the immediate
vicinity, and areas 10 to 15 at a radius of 12 m from the operator when
seated. The operator MUST adjust the mirrors, and set the CCTV
camera, to achieve visibility as identified below:
• Areas 2, 8 and 10 can be directly viewed from the operator’s
seating position without the need for mirrors.
• Adjust mirror A to facilitate the view of Areas 1, 2, 3, 14 and 15.
• Adjust mirror B such that Areas 4 and 14 are fully visible.
• Adjust mirror C such that Areas 6 and 12 are fully visible.
• Adjust mirror D to facilitate the view of Areas 7, 8, 9, 11 and 12.
• Set the CCTV to facilitate vision of Areas 5 and 13.
