Controls and Operating
3-15

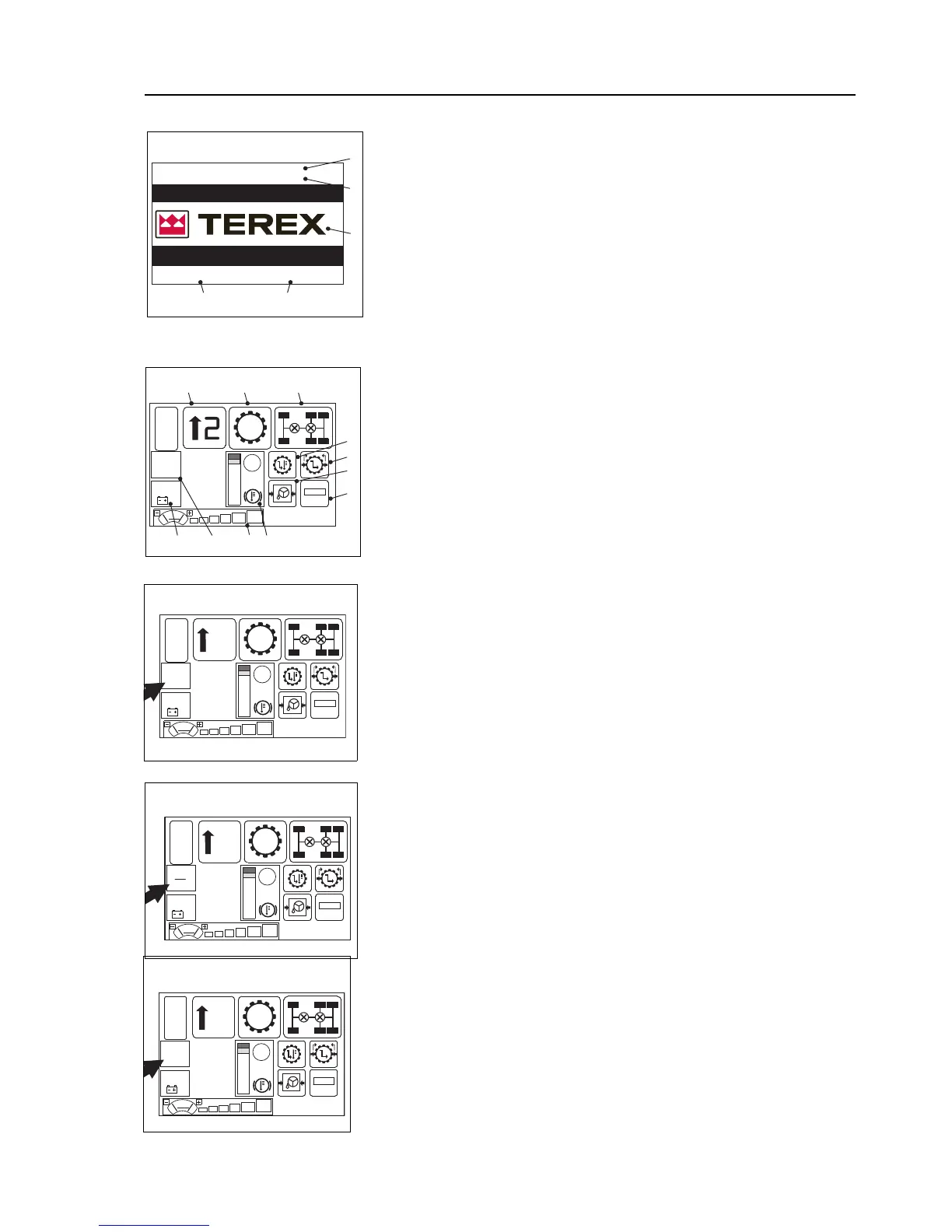

Screen - 1:
PowerUp Screen
1. Displays the Terex logo.
2. Date display.
3. Time display.
4. Software version display.
5. MCU software version display.
Screen - 2:
Main Screen - Displays several indicators, as shown.
1. Gear Indicator - Displays information relating to the transmission
status. The indicator displays the gear selected and drive direc-
tion. Drive direction is indicated by a colored arrow: Green = For-
ward. Red = Reverse.
2. Drop Box, High Ratio Selected - Indicates that the drop box is
engaged in high ratio shown or low ratio.
3. Drop Box, Differential Lock Engaged - Di splays if the drop box
differential Lock is engaged.
4. Steering Oil Pressure Low - Illuminates to warn of a fault in the
steering system supply pressure. Illuminates when the ignition is
turned on and pressure is low. If the light illuminates, stop the
machine and investigate the cause.
5. Drop Box Oil Temperature High - Indicates that drop box oil tem-
perature is at a level higher than the prescribed operating range
and should be investigated.
6. Front Windscreen Wiper Intermediate Status Bar - Displays the
speed stage at which the wiper is operating.The front windscreen
wiper intermediate Status Bar is shown just as the control stock
wiper switch is set to “Intermediate” position.The intermediate sta-
tus can be set from step 1 (slow - 15 sec pause time) to step 6
(fast – 0 sec pause time) by using the “Display-Menu (+)(-)
Switch”.
7. MCU Error Code - Refer to Section 3 MCU error codes. The error
codes will be displayed in sequence in intervals of 1sec.
8. Fuel Consumption Indicator - Displays 3 possible indications on
fuel consumption.
(8a) Total fuel consumption since last reset in liters.
(8b) Average fuel consumption since last reset in liters / hour.
(8c) Instantaneous fuel consumption in liters / hour.
