Description
TA9 & TA10 Dumper 0803-2 November 2009 5-8
Circuit Breakers
A - Engine Starter System (20amps)
B - Lights (30amps)
In the event of a fault occurring, the circuit breaker will trip out,
this being indicated by the button protruding out beyond its
normal position.
Should this occur, the reason for the overload must be found and
the components at fault replaced or repaired.
When the repair has been completed the circuit breaker should
be reset by pressing the button until it locks in position thus
restoring the electrical supply.
On machines with full lighting, one extra 30amp circuit breaker
is fitted on the left hand side of the dashboard.

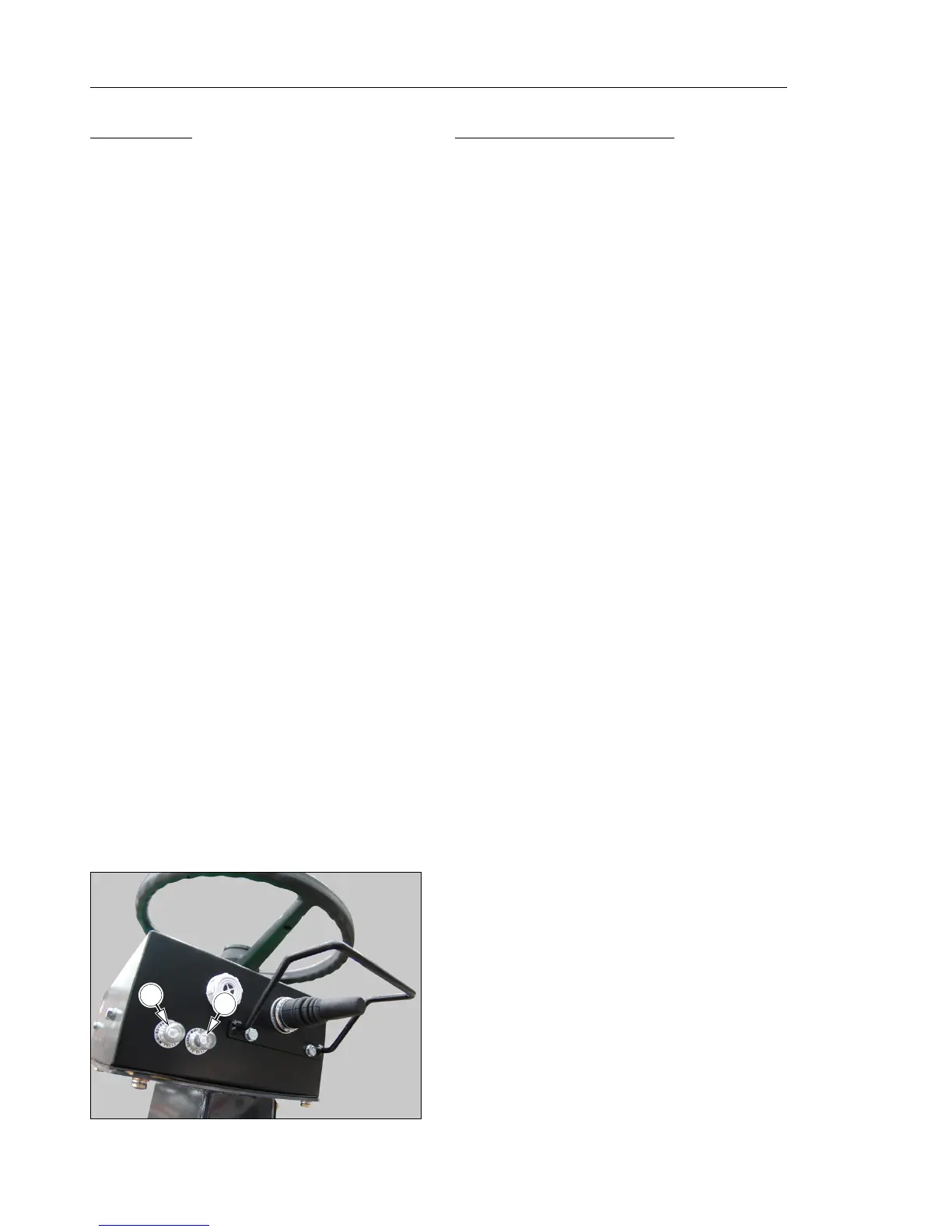

Dashboard Controls & Instruments
The layout of the dumper dashboard is dependant on equipment
and options fitted and various examples are illustrated on the
following pages.
