Maintenance
TA9 & TA10 Dumper 0803-3 December 2010 9-4
Battery
Battery Isolator
See Battery Isolator on Pages 5-8 and 5- 9 of this manual.

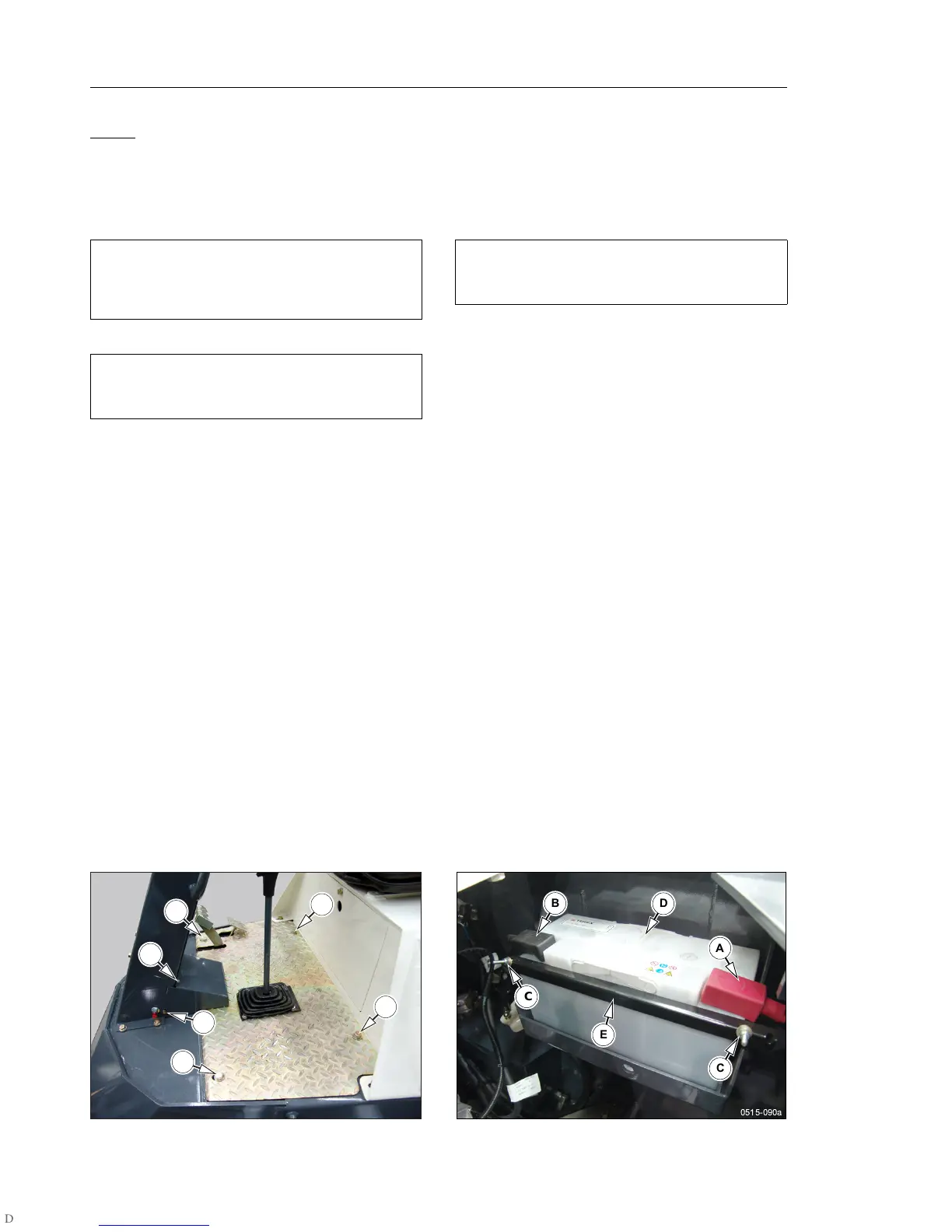

Battery Access
• Remove the four bolts (B) securing the hose cover to the
steering column.
• Remove the four bolts (A) fixing the floor plate to the rear
frame.
• Lift the floor plate clear of the machine.
Battery
Battery Removal
Read Battery Maintenance section before continuing.
• Disconnect NEGATIVE cable (B) first.
• Disconnect POSITIVE cable (A).
• Loosen the battery clamp strip nuts (C) and remove the
clamp strip (E).
• Lift battery from the machine using lifting handles (D).
b
Before Attempting Any Major Maintenance Disconnect
Battery
b
Use Isolator for Emergency Battery Isolation
A
A
A
A
B
B
0803-9-001
b
Disconnect Negative Battery Lead Connection First
0515-090a
C
B
E
C
A
D
