Description
TA9 & TA10 Dumper 0803-2 November 2009 5-16
Direction Indicator Switch - if fitted

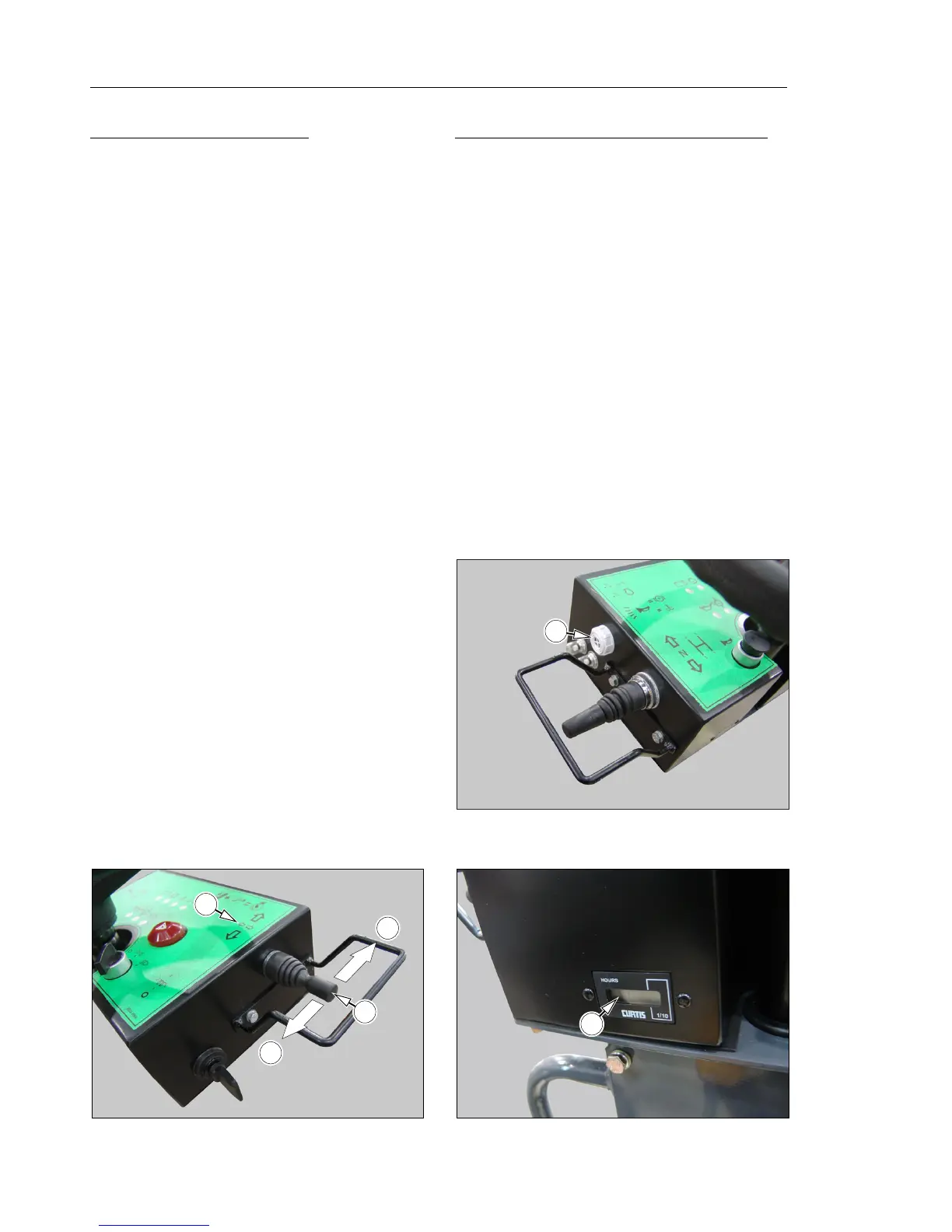

This switch is used to illuminate the LEFT or RIGHT, front and
rear indicator lights to inform others of the operators intention
to turn the machine to the Left or Right.
Moving indicator lever (A) forwards (1) will illuminate the left
hand indicator lights. Moving the lever (A) backwards (2) will
illuminate the right hand indicator lights.
These instructions are shown graphically on the dashboard
decal (B).
Audible Warning, Hourmeter and Reverse Bleeper
Audible Warning (A)
The Audible Warning (A) alerts the Operator that the handbrake
is ‘ON’ or the engine coolant temperature is too high.
Hourmeter (B)
The Hourmeter (B) is located in the control panel to the right of
the steering column. The meter is activated whenever the start
switch is in position 1 or above and its purpose is to determine
when a service schedule is due i.e. every 10, 50, 250, 500 and
1000 hours etc.
Reverse Bleeper - if fitted
This warning device is activated whenever the Forward/
Reverse switch is put into the REVERSE position. Its purpose
is to warn people the machine is reversing.
