7-3 TA9 & TA10 Dumper 0803-3 December 2010
Operating Instructions
Operators Seat - Grammar

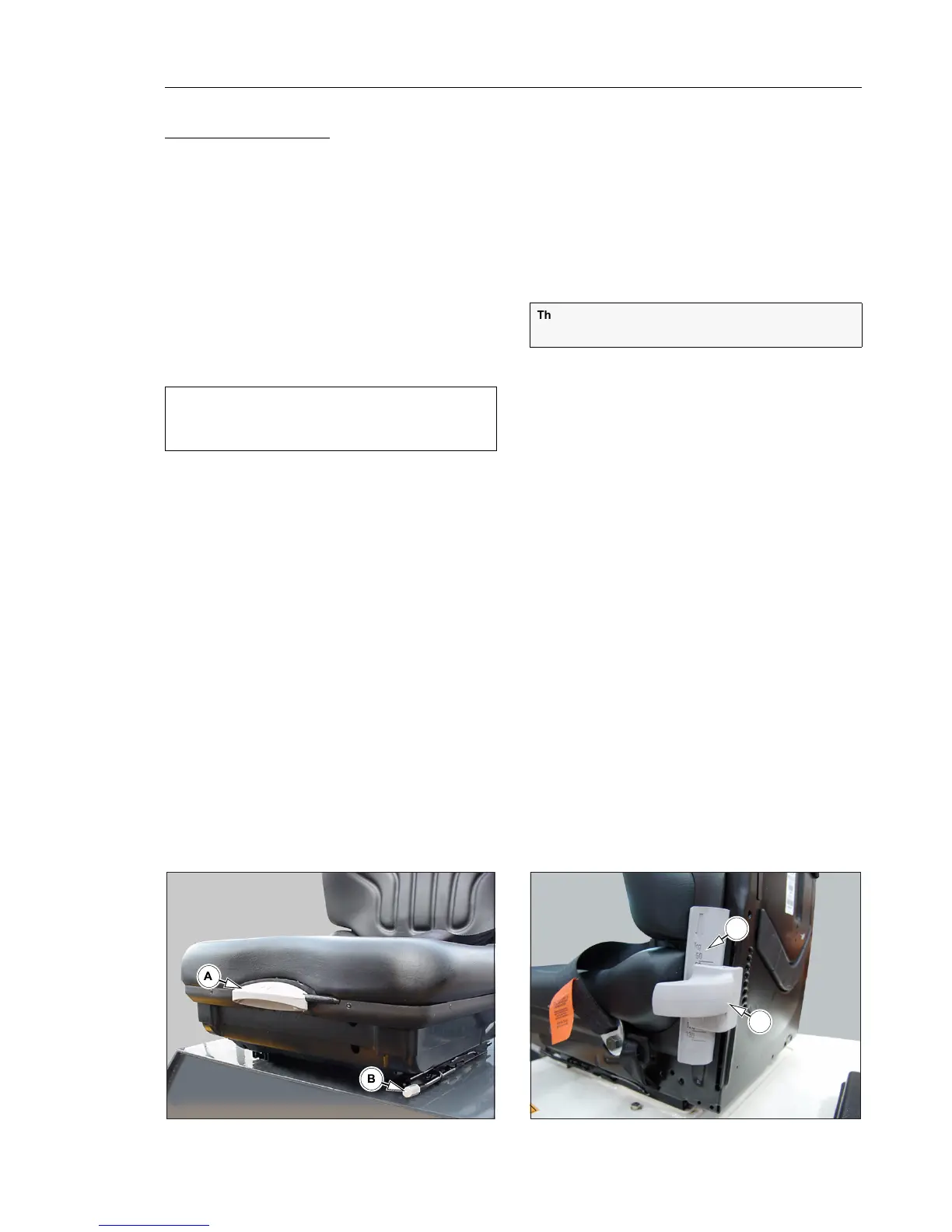

Angle Adjustment
The seat back rest is adjustable for angle, this is achieved by
lifting lever (A) at the front of the seat cushion and sliding the
seat cushion forwards/backwards.
Release the lever and ensure the seat runners engage in one of
the preset locking positions.
Seat Movement
On all machines the operator is able to adjust the seat in the fore/
aft direction by lifting knob (B) and sliding seat to the required
position, then releasing the knob to lock the seat into position.
Grammar Seat Operating Instructions
Weight Adjustment
The seat may be adjusted for drivers weight by sliding lever (C)
downwards to the relevant weight position, as indicated by the
scale (D) on the side of the seat.
To return lever to the top of the scale push the lever (C) fully
downwards to the bottom of the scale (D) and then lift the lever
(C) to the top.
The engine will not stop when the Operator leaves the seat.
b
Do Not Adjust the Seat While the Machine Is Moving
