Terrasat IBUC - Figure 7-5 RX 1+1 Interface Module Front Panel; Figure 7-6 RX 1+1 Interface Module Back Panel; Figure 7-7 RX 1+1 Interface Module Side View

IBUC Operation Manual
Terrasat Communications, Inc.
Rev. A
7-16
The interface box also provides DC power connectors receiving 24 or 48VDC from
external power supplies.
RX 1+1 Interface Module:

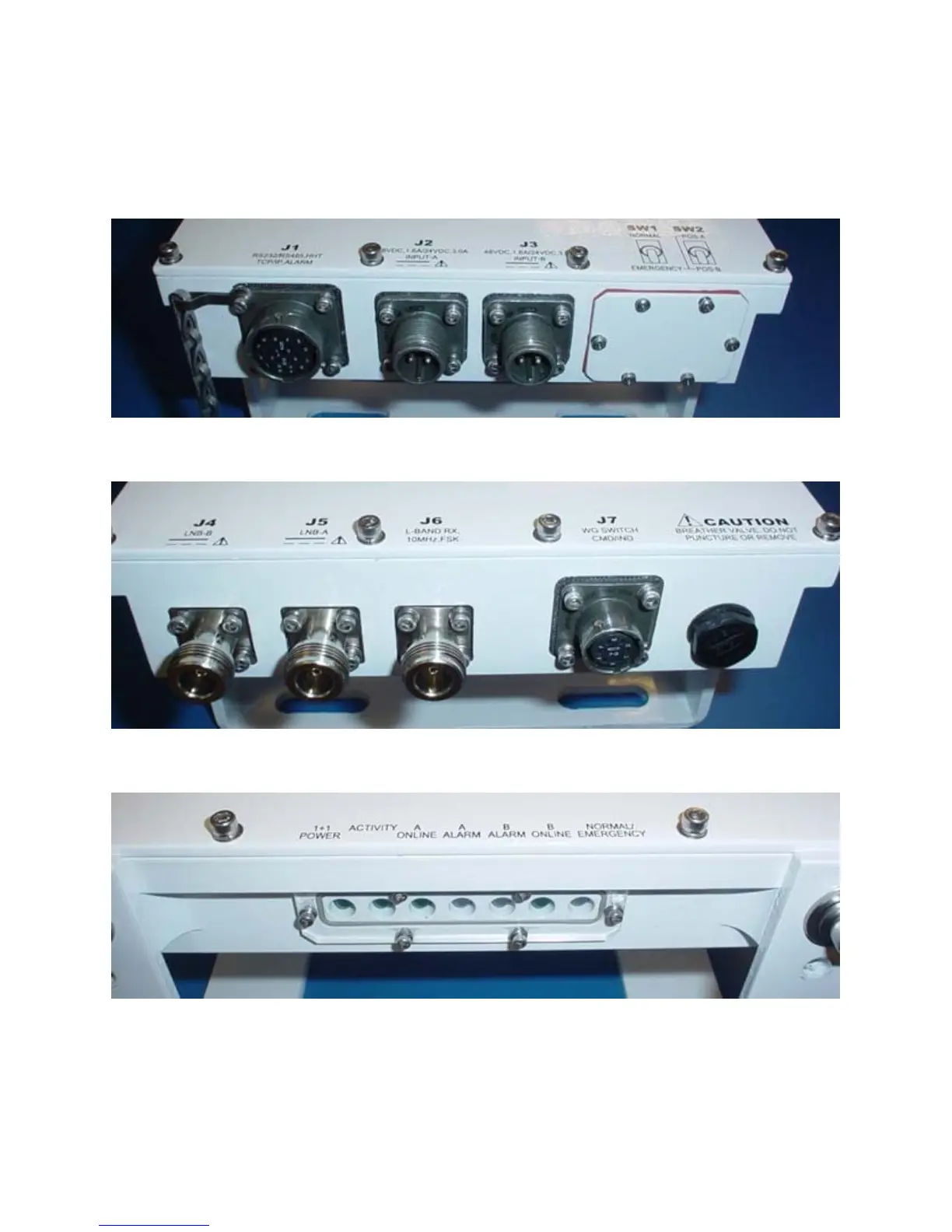

Figure 7-5 RX 1+1 Interface Module Front Panel
Figure 7-6 RX 1+1 Interface Module Back Panel
Figure 7-7 RX 1+1 Interface Module Side View
