IBUC Operation Manual
Terrasat Communications, Inc.
Rev. A
7-60
Alarm Config page:
This page allows the operator to configure the alarms as Minor, Major or None. Major
alarms are the ones that cause a summary alarm (relay closure) with the Form-C relay.
This is particularly important when operating in redundancy. Summary alarms are the
ones that will cause switchovers. It also allows operator to configure alarms as
suppressible. Suppressible alarms are the ones that will be suppressed when enabling
“Suppress Rx Fault” (see Alarm Control page).

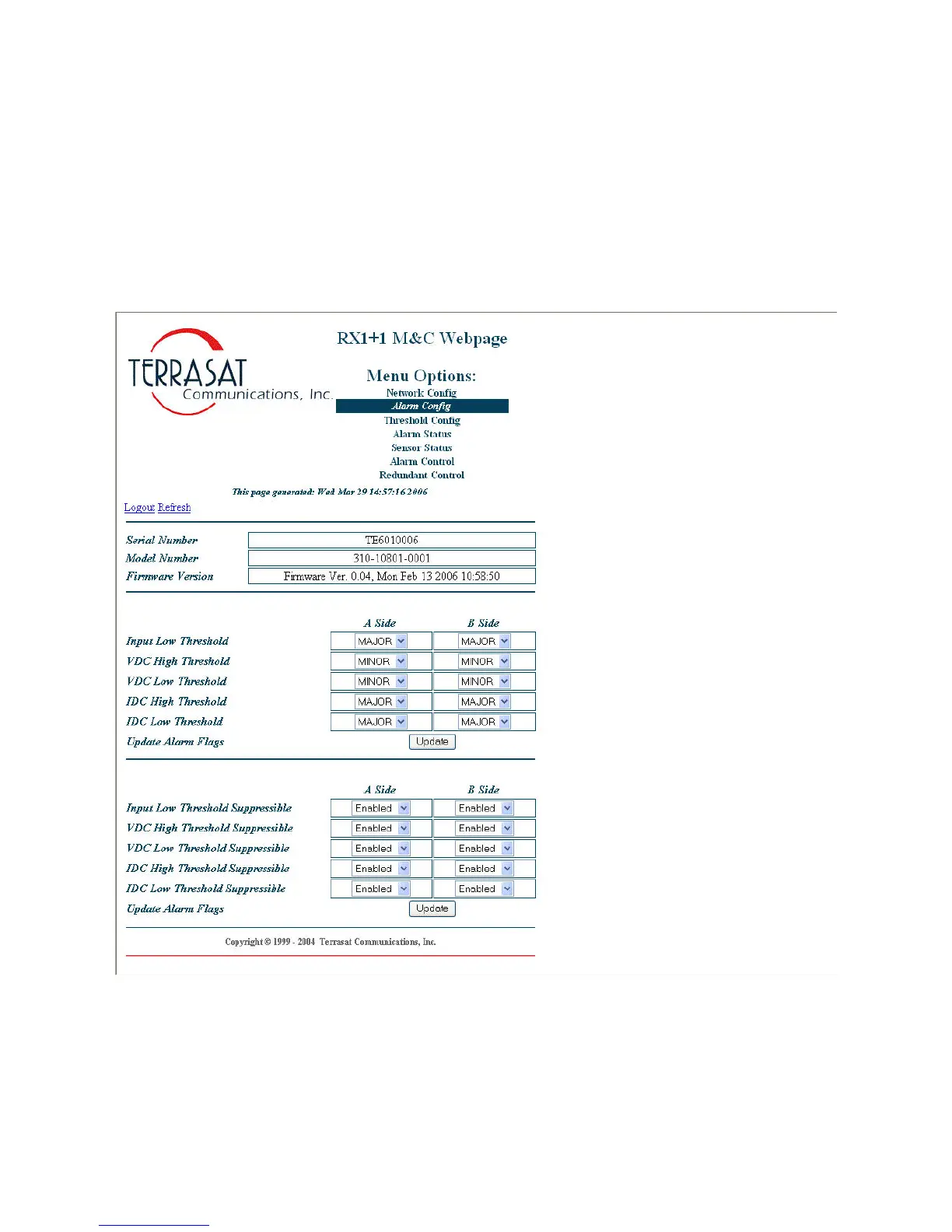

Figure 7-13 Alarm Config page
Refer to Table 7.10 Rx 1+1 Command Set for information regarding parameters and
valid values.
