IBUC Operation Manual
Terrasat Communications, Inc.
Rev. A
7-62
Alarm Status page:
This page allows the operator to verify the status of the unit. The green background
shows that the parameter is OK. Minor faults will have an orange background and major
faults will have a red background. At the bottom of the page the operator will be able to
access the Alarm History log and clear it by clicking the clear button.

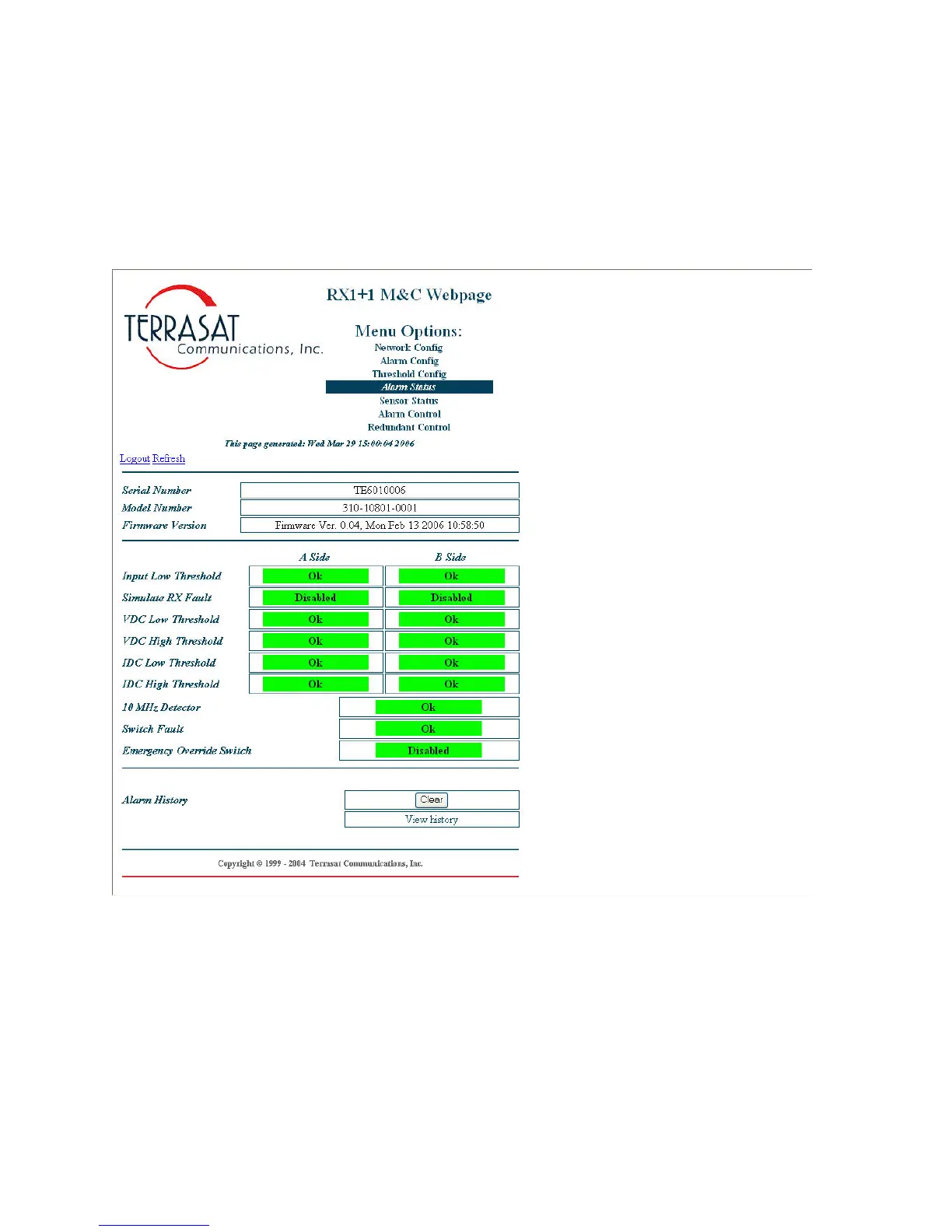

Figure 7-15 Alarm Status page
Refer to Table 7.10 Rx 1+1 Command Set for information regarding parameters and
valid values.
