IBUC Operation Manual 6-35
Terrasat Communications, Inc.
Rev. A
Alarm Config page:
This page allows the operator to configure the alarms as Minor, Major or None. Major
alarms are the ones that cause a summary alarm (relay closure) with the Form-C relay.
This is particularly important when operating in redundancy. Summary alarms are the
ones that will cause switchovers. It also allows operator to configure alarms as
suppressible. Suppressible alarms are the ones that will be suppressed when enabling
“Suppress Tx Fault” (see Transmit Config page).

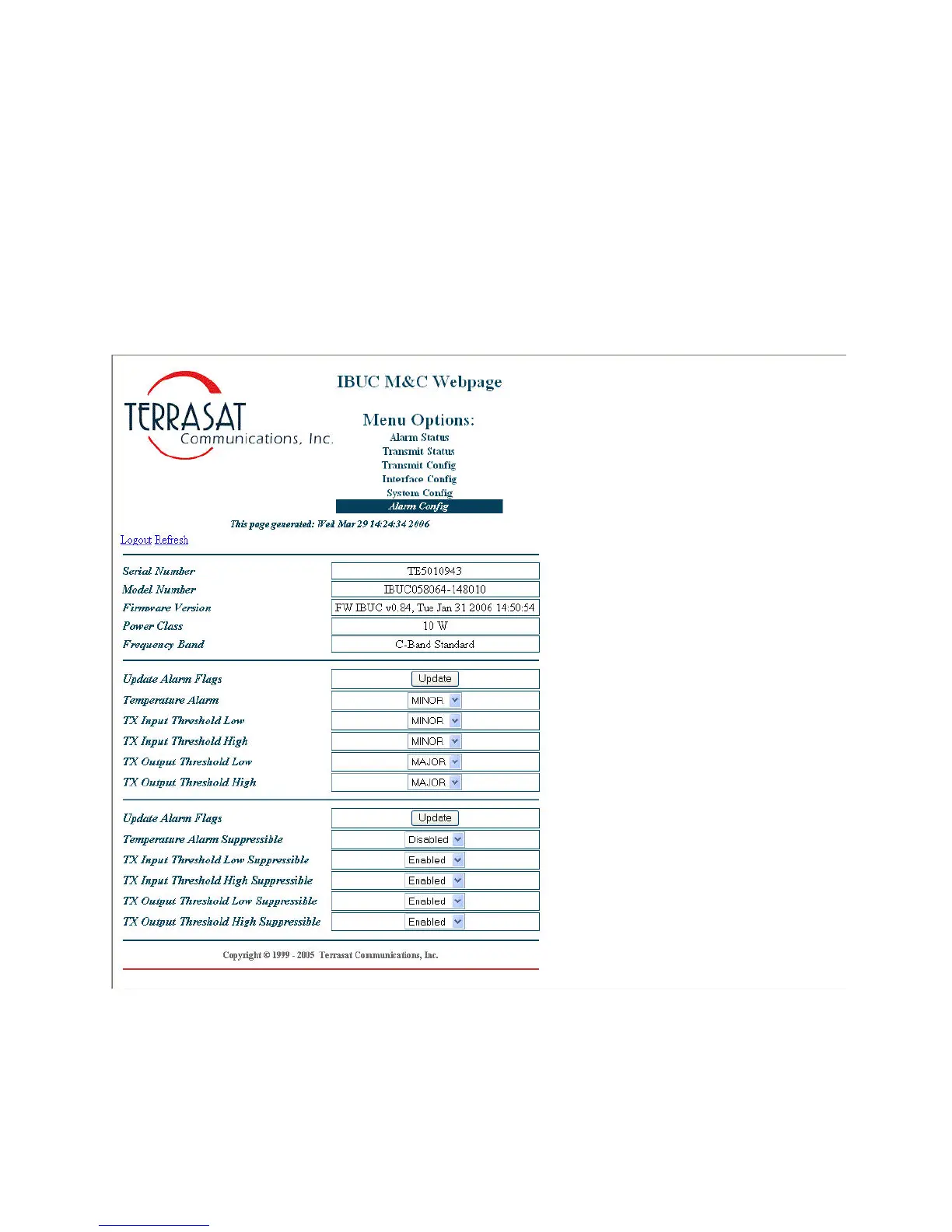

Figure 6-9 Alarm Config page
