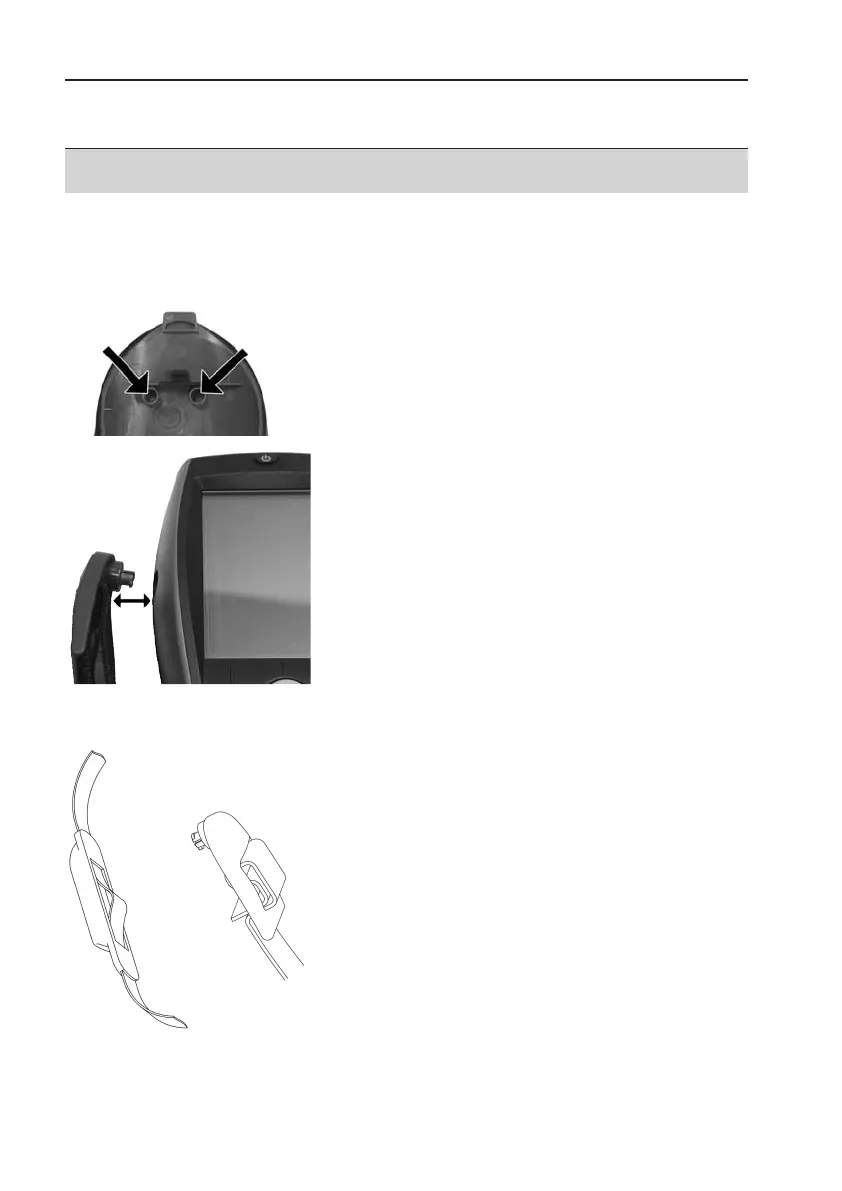

C.1.7 Carrying strap/ barcode pen holder
To secure the carrying strap:
1
Remove sealing caps from the sides of the
housing.
Fix ssealing ccaps oon tthe iinside oof tthe sservice ccover:
1 Place the measuring instrument on its front.
2 Pick the service cover up at the markings
(arrows) using your index finger and thumb and
press gently to release the lock.
3 Fold the service cover up and remove it.
4 Secure the sealing caps in the two holders on
the inside of the service cover (
).
5 Attach the service cover and engage it in place.
2
Engage the carrying strap clip in the fixing eyelets
on the side of the device. Note the guide groove.
The strap must point “down” (
).
To secure the barcode pen holder to the carrying strap:
1
Loosen the carrying strap at the buckle and
remove.
2
Lead carrying strap through the strap guide of the
barcode pen holder (
).
3
Lead carrying strap through the buckle (
) and tight-
en.
Placeholder:
Gurt-
klemme.tif
Placeholder:
Barcode-Hal-
terung.tif
Placeholder:
Halterung_Verschluss-
kappen.tif
Tragegurt.tif
