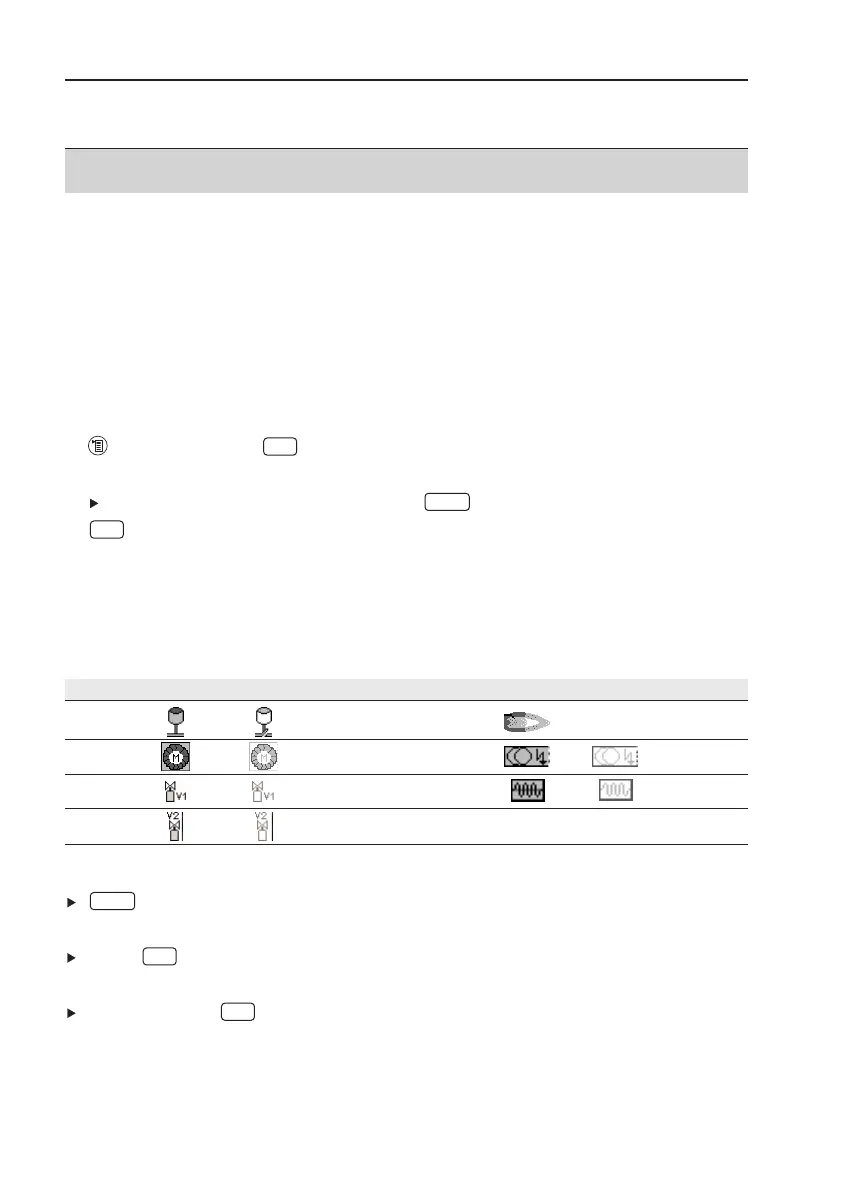

G.2.14 Burner control
With the help of the readout adapter for automatic furnaces (0554 1206), status data
and malfunction reports can be read out from compatible automatic furnaces, see also
documentation for readout adapter. The range of data which can be read out is depend-
ent on the automatic furnace type.
Calling up the function:
1
Connect readout adapter to the instrument (PS2 interface) and the automatic furnace
(use adapter ring if necessary).
2
Measurements Burner Control.
Option:
Display type and version of the adapter: .
3
.
- The data are read from the automatic furnace. An update of the data takes place
every 30s at the latest, this is dependent on the automatic furnace.
Reading out current status data:
The current data are displayed when a connection to the automatic furnace exists. The
following data are displayed with the help of symbols:
Component Status ON Status OFF Component Status ON Status OFF
Air controller Flame Symbol
not displayed
Motor Ignition
Valve1 Oil prewarmer
Valve 2
Printing data:
.
Display identification data:
Info .
Display failure statistic:
Failure statistic .
OK
OK
Print
OK
Adapt.
OK
G. Measuring
G.2 Measurements
45
