Page #15 background image

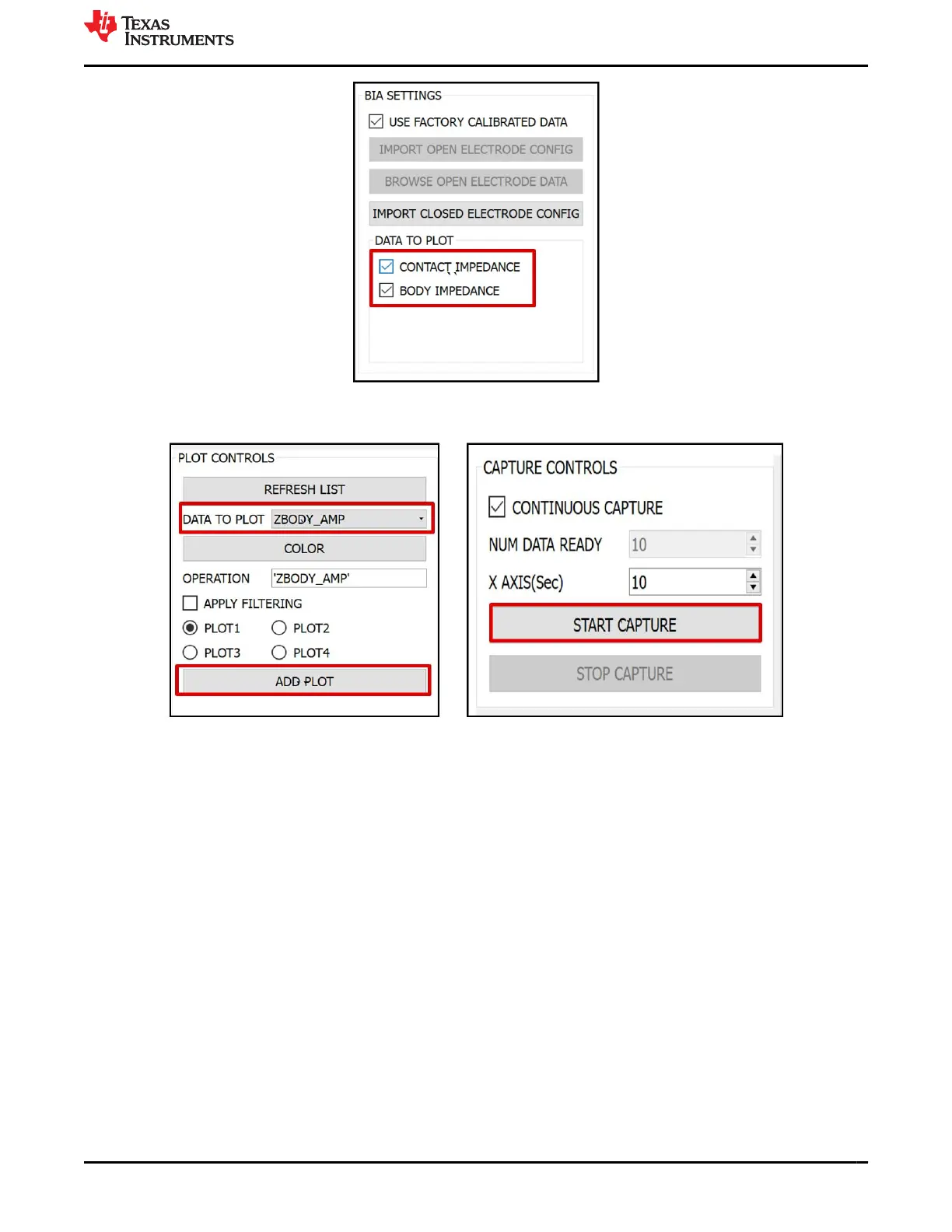

Figure 2-12. Selecting data that need to be added to plot controls data to plot drop down menu
• Select the signal source to be plotted and start capture as shown in Figure 2-13.
Figure 2-13. Selecting data to be plotted and stating capture
www.ti.com
EVM Software
SBAU370 – APRIL 2021
Submit Document Feedback
AFE4500 EVM User Guide 15
Copyright © 2021 Texas Instruments Incorporated
