GMII[x]_MRCLK (Input)
1
2
GMII[x]_RXD[3:0], GMII[x]_RXDV,
GMII[x]_RXER (Inputs)
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
www.ti.com
SPRS717H –OCTOBER 2011–REVISED MAY 2015

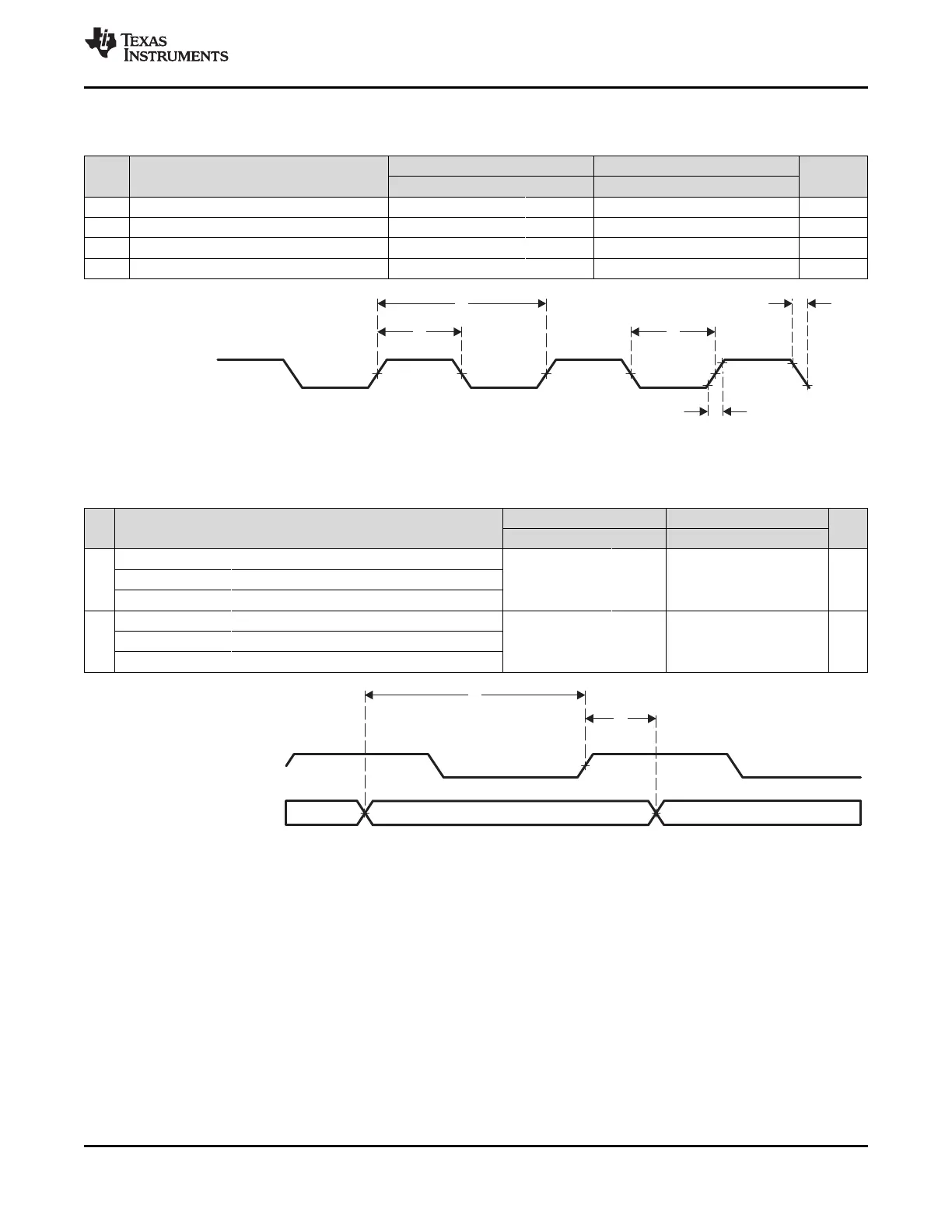

Table 7-10. Timing Requirements for GMII[x]_TXCLK - MII Mode
(see Figure 7-7)
10 Mbps 100 Mbps
NO. UNIT
MIN TYP MAX MIN TYP MAX
1 t
c(TX_CLK)
Cycle time, TX_CLK 399.96 400.04 39.996 40.004 ns
2 t
w(TX_CLKH)
Pulse duration, TX_CLK high 140 260 14 26 ns
3 t
w(TX_CLKL)
Pulse duration, TX_CLK low 140 260 14 26 ns
4 t
t(TX_CLK)
Transition time, TX_CLK 5 5 ns
Figure 7-7. GMII[x]_TXCLK Timing - MII Mode
Table 7-11. Timing Requirements for GMII[x]_RXD[3:0], GMII[x]_RXDV, and GMII[x]_RXER - MII Mode
(see Figure 7-8)
10 Mbps 100 Mbps
NO
UNIT
.
MIN TYP MAX MIN TYP MAX
t
su(RXD-RX_CLK)
Setup time, RXD[3:0] valid before RX_CLK
1 t
su(RX_DV-RX_CLK)
Setup time, RX_DV valid before RX_CLK 8 8 ns
t
su(RX_ER-RX_CLK)
Setup time, RX_ER valid before RX_CLK
t
h(RX_CLK-RXD)
Hold time RXD[3:0] valid after RX_CLK
2 t
h(RX_CLK-RX_DV)
Hold time RX_DV valid after RX_CLK 8 8 ns
t
h(RX_CLK-RX_ER)
Hold time RX_ER valid after RX_CLK
Figure 7-8. GMII[x]_RXD[3:0], GMII[x]_RXDV, GMII[x]_RXER Timing - MII Mode
Copyright © 2011–2015, Texas Instruments Incorporated Peripheral Information and Timings 121
Submit Documentation Feedback
Product Folder Links: AM3359 AM3358 AM3357 AM3356 AM3354 AM3352
