AS+
AS-
=
Rcp
Rcp
Cac
VDDS_DDR
0.1 µF
A1
A2
A3
AT
A2
A3
AT
A1
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
SPRS717H –OCTOBER 2011–REVISED MAY 2015
www.ti.com

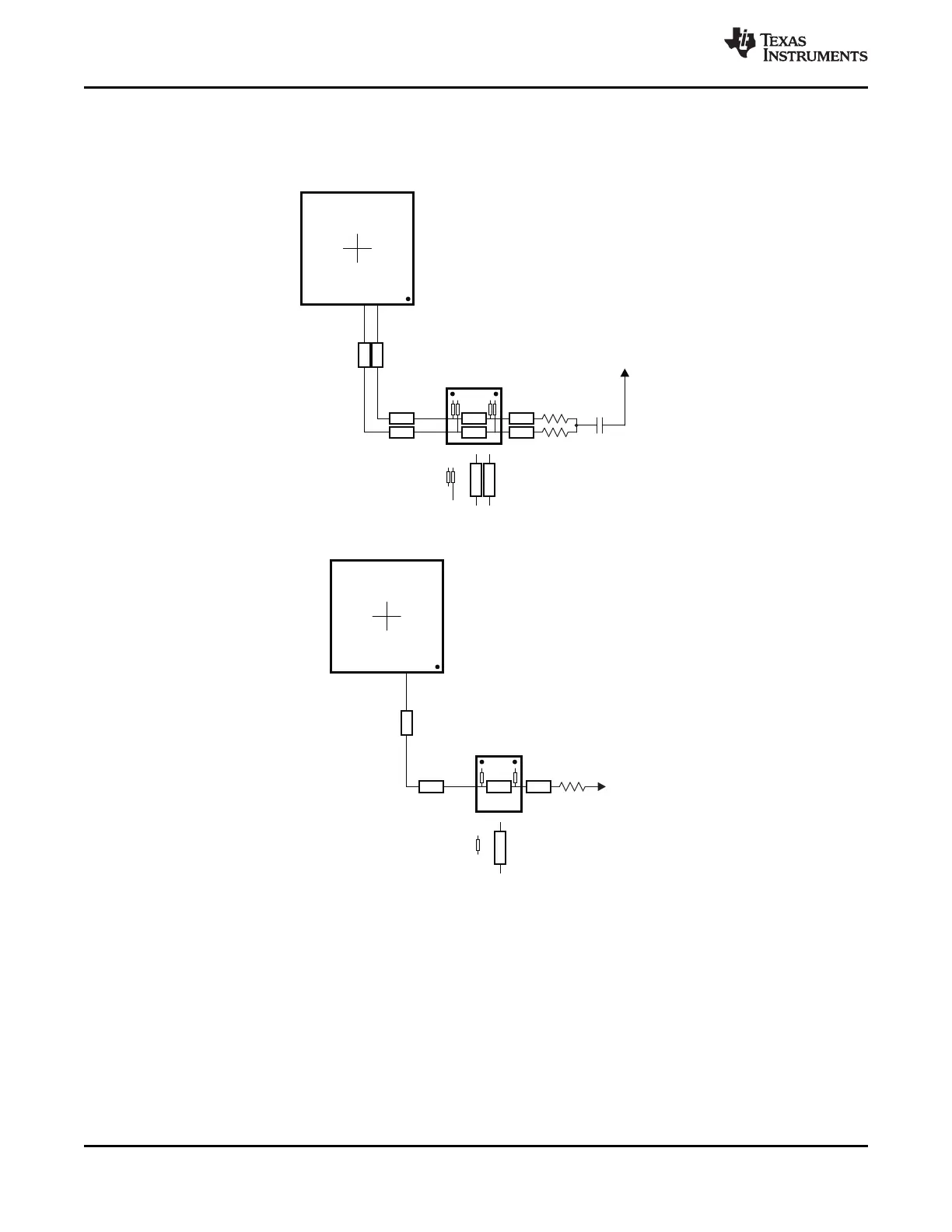

To save PCB space, the two DDR3 memories may be mounted as a mirrored pair at a cost of increased
routing and assembly complexity. Figure 7-56 and Figure 7-57 show the routing for CK and ADDR_CTRL,
respectively, for two DDR3 devices mirrored in a single-pair configuration.
Figure 7-56. CK Routing for Two Mirrored DDR3 Devices
Figure 7-57. ADDR_CTRL Routing for Two Mirrored DDR3 Devices
184 Peripheral Information and Timings Copyright © 2011–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: AM3359 AM3358 AM3357 AM3356 AM3354 AM3352
