Pulse Duration
50%
50% 50%
Pulse Duration
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
SPRS717H –OCTOBER 2011–REVISED MAY 2015 www.ti.com
7.15.2 UART IrDA Interface
The IrDA module operates in three different modes:
• Slow infrared (SIR) (≤115.2 Kbps)
• Medium infrared (MIR) (0.576 Mbps and 1.152 Mbps)
• Fast infrared (FIR) (4 Mbps).
Figure 7-115 illustrates the UART IrDA pulse parameters. Table 7-115 and Table 7-116 list the signaling
rates and pulse durations for UART IrDA receive and transmit modes.

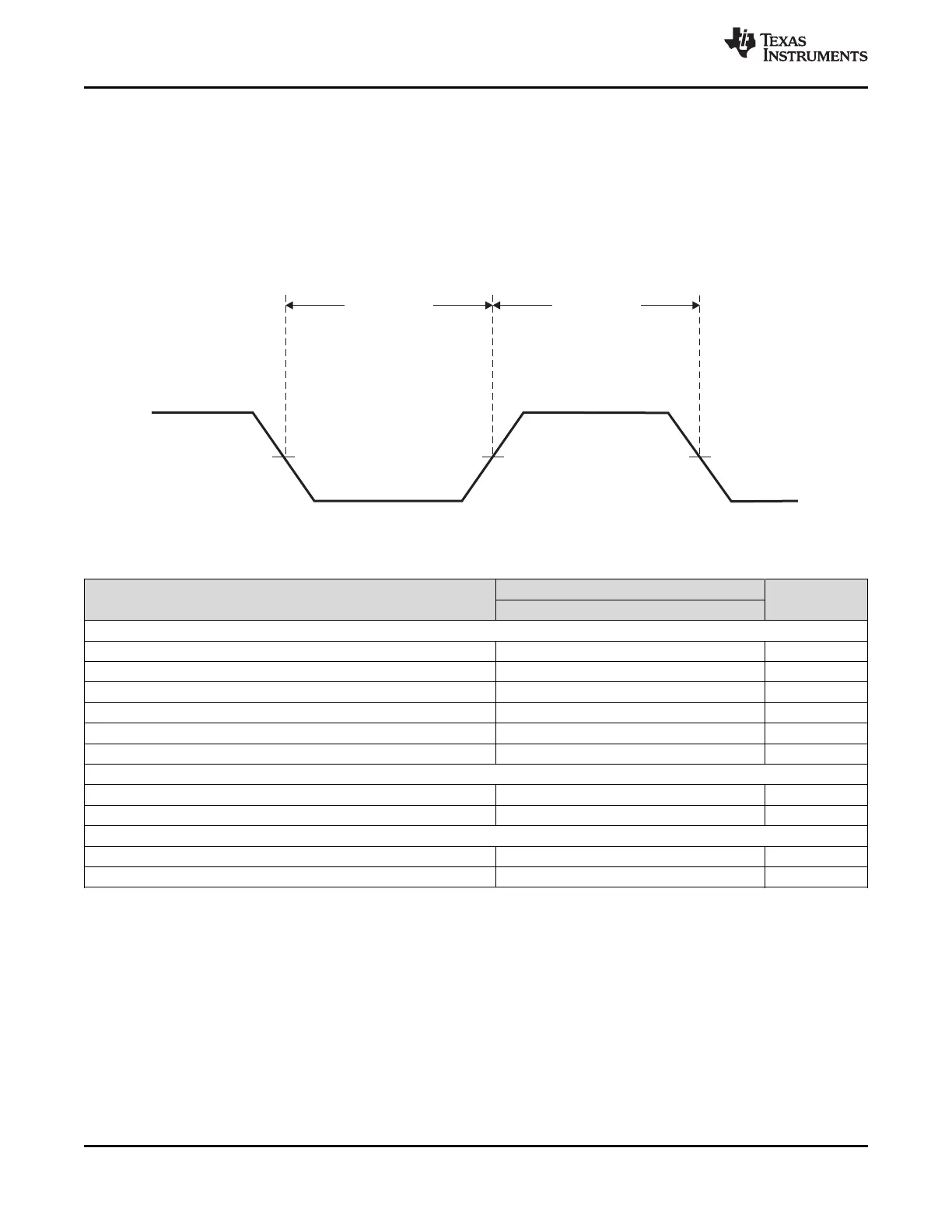

Figure 7-115. UART IrDA Pulse Parameters
Table 7-115. UART IrDA—Signaling Rate and Pulse Duration—Receive Mode
ELECTRICAL PULSE DURATION
SIGNALING RATE UNIT
MIN MAX
SIR
2.4 Kbps 1.41 88.55 µs
9.6 Kbps 1.41 22.13 µs
19.2 Kbps 1.41 11.07 µs
38.4 Kbps 1.41 5.96 µs
57.6 Kbps 1.41 4.34 µs
115.2 Kbps 1.41 2.23 µs
MIR
0.576 Mbps 297.2 518.8 ns
1.152 Mbps 149.6 258.4 ns
FIR
4 Mbps (single pulse) 67 164 ns
4 Mbps (double pulse) 190 289 ns
