www.ti.com
Introduction
7
SPRUI97D–May 2017–Revised September 2019
Submit Documentation Feedback
Copyright © 2017–2019, Texas Instruments Incorporated
AM571x Industrial Development Kit (IDK) Evaluation Module (EVM)
Hardware
1.2 System View
The system view of the AM571x IDK EVM consists of the main board and the camera board. There is also
an optional LCD panel and touch screen assembly that can be attached to the AM571x IDK EVM.
The top and the bottom views of the AM571x IDK EVM are provided in Figure 1 and Figure 2,
respectively.
The top view of the AM571x IDK EVM with the camera board installed is provided in Figure 3. The side
view of the AM571x IDK EVM with the optional LCD display assembly attached is provided in Figure 4.

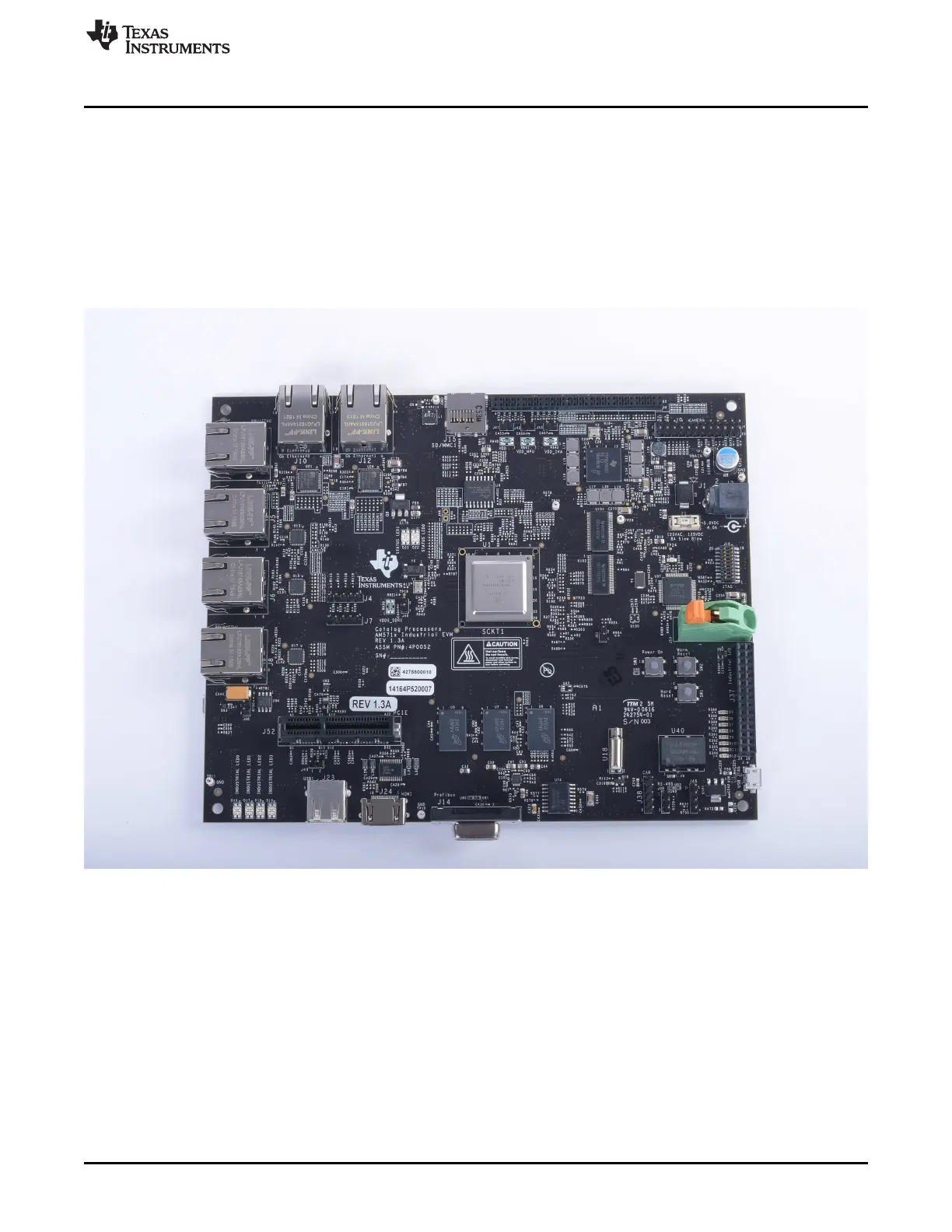

Figure 1. AM571x IDK EVM - Top View
