Texas Instruments MSP-EXP430FR5969 User Manual

+3.3V
P4.2
P4.3
P2.6
P2.4
P2.2
P3.4
P3.5
P3.6
P2.5
UART
RX
TX
Analog In
Analog In
SPI CLK
I2C*
SCL
SDA
A1h
TB0.1
UCA1RXD
UCA1SOMI
TB0.0
UCA1TXD
UCA1SIMO
A11
TA1.0
UCA1CLK
A7
C11
TB0.2
UCB0CLK
TB0.3
SMCLK
TB0.4
COUT
TB0.5
MSP-EXP430FR5969 Pin Map
+3.3V
GPIO (!)
GPIO (!)
(!)
(!)
(!)
(!)
(!)
(!)
(!)
(!)
(!)
GND
P1.2
P3.h
RST
P1.6
P1.5
P1.4
P1.3
P1.7
A2
TA1.1
TA0CLK
COUT
C2
A12
C12
TB0.3
UCB0SDA
TA0.1
TB0.4
UCB0SCL
TA1.0
UCB0SOMI
A5
TB0.2
UCA0CLK
C5
A4
TB0.1
UCA0STE
C4
A3
TA1.2
UCB0STE
C3
UCB0SIMO
SPI
MOSI
MISO
SPI CS Wireless
SPI CS Display
SPI CS Other
BoosterPack Standard
GND
NC
RST
PWM Out
GPIO (!)
GPIO (!)
GPIO (!)
GPIO (!)
GPIO (!)
(!)
(!)
(!)
(!)
(!)
(!)
(!)
MSP-EXP430FR5969 Pin Map
BoosterPack
Standard
Below are the pins exposed at the BoosterPack connector
Also shown are functions that map with the BoosterPack standard.
* Note that to comply with the I2C channels of the BoosterPack standard, a software-emulated I2C must be used.
** Some LaunchPads do not 100% comply with the standard. Please check your LaunchPad to ensure compatability.
(!) Denotes I/O pins that are interrupt-capable.
GPIO**
www.ti.com Hardware
While most BoosterPacks are compliant with the standard, some are not. The FR5969 LaunchPad is
compatible with all 20-pin BoosterPacks that are compliant with the standard. If the reseller or owner of
the BoosterPack does not explicitly indicate compatibility with the FR5969 LaunchPad, you should
compare the schematic of the candidate BoosterPack with the LaunchPad to ensure compatibility. Keep in
mind that sometimes conflicts can be resolved by changing the FR5969 device pin function configuration
in software. More information about compatibility can be found at http://www.ti.com/launchpad.

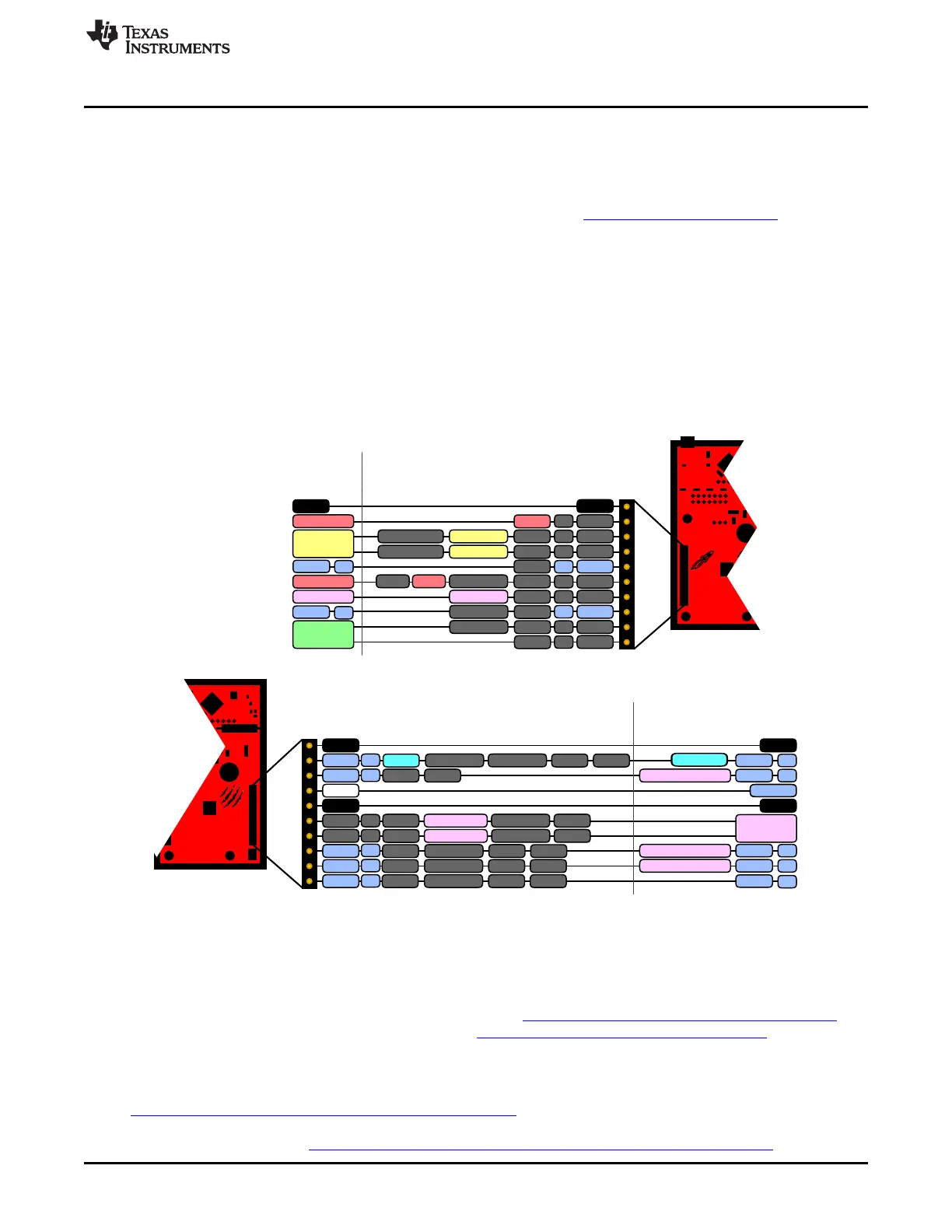

Figure 15 shows the 20-pin pinout of the FR5969 LaunchPad.
Note that software's configuration of the pin functions plays a role in compatibility. The FR5969
LaunchPad side of the dashed line shows all of the functions for which the FR5969 device's pins can be
configured. This can also be seen in the MSP430FR5969 data sheet. The BoosterPack side of the dashed
line shows the standard. The FR5969 function whose color matches the BoosterPack function shows the
specific software-configurable function by which the FR5969 LaunchPad adheres to the standard.
Figure 15. FR5969 LaunchPad to BoosterPack Connector Pinout
2.6 Design Files
A complete schematic is available in Section 6. All hardware design files including schematics, layout, bill
of materials (BOM), and Gerber files are available in the MSP-EXP430FR5969 Hardware Design Files.
The software examples are made available in the MSP-EXP430FR5969 Software Examples. For more
information on the software examples, see Section 3.
The MSP-EXP430FR5969 LaunchPad was designed in Mentor Graphics PADS schematic and layout. A
free viewer is available to see both the schematic and layout files on the Mentor Graphics website at
http://www.mentor.com/pcb/downloads/pads-pcb-viewer. A full time-limited version of PADS is available
online for free. This version has complete functionality until the 30 day license expires. This version can be
downloaded directly from http://www.mentor.com/pcb/product-eval/pads-download-evaluation.
21
SLAU535B–February 2014–Revised July 2015 MSP430FR5969 LaunchPad™ Development Kit (MSP ‑ EXP430FR5969)
Submit Documentation Feedback
Copyright © 2014–2015, Texas Instruments Incorporated
