Teze TW-EOR48 - Display Panel Icons and Functions; Inverter Display Panel Icon Guide; Inverter Display Function Icons

48 pages

To Next Page

To Previous Page

Add: Building A, Xinlida Industrial Park, Junzibu Village,Guanlan Street, Longhua District ,Shenzhen,

Guangdong

TEL :0755-23225527 FAX:0755-23225537

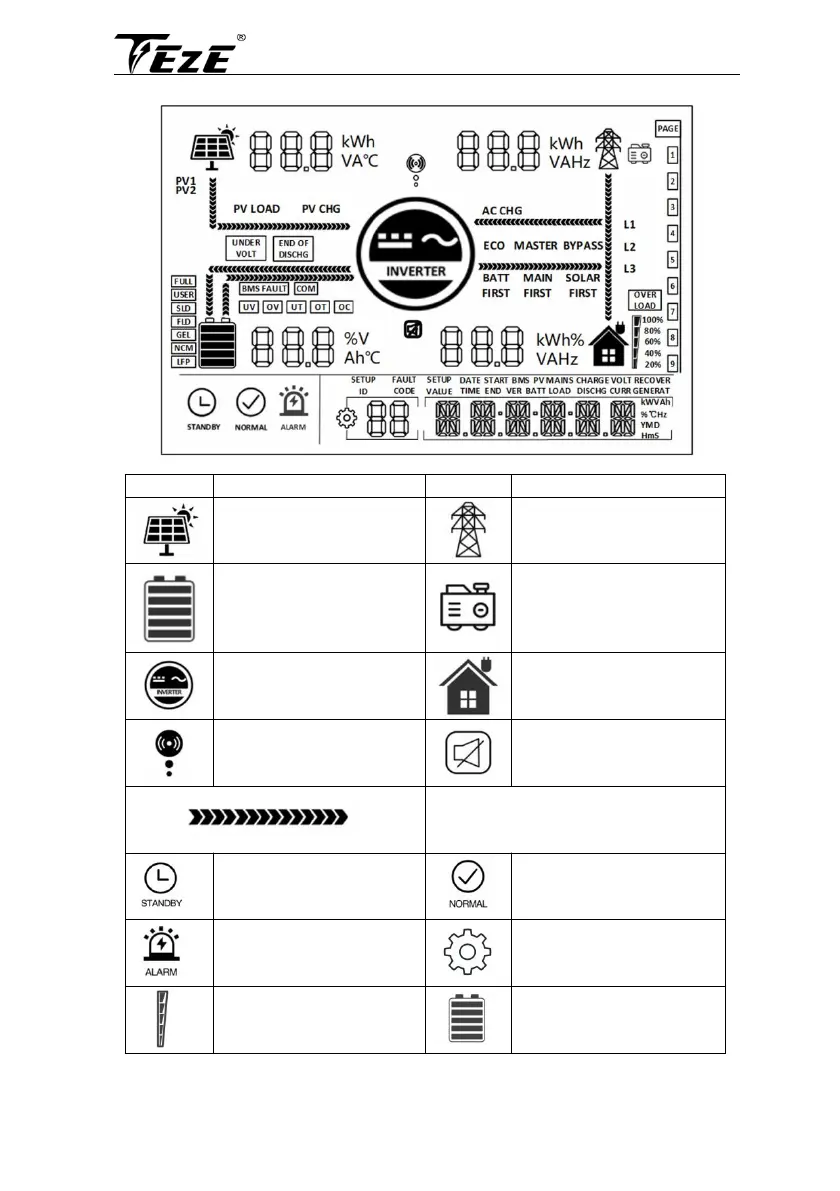

• Display panel

Icons

Functions

Icons

Functions

Indicates the PV panel

Indicates the utility grid

Indicates the battery

Indicates the generator

Indicates the inverter is

working

Indicates the home load

Indicates the inverter is

communicating with data

collector

Indicates the buzzer muted

Indicates the direction of energy flow

Indicates the inverter is

standby

Indicates the inverter is working

normally

Indicates error occur

Indicates setting

Indicates load power

80%~100%

Indicates battery SOC

80%~100%
