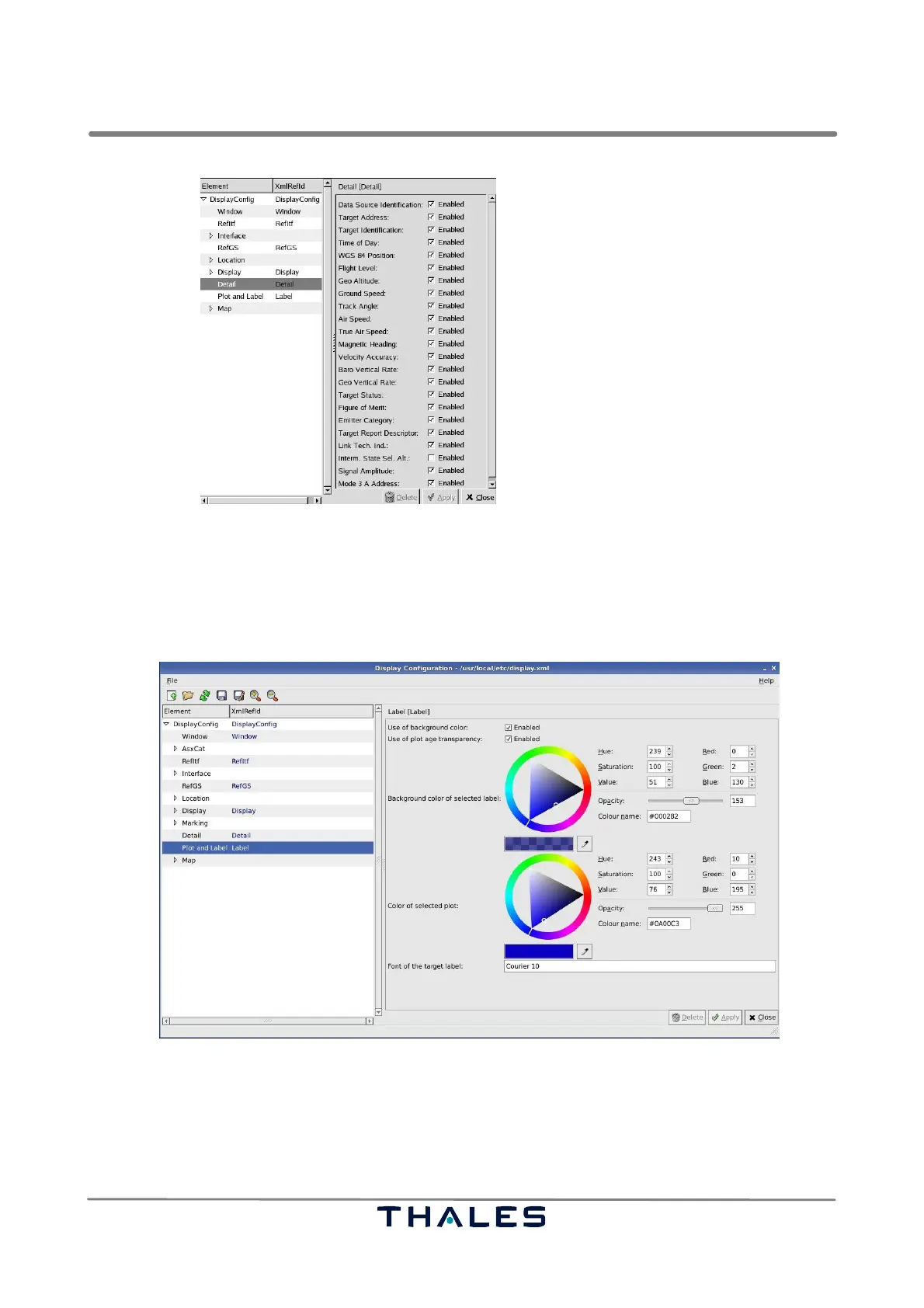

Fig. 4−79 Parameters Detail (example)
4.5.7.15 Plot and Label Parameters
The parameter panel Plot and Label, see Fig. 4−80, is used to configure the colors and fonts for plots
and labels representing targets on the Technical Situation Display.
Fig. 4−80 Parameters Plot and Label
S Use of background color: gives the possibility to enable or disable the background color for the
targets’ label in the Technical Situation Display.
S Use of plot age transparency: indicates, if target plots and target label will fade out slowly, if becom-
ing older or if plots and labels shall disappear suddenly, when the target’s history age expires.
