AS 680/682
Supervisor Operation Description, Operation and Maintenance
ADS−B
5−36 Ed. 10.07
5.4.13.6.2 Download FOM/PA Restriction Table
The ’Download’ of the ’FOM P/A Restriction Table’ is done in the same way then described for the
’NVRAM Configuration’ in the previous section 5.4.13.6.1 . Fig. 5−29 shows an example of a ’down-
loadFomPaRestriction’ terminal window.

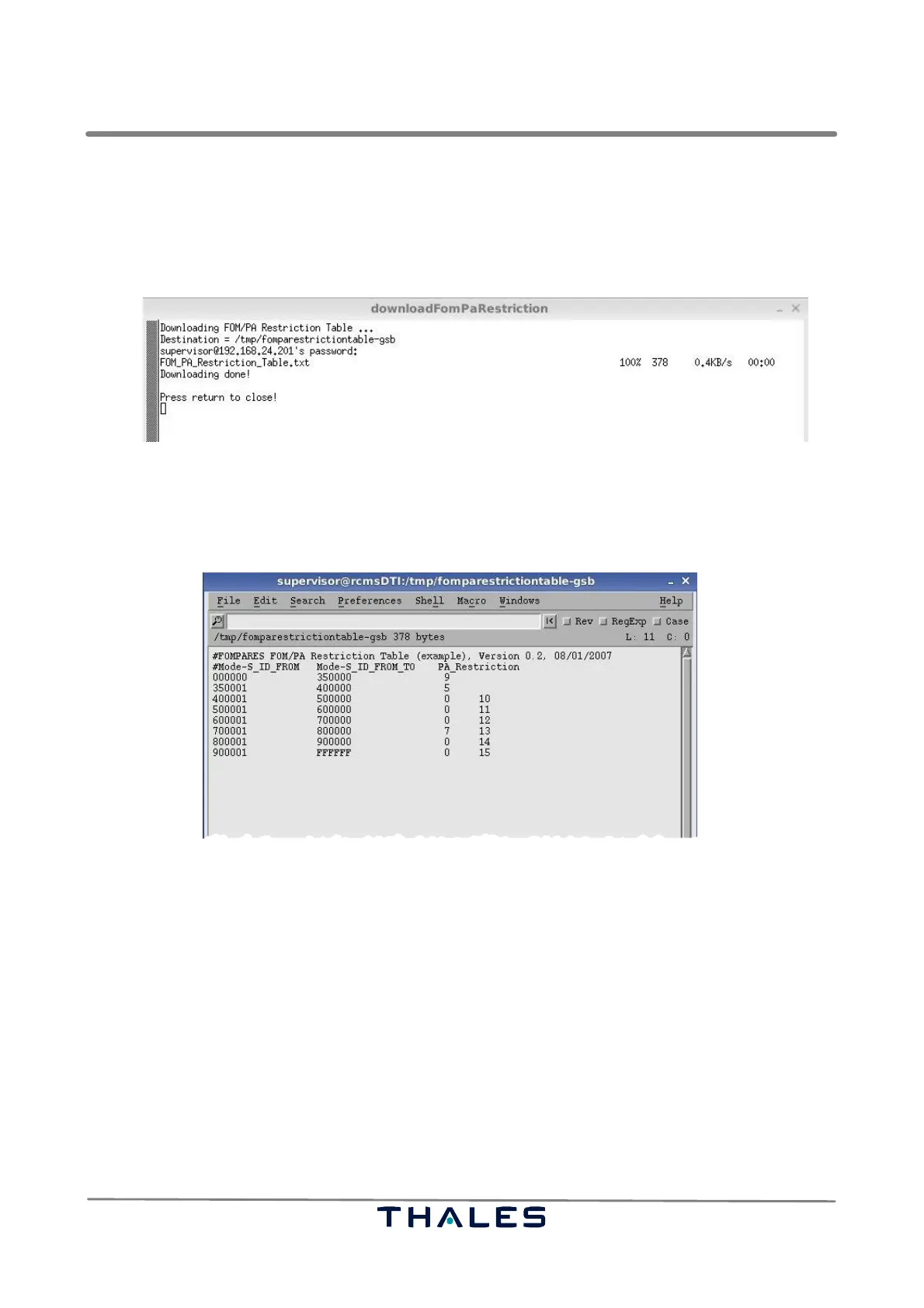

Fig. 5−29 Download FOM/PA Restriction Table (example)
The contents of the table stored in the destination file can be edited (see Fig. 5−30). Call an editor
within a ’Terminal’ window and enter the command: nedit <destination file>.
Fig. 5−30 Extract of a FOM/PA Restriction Table file (example)
