Thecus N5500 User Manual

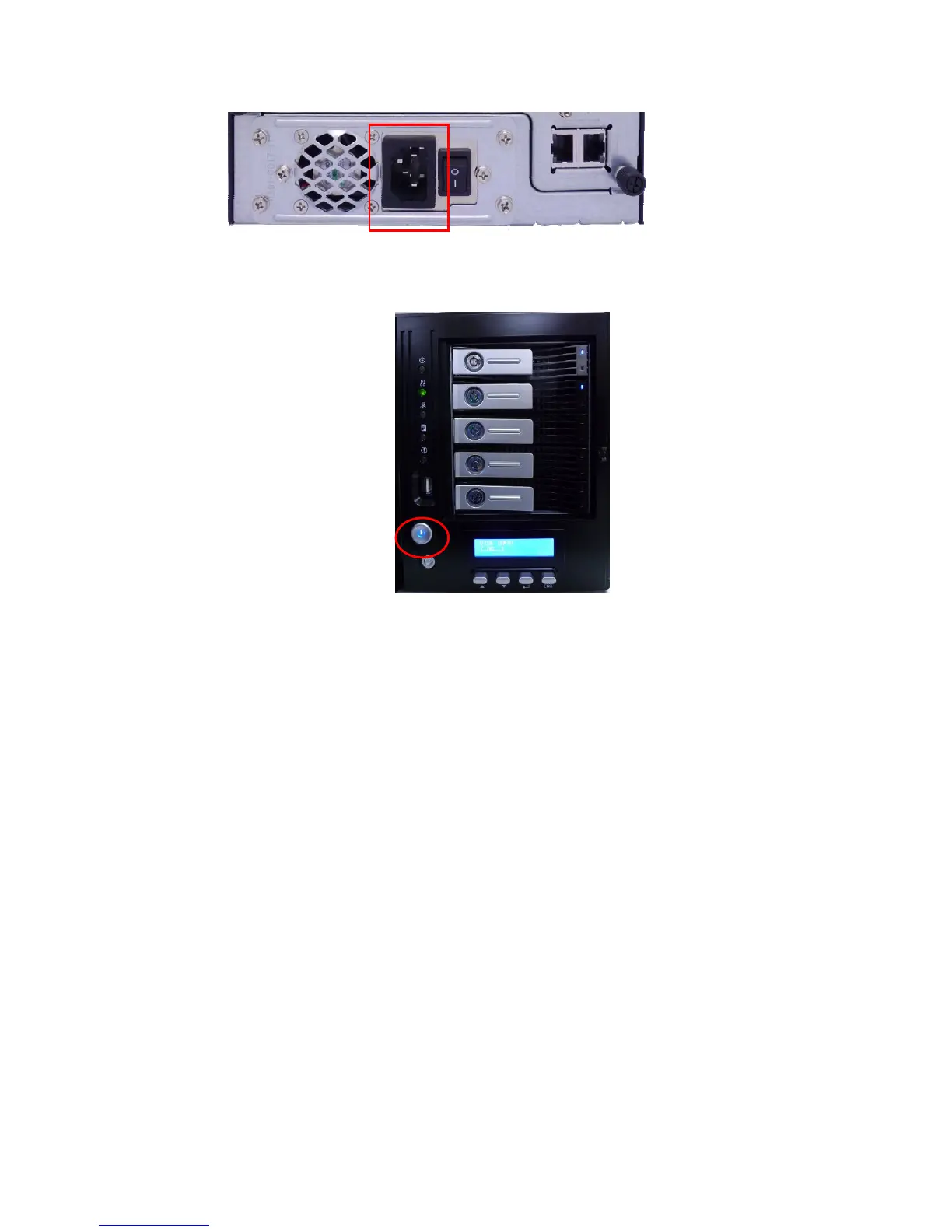

3. Press the power button on the Front Panel to boot up the N5500.
Checking System Status
After making connections on the N5500 and powering up, check whether the system
status is normal or has trouble by observing indicators on the front panel and hard
disk trays.
System Status Normal
The system status is normal if:
1. The WAN and LAN LEDs glow green (assuming both are connected).
2. The Power LED on the Front Panel glows blue.
3. The HDD Power LED on each HDD tray glows blue (assuming all disks are
installed).
4. The default IP address of the WAN port is 192.168.1.100 displayed on LCD.
16

Thecus N5500 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	EXT3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	0 TB
Maximum supported storage capacity	10 TB
Number of storage drives installed	0
Number of storage drives supported	5
Flash memory	128 MB
Internal memory	1 GB
Internal memory type	DDR2
Processor frequency	1.86 GHz
Supported network protocols	TCP/IP, CIFS/SMB, AFP, NFS, HTTP, HTTPS, FTP, FTP-SSL/TLS
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	2
Dimensions (WxDxH)	190 x 240 x 230 mm
Management platform	Linux
Compatible operating systems	Windows 7/2000/XP/2003/Vista UNIX/Linux Mac OS 9 / X
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Power supply unit (PSU) capacity	200 W

Weight and Dimensions

Weight	7200 g
