cutmaster 102
Manual 0-4998 5-3 SERVICE
5.04 Fault Indicator
At initial power up, two lights will temporarily illu-
minate for 2-3 seconds to show the version of software
used.

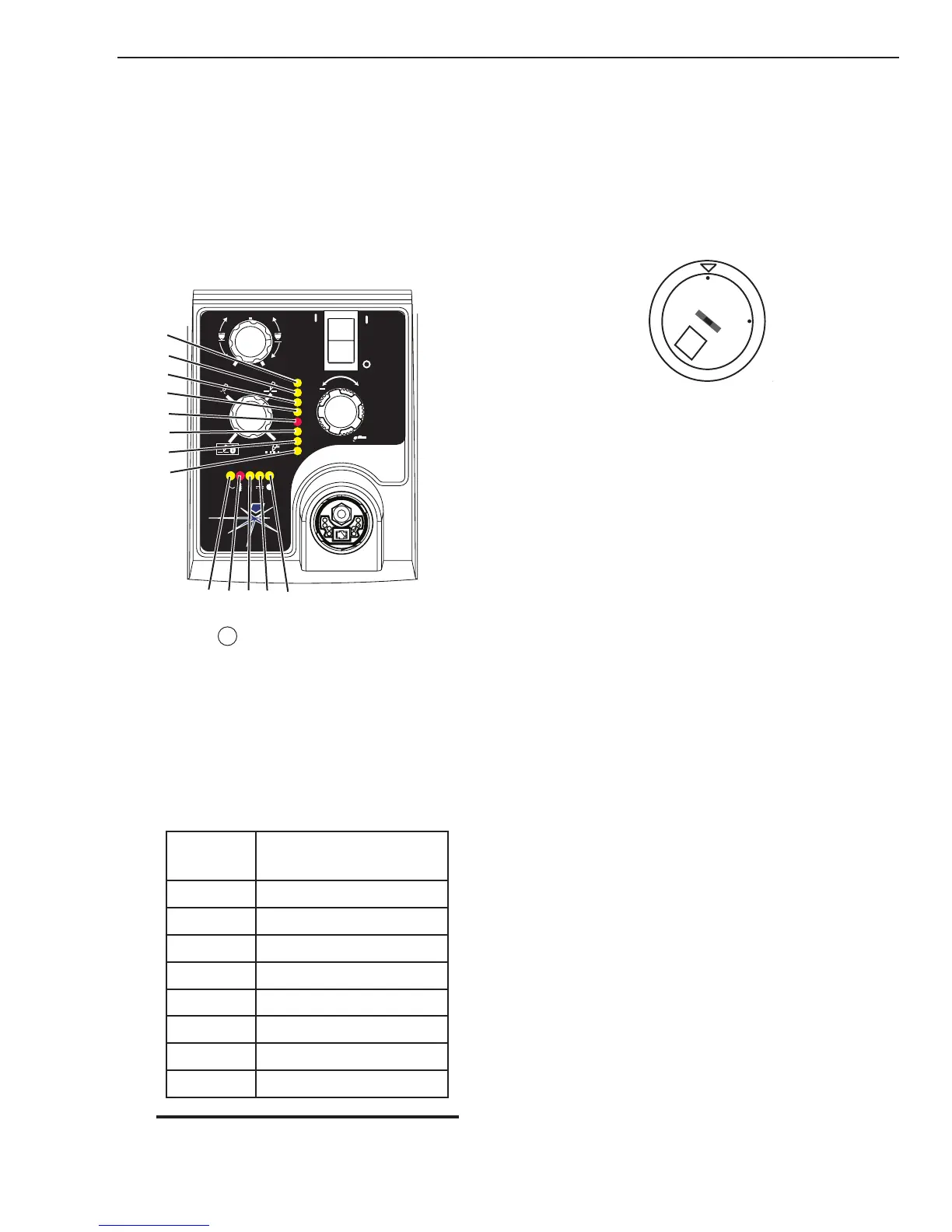

To determine the first digit, count the function indicators
left to right, 1 through 5. To determine the second digit
count the pressure indicators, reading from bottom to
top, 0 through 7. In the example below the Temp indica-
tor and 75 psi indicators are on indicating the version
would be 2.3.
A
+
PSI BAR
MAX MAX
MIN MIN
!
1
2
3
4
Art# A-07988
MIN
MAX
0
1
2
3
4
5
6
7
5
When the
"Fault" indicator is on or blinking it
will be accompanied by one of the pressure indica-
tor lights depending on what the Fault is. Only one
of these faults will be displayed at one time. If more
than one fault exists, when the first fault is corrected
and cleared, the next fault will then be displayed. It
is possible to have a fault indicated in the function
indicators and another fault indictated in the pres-
sure indicators. The following table shows each of
the Faults possible.
Pressure
Indicator
Fault
Max Over Pressure
90 Internal Error
85 Shorted Torch
80 Consumables Missing
75 Start Error
70 Parts in Place
65 Input Power
Min Under Pressure
NOTE
Fault explantions are covered in the basic trouble-
shooting guide later in this chapter.
Explanation of Faults
UNDER PRESSURE: Indicates that operating pres-
sure is set too low and power supply output
power will be disabled.
INPUT POWER: Indicates primary line voltage is
outside the operating limits of the power supply
as selected by the setting of INPUT VOLTAGE
SELECTION SWITCH at the rear of the unit. Low
is 208/230 VAC and high is 460 VAC.
PART IN PLACE: Indicates that the shield cup is not
properly installed or tightened.
START ERROR: Indicates that the START SIGNAL
was active (ie. Torch Trigger depressed, hand
held pendant switch on or CNC signal for torch
on) during one of three (3) conditions:
1) During initial power up when ON/OFF
switch is turned to ON position
2) When fault which had been disabling the
system is cleared.
3) When the FUNCTION CONTROL SWITCH
Mode is moved from SET position to any of
the other three (3) modes of operation.
CONSUMABLES MISSING: Indicates that the elec-
trode, start cartridge or tip is missing or exces-
sively worn.
SHORTED TORCH (OUTPUT FAULT): This indicator
has two modes of operation:
First is the latched Fault mode. The 85 PSI LED blinks
at 1 cycle per second, indicating that one of two
fault conditions exist.
1) A shorted condition in the torch , leads or
consumables.
2) Low or no output voltage from the inverter
circuits.
In both cases, to reset the machine, turn the unit
OFF, indentify and clear the problem and turn
back ON.
