Manual 0-2962 2-1 INTRODUCTION
SECTION 2:
INTRODUCTION
2.01 Scope of Manual
This manual contains descriptions, operating instructions
and maintenance procedures for the 1Torch Models SL60
and SL100 Plasma Cutting Torches. Service of this equip-
ment is restricted to properly trained personnel; unquali-
fied personnel are strictly cautioned against attempting
repairs or adjustments not covered in this manual, at the
risk of voiding the Warranty.
Read this manual thoroughly. A complete understanding
of the characteristics and capabilities of this equipment
will assure the dependable operation for which it was
designed.
2.02 General Description
Plasma torches are similar in design to the automotive
spark plug. They consist of negative and positive sections
separated by a center insulator. Inside the torch, the pilot
arc starts in the gap between the negatively charged elec-
trode and the positively charged tip. Once the pilot arc
has ionized the plasma gas, the superheated column of
gas flows through the small orifice in the torch tip, which
is focused on the metal to be cut.
A single torch lead provides gas from a single source to be
used as both the plasma and secondary gas. The air flow
is divided inside the torch head. Single - gas operation
provides a smaller sized torch and inexpensive operation.
NOTE
Refer to Section 2.05, Introduction To Plasma, for a
more detailed description of plasma torch opera-
tion.
Refer to the Appendix Pages for additional specifi-
cations as related to the Power Supply used.
2.03 Specifications

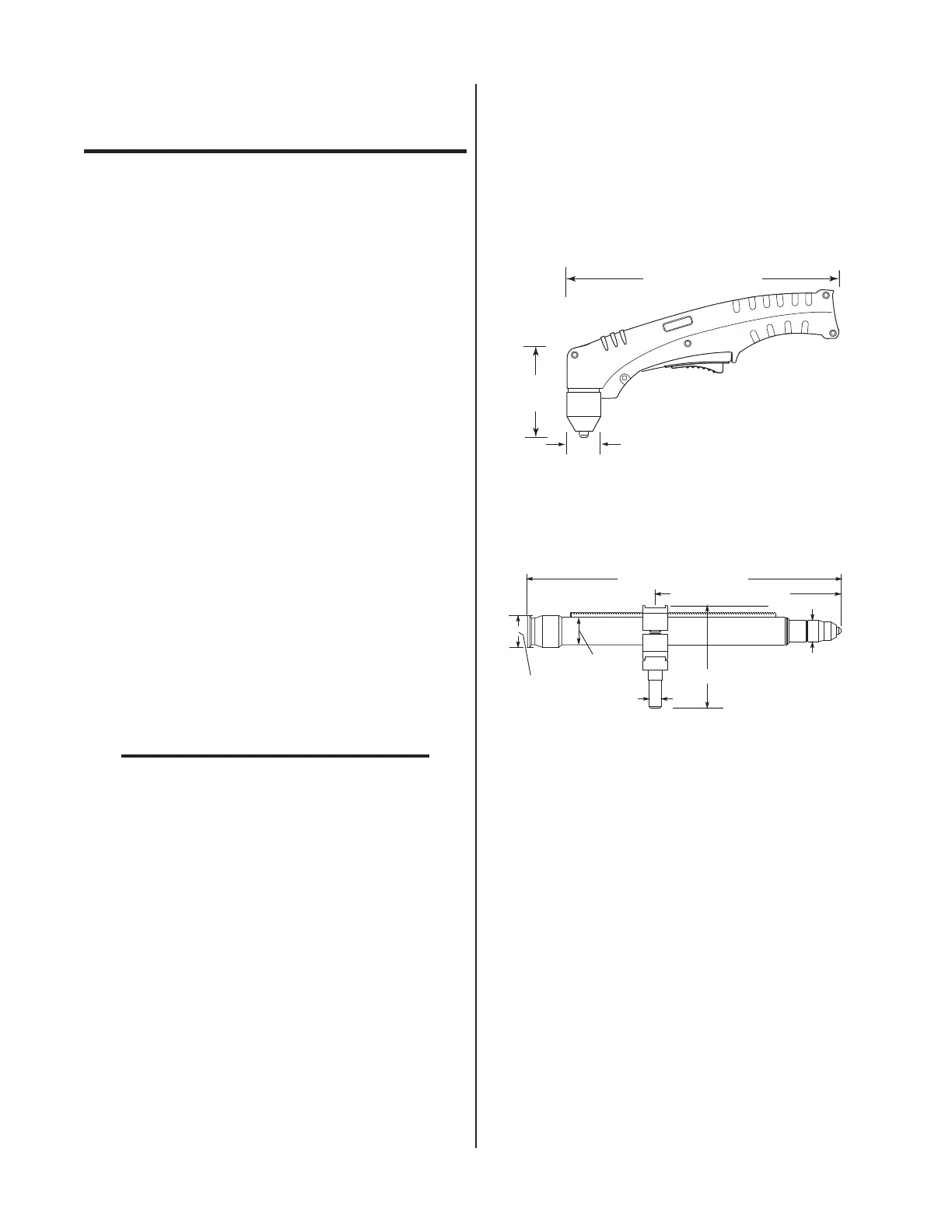

A. Torch Configurations
1. Hand Torch, Models SL60 and SL100
The hand torch head is at 75° to the torch handle.
The hand torches include a torch handle and torch
trigger assembly.
9.5" (241 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322
2. Machine Torch, Model SL100
The standard machine torch has a positioning tube
with rack & pinch block assembly.
Art # A-02998
1.75" /
44.5 mm
1.375" / 35 mm
15.875" / 403 mm
0.625" /
16 mm
4.95" / 126 mm
1.175" / 30 mm
9.285" / 236 mm
B. Torch Leads Lengths
Hand Torches are available as follows:
• 20 ft / 6.1 m, with O2B or ATC connectors
• 50 ft / 15.2 m, with O2B or ATC connectors
Machine Torches are available as follows:
• 5 foot / 1.5 m, with ATC connectors
• 10 foot / 3.05 m, with ATC connectors
• 25 foot / 7.6 m, with O2B or ATC connectors
• 50 foot / 15.2 m, with O2B or ATC connectors
C. Torch Parts
Starter Cartridge, Electrode, Tip, Shield Cup
D. Parts - In - Place (PIP)
Torch Head has built - in switch
12 vdc circuit rating
