Manual 0-2962 3-1 INSTALLATION
SECTION 3:
INSTALLATION
3.01 Introduction
This section describes installation of the Torch. These
instructions apply to the Torch and Leads Assemblies
only; installation procedures for the Power Supply, Op-
tions and Accessories are given in Manuals specifically
provided for those parts.
The complete installation consists of:
• Site Selection
• Unpacking
• Setting Up Torch
• Connecting Torch
• Gas Connection
3.02 Site Location
Select a clean, dry location with good ventilation and ad-
equate working space around all components.
Review the safety precautions in the front of this manual
to be sure that the location meets all safety requirements.
3.03 Unpacking
Each component of the system is packaged and protected
with a carton and packing material to prevent damage
during shipping.
1. Unpack each item and remove all packing material.
2. Locate the packing list and use the list to identify and
account for each item.
3. Inspect each item for possible shipping damage. If
damage is evident, contact your distributor and / or
shipping company before proceeding with system
installation.
3.04 Setting Up Hand Torch
The hand torch requires no special set up. The proper
torch parts (shield cup, tip, starter cartridge, and elec-
trode) must be installed for the type of operation. Refer
to Section 4.04, Torch Parts Selection for details.
3.05 Setting Up Machine Torch
WARNING
Disconnect primary power at the source before dis-
assembling the torch or torch leads.
The machine torch includes a positioning tube with rack
and pinch block assembly.
1. Mount the torch assembly on the cutting table.
2. To obtain a clean vertical cut, use a square to align
the torch perpendicular to the surface of the work-
piece.

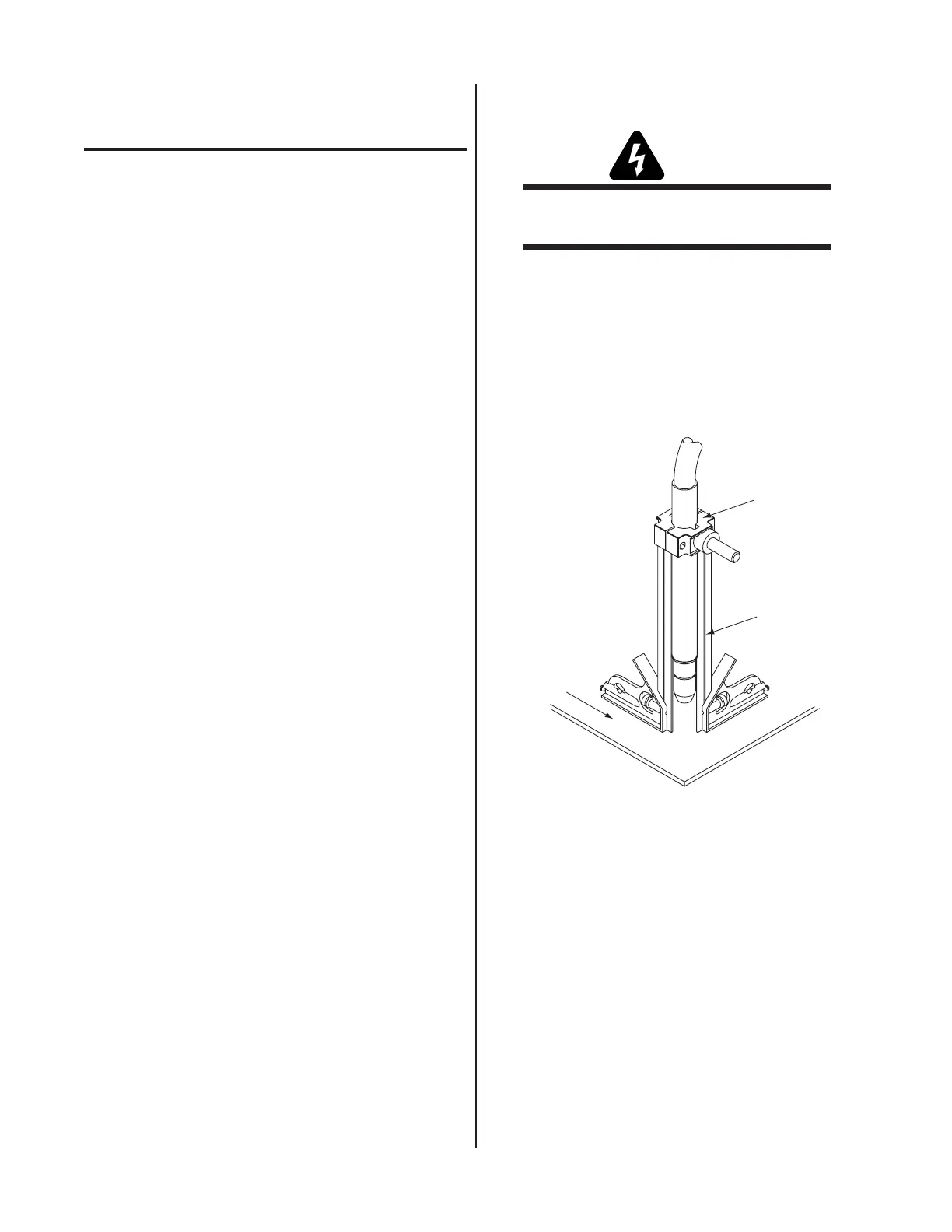

A-02585
Workpiece
Square
Pinch Block
Assembly
Machine Torch Set - Up
3. The proper torch parts (shield cup, tip, starter
cartridge, and electrode) must be installed for the
type of operation. Refer to Section 4.04, Torch
Parts Selection for details.
To Next Page
