ThinkPad S230u - System Board Replacement

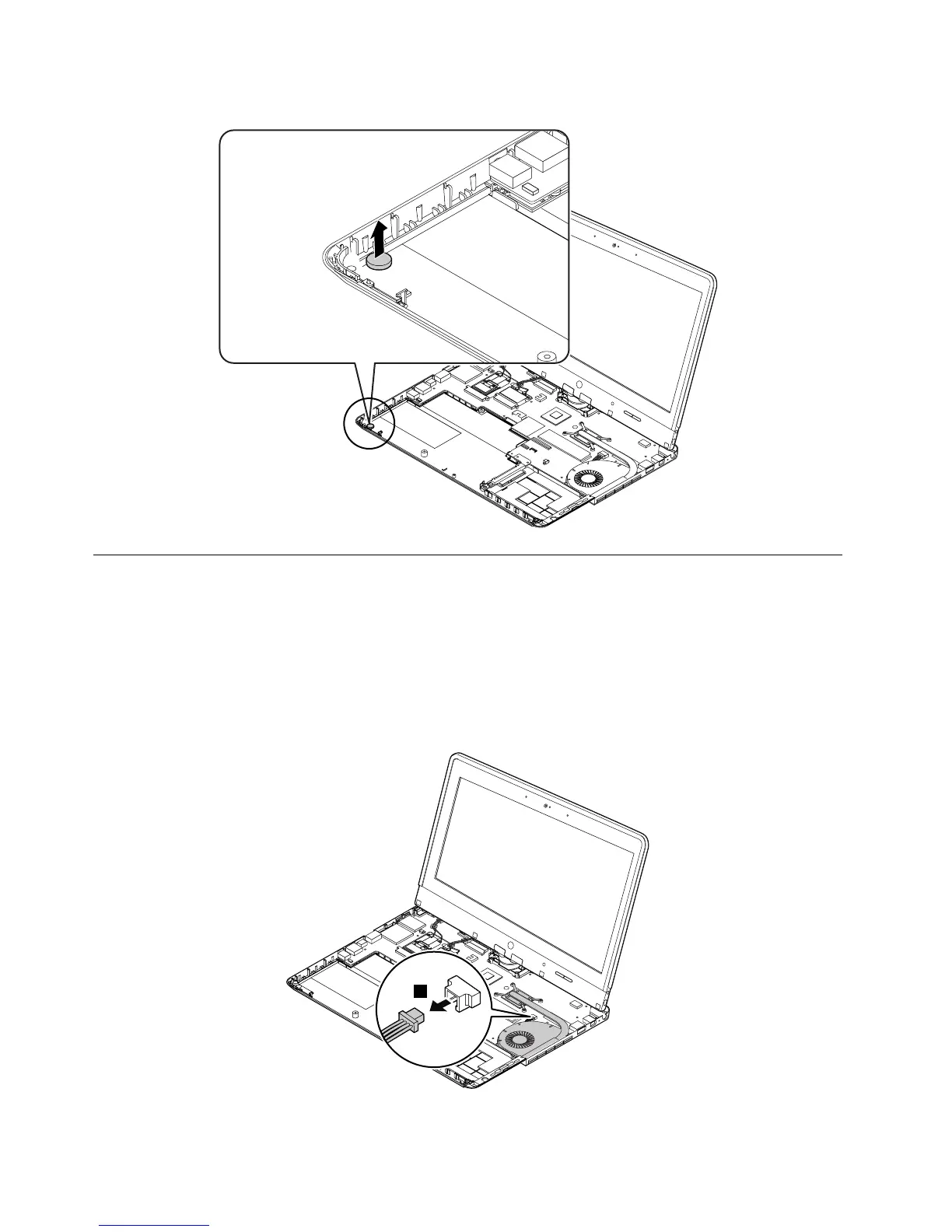

Removalstepsofreplacementrubberforproximitysensor
1080Thermalfanassemblyandharddiskdriveorsolid-statedrive
connector
Foraccess,removetheseFRUsinorder:
•“1010Harddiskdriveorsolid-statedrive”onpage60
•“1020Keyboard”onpage62
•“1050Keyboardbezel,backupbattery,andspeakerassembly”onpage68
•“1060Batterypack”onpage71
Removalstepsofthermalfanassembly
1
Wheninstalling:Ensurethattheconnectorisattachedrmly.
74HardwareMaintenanceManual
