ThinkPad S230u - 2030 Button Board

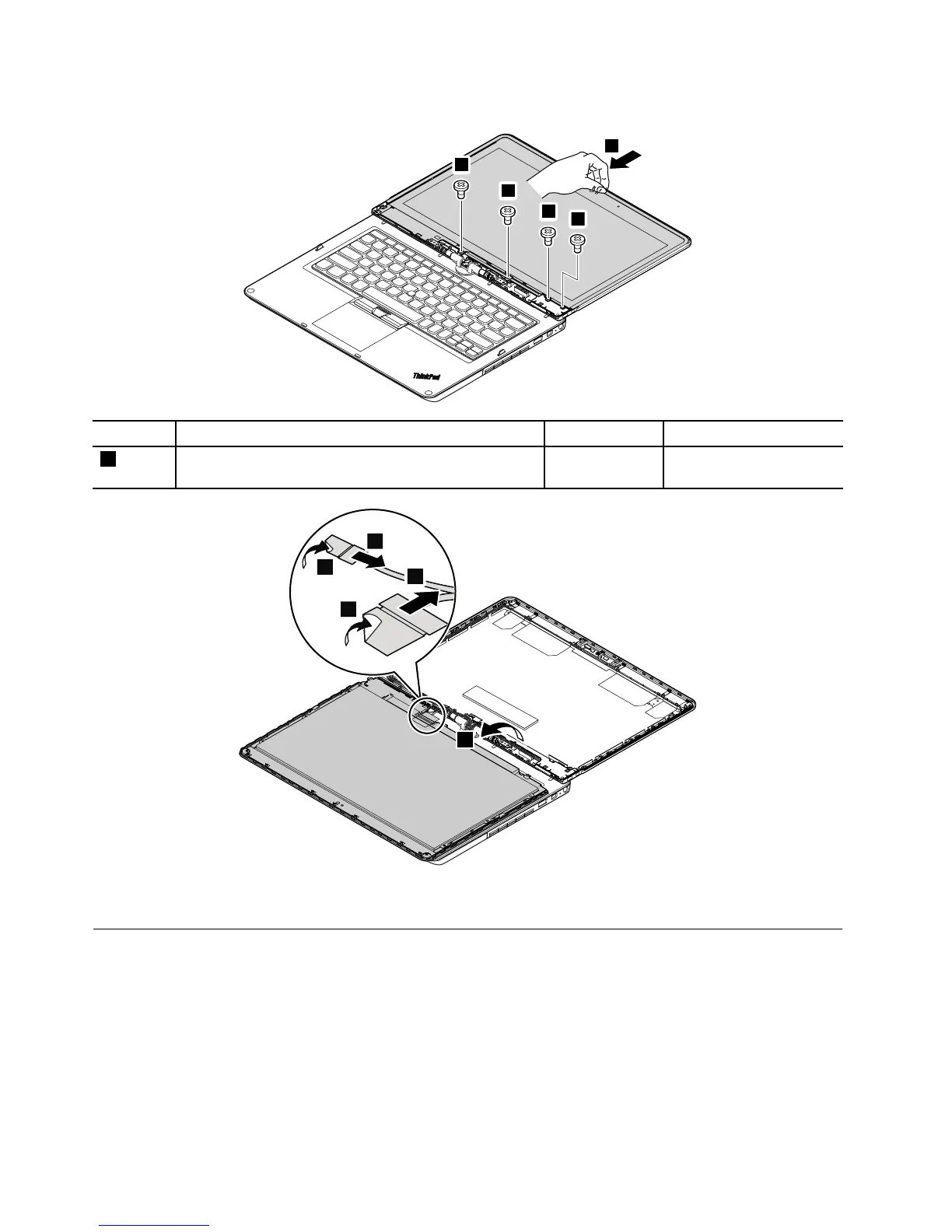

RemovalstepsofLCDpanel
1
1
1
1
2
StepScrew(quantity)Color
Torque
1
M2×3.5mm,wafer-head,nylon-coated(4)Silver
0.181Nm
(1.85kgf-cm)
3
4
5
6
7
Wheninstalling:Ensurethattheconnectorsareattachedrmly.
2030Buttonboard
Foraccess,removetheseFRUsinorder:
•“2010Buttonbezel”onpage83
•“2020LCDpanel”onpage83
