6 Thomson Gateway GUI
6.2.1 Broadband Connection
Overview

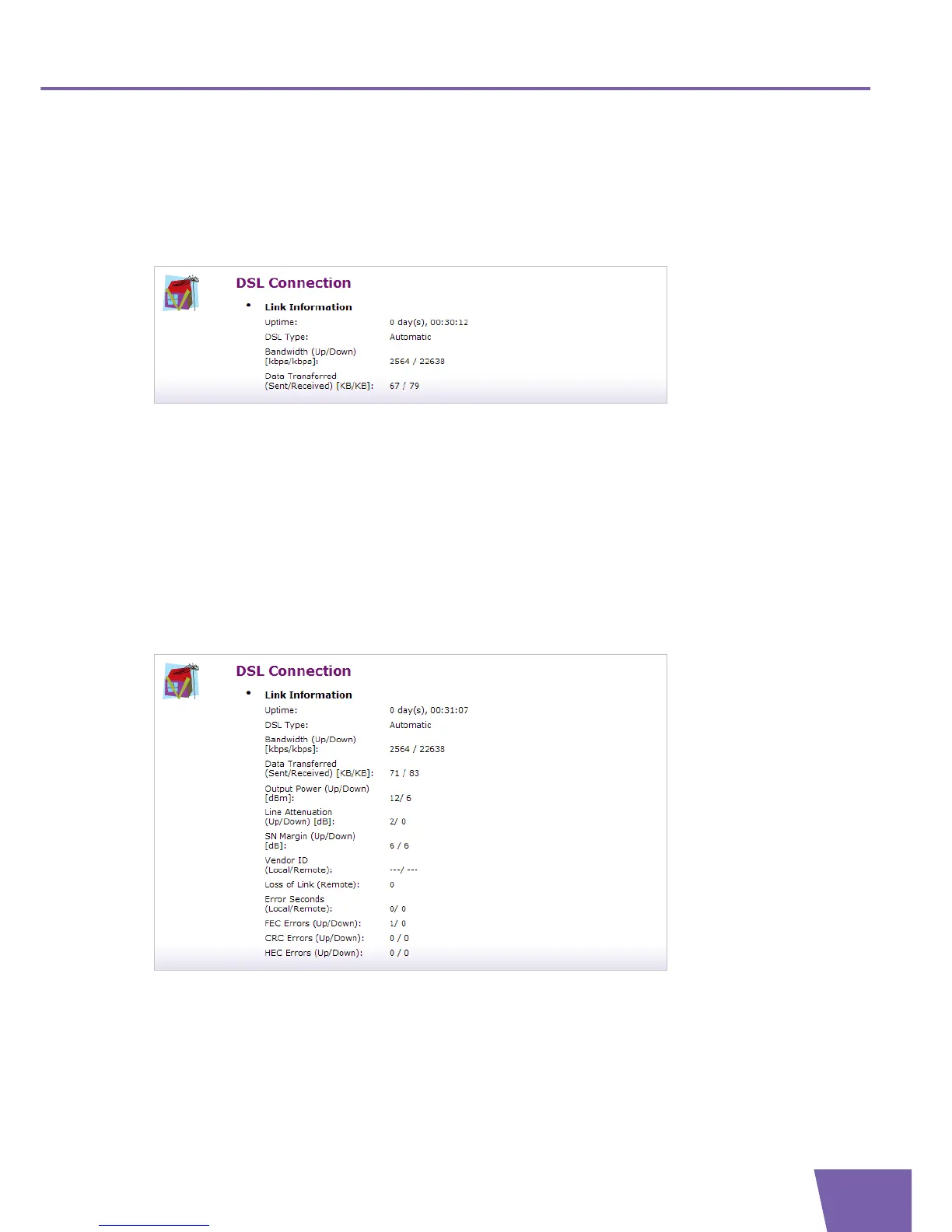

The DSL Connection Overview page displays basic DSL Link Information:
 Uptime:
Time since the DSL link is up for this session.
 DSL Type:
Type (modulation) of DSL line.
 Bandwidth (Up/Down):
Available up- and downstream bandwidth in kilobits per second (kbps).
 Data Transferred (Sent/Received):
Total amount of data sent and received during this session in kilobyte (kB).
Details
The DSL Connection Details page displays all DSL Link Information:
Besides the same information as on the Overview page, the following information is also displayed:
 Output Power (Up/Down) in dBm
The Output Power in dBm (up and downstream direction).
 Line Attenuation (Up/Down) in dB
The Line Attenuation in dB (up and downstream direction).
 SN Margin (Up/Down)
The Signal to Noise (SN) margin in dB (up and downstream direction).
