THORLABS BSC202 User Manual

Appendix A
52 HA0278T Rev H Dec 2016
A.1.6 +5 Volt Supply
A +5 V, 250 mA supply is provided for interfacing to external circuits that require a
power source.
A.2 Rear Panel HANDSET Connector
Provides connection to the MJC001 joystick. The pin functions are detailed in in Fig. A.8

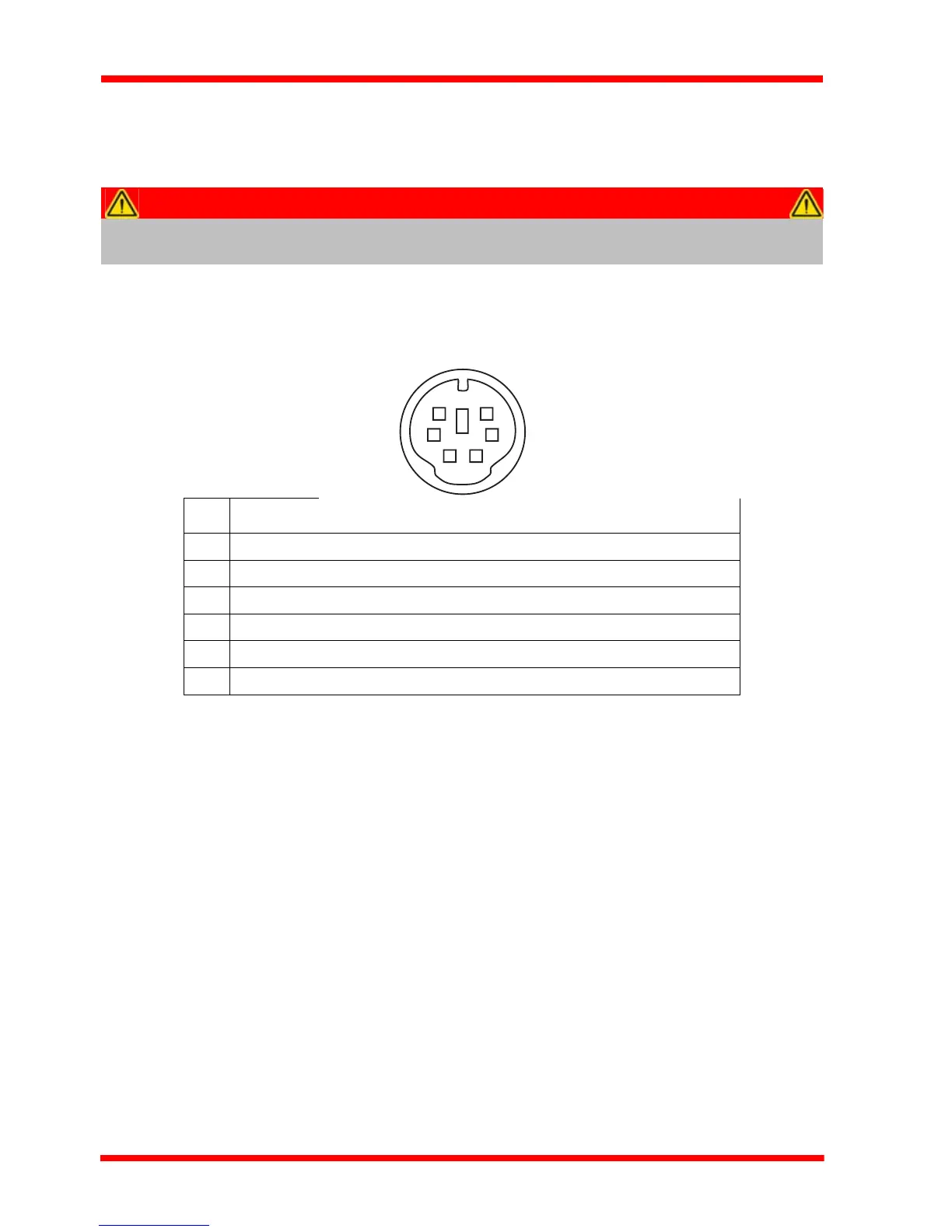

Fig. A.8 HANDSET Connector Pin Identification
Caution
Do not exceed the 250 mA maximum output current. For applications
requiring higher currents an external power supply must be used.
Pin Description
1 RX (controller input)
2 Ground
3 Ground
4 +5V , 100 mA Supply for Joystick
5 TX (controller output)
6 Ground
12
3
5
4
6
